VGA Video Switch with Audio and RS232 Control Options

NTI Part #: SE-15V-2-2C1U-Group

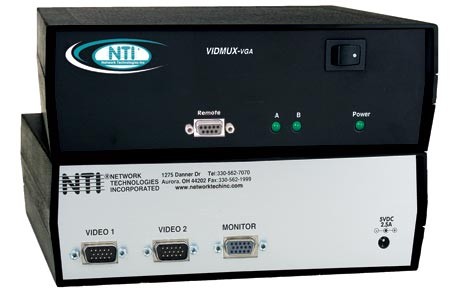

VIDMUX® SE-AV-8-RS (Front & Back)

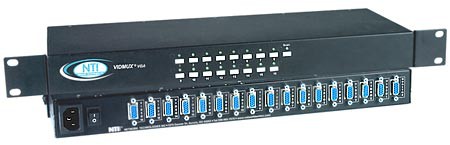

VIDMUX® SE-AV-8-RS (Front & Back)

Additional Images

NTI Part #: SE-15V-2-2C1U-Group
The VIDMUX® VGA Video Switch enables up to 16 PC, MAC or SUN computers with VGA video to be connected to a single monitor, projector or plasma screen. It supports crisp and clear 1900x1200 video resolution and 150 MHz bandwidth.
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant VGA Video Switch with Audio and RS232 Control Options
  • Crestron® I²P Compatible VGA Video Switch with Audio and RS232 Control Options
Scroll Down to Request a Quote
The VIDMUX® VGA video switch enables up to 16 computers to be connected to a single video monitor, projector or LCD/plasma screen.
  • Compatible with PCs, SUNs and MACs with VGA video.
  • Eliminate redundant monitors.
  • Ideal for classrooms and boardrooms.
  • Interconnect NTI switches & splitters for complex applications.
  • Available with audio and/or RS232 control options.
  • Rackmount kit included with the 4/8-port video-only models and the 4/8/16-port audio/video models. Optional rackmount case available for the 16-port video-only switch.

2 Port Models

Monitor
  • Crisp & clear 1900x1200 resolution.
  • SE-15V-2-2C1U: Two male and one female 15-pin HD connectors.
  • SE-15V-2-2U1C: Two female and one male 15-pin HD connectors.
  • Bandwidth is 150 MHz.
Control
  • Touch buttons on front with LED indication of port selection or RS232 control
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
  • Power consumption: 5 W
MTBF
  • SE-15V-2-2C1U: 88,015 hrs
  • SE-15V-2-2U1C: 88,231 hrs
Dimensions
  • WxDxH: 8x6.2x2.6 in (203x157x66 mm)
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Cables
  • 3-foot (0.91-meter) multicoax cable included.
Optional RS232 Controls
  • Control
    • Female DB9 connector.
    • Baud rate 300 through 9600.
    • Address up to 15 units, all of which can be daisy-chained and controlled by one serial port.
    • Local control is not available when "-RS" is specified.
  • Commands
    • RS - causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2.
    • CS - causes one INx/OUTx connection to occur.
    • CA - causes all inputs to connect to specified output.
    • RO - reads what input is connected to specified output.
    • RU - reads size of matrix, reports number of inputs and number of outputs on specified switch.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years.

2 Port-TTL Models

Monitor
  • Crisp & clear 1900x1200 resolution.
  • SE-15V-2-2C1U-TTL: Two male and one female 15-pin HD connectors.
  • SE-15V-2-2U1C-TTL: Two female and one male 15-pin HD connectors.
  • Bandwidth is 150 MHz.
Control
  • Female 9 pin D connector for remote control.
    • Pin 1=Ground.
    • Pin 2=TTL or contact closure signal.
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
  • Power consumption: 5 W
MTBF
  • SE-15V-2-2C1U-TTL: 87,403 hrs
  • SE-15V-2-2U1C-TTL: 87,616 hrs
Dimensions
  • WxDxH: 8x6.2x2.6 in (203x157x66 mm)
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Cables
  • 3-foot (0.91-meter) multicoax cable included.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years.

4-16 Port Models

Monitor
  • Crisp & clear 1900x1200 resolution.
  • Female 15-pin HD connectors.
  • Bandwidth is 150 MHz.
Control
  • Touch buttons on front with LED indication of port selection or RS232 control
Power
  • 110 or 220 VAC at 50 or 60 Hz.
  • Power consumption:
    • 4-port and 8-port: 5 W
    • 16-port: 10 W
MTBF
  • SE-15V-4-L: 82,069 hrs
  • SE-15V-4-RS: 80,252 hrs
  • SE-15V-8-L: 74,482 hrs
  • SE-15V-8-RS: 73,866 hrs
  • SE-15V-16-L: 70,578 hrs
  • SE-15V-16-RS: 71,599 hrs
Dimensions
  • SE-15V-4-L/RS and SE-15V-8-L/RS WxDxH (in):
    • 10.9x6x1.75 (without supplied rackmount kit)
    • 19x6x1.75 (with supplied rackmount kit)
  • SE-AV-4-L/RS and SE-AV-8-L/RS WxDxH (in):
    • 15.3x6x1.75 (without supplied rackmount kit)
    • 19x6x1.75 (with supplied rackmount kit)
  • SE-15V-16-L/RS WxDxH: 10.9x6x3.5 in (277x152x89 mm)
  • SE-15V-16-L/RS-R WxDxH: 19x6x1.75 in (483x152x44 mm)
  • SE-AV-16-L/RS WxDxH (in):
    • 15.3x6x3.5 (without supplied rackmount kit)
    • 19x6x3.5 (with supplied rackmount kit)
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Optional RS232 Controls
  • Control
    • Female DB9 connector.
    • Baud rate 300 through 9600.
    • Address up to 15 units, all of which can be daisy-chained and controlled by one serial port.
    • Local control is not available when "-RS" is specified.
  • Commands
    • RS - causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2.
    • CS - causes one INx/OUTx connection to occur.
    • CA - causes all inputs to connect to specified output.
    • RO - reads what input is connected to specified output.
    • RU - reads size of matrix, reports number of inputs and number of outputs on specified switch.
Optional Audio
  • 3.5 mm stereo audio jacks for inputs and output.
  • Maximum input/output levels: 4Vp-p (line level).
  • Input impedance: 10k Ohms.
  • Output impedance: 32 Ohms.
  • Signal-to-Noise Ration (SNR): 87 dBA
  • Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB.
  • Total Harmonic Distortion + Noise: 0.02% at 1 kHz.
  • Requires powered speakers or headphones.
  • CD quality audio output.
Optional Rackmount
  • The 16-port switch is available in a rackmount enclosure.
  • Dimensions WxDxH: 19x6x1.75 in (483x152x44 mm)
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years.

Application Drawings

  • VGA Video Switch with Audio and RS232 Control Options
    VGA Video Switch with Audio and RS232 Control Options

Application Notes

  • Switched and Local Display of 3 Computers
    Loading image...
    Each user can locally control and view their own computer. A remote monitor can display the output from any attached video inputs.
User Manual:
Data Sheet:

(0)VGA Video Switches

NTI Part # Description Number of Ports Qty
SE-15V-2-2C1U Switch 1 VGA monitor between 2 computers 2
SE-15V-2-2U1C Switch 1 computer between 2 VGA monitors 2
SE-15V-2-2C1U-TTL Switch 1 VGA monitor between 2 computers 2
SE-15V-2-2U1C-TTL Switch 1 computer between 2 VGA monitors 2
SE-15V-4-L Switch 1 VGA monitor between 4 computers 4
SE-15V-8-L Switch 1 VGA monitor between 8 computers 8
SE-15V-16-L Switch 1 VGA monitor between 16 computers 16
SE-15V-16-L-R Switch 1 VGA monitor between 16 computers, rackmount 16

(0)VGA Video Switch with RS232 Control

NTI Part # Description Number of Ports Qty
SE-15V-2-2C1U-RS Switch 1 VGA monitor between 2 computers, RS232 control 2
SE-15V-2-2U1C-RS Switch 1 computer between 2 VGA monitors, RS232 control 2
SE-15V-4-RS Switch 1 VGA monitor between 4 computers, RS232 control 4
SE-15V-8-RS Switch 1 VGA monitor between 8 computers, RS232 control 8
SE-15V-16-RS Switch 1 VGA monitor between 16 computers, RS232 control 16
SE-15V-16-RS-R Switch 1 VGA monitor between 16 computers, RS232 control, rackmount 16

(0)Audio / Video Switches

NTI Part # Description Number of Ports Qty
SE-AV-4-L Switch 1 VGA monitor and a set of speakers between 4 computers 4
SE-AV-8-L Switch 1 VGA monitor and a set of speakers between 8 computers 8
SE-AV-16-L Switch 1 VGA monitor and a set of speakers between 16 computers 16

(0)Audio / Video Switches with RS232 Control

NTI Part # Description Number of Ports Qty
SE-AV-4-RS Switch 1 VGA monitor and a set of speakers between 4 computers 4
SE-AV-8-RS Switch 1 VGA monitor and a set of speakers between 8 computers 8
SE-AV-16-RS Switch 1 VGA monitor and a set of speakers between 16 computers 16
