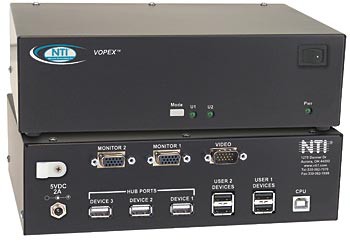

VOPEX-USBV-2 (Front & Back)

Additional Images/Videos

VGA USB KVM Splitter

NTI Part #: VOPEX-USBV-2-Group

The VOPEX® USB KVM splitter with built-in USB hub allows up to four users (four USB keyboards, USB mice and VGA monitors) to access one USB enabled computer and up to three USB devices (printers, scanners, security cameras, etc.).

Also known as: USB splitter and hub, built-in hub, USB hub, peripheral device hub and splitter, keyboard monitor mouse splitter, USB keyboard splitter, reverse KVM switch.

Designed and Manufactured in the U.S.A.
ROHS Compliant VGA USB KVM Splitter
CE Compliant VGA USB KVM Splitter

Scroll Down to Get Quote

Overview

The VOPEX® VGA USB KVM Splitter with built-in USB hub allows up to four users (four USB keyboards, USB mice and VGA monitors) to access one USB computer (PC, SUN, MAC) and up to three USB devices (printers, scanners, security cameras, etc).

Compatible with USB computers (PC, SUN, MAC).
Built-in hub for multiple USB devices.
Available with optional stereo audio.
Access one computer from multiple locations.
Multiple users can enter data into the same program.
Compliant with USB 2.0 (low/full speed) standards.
Supports Plug-n-Play specifications.
Supports international keyboard layouts in auto-detection mode.
High quality, rugged steel construction with durable powder coat finish.
Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2.

Specifications

Hosts

Male 15-pin HD connector.
Female USB Type B connector.
Supports a USB computer (PC, SUN, MAC).
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016, Solaris, Linux, FreeBSD, and MAC OS 9/10.

Monitor

Female 15-pin HD connectors.
Crisp and clear 1920x1200 resolution.
Bandwidth is 150 MHz.

Devices

Female USB Type A connectors for connection of keyboards and mice.
- Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse ^®, Logitech Cordless Elite Duo keyboard and mouse, Gyration keyboard/mouse and Crystal Vision keyboard with touchpad.
- Keyboard and mouse are hot-pluggable.
Three female USB Type A connectors for connection of USB peripheral devices (printers, scanners, security cameras, bar code scanners, etc.).
- Use to connect Motorola Symbol LS3408 bar code scanners.
- Does not support USB touchscreen monitors.
Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.

Cables

One 3-foot female 15HD to male 15HD cable included.
One 1-meter male USB Type B to male USB Type A cable included.

Optional Audio

3.5 mm stereo audio jacks.
Frequency response: 20 Hz to 20 kHz +/- 1dB.
Total harmonic distortion (THD): 0.012%.
Stereo crosstalk: -82 dB.
Input impedance: 10k Ohms.
CD quality audio output.
Requires powered speakers.

Power

100 to 240 VAC at 50 or 60 Hz via AC adapter.
Country-specific AC adapter included

MTBF

VOPEX-USBV-2: 79,077 hrs

Dimensions

WxDxH: 8.5x6.0x2.6 in (216x152x66 mm)

Environmental

Operating temperature: 32 to 100°F (0 to 38°C).
Storage temperature: -20 to 140°F (-30 to 60°C).
Operating and storage relative humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

CE, RoHS
TAA compliant

Warranty

Two years.

Control Methods

Press Mode button to cycle through all four modes. LEDs indicate which mode is selected.
User 1 Mode - Only User 1 can type or move the mouse.
User 2 Mode - Only User 2 can type or move the mouse.
User 3 Mode - Only User 3 can type or move the mouse.
User 4 Mode - Only User 4 can type or move the mouse.
Inst Mode - Keyboard or mouse activates immediately.
Delay Mode - Locked out user must wait five seconds after last keystroke or mouse movement occurs on active user.

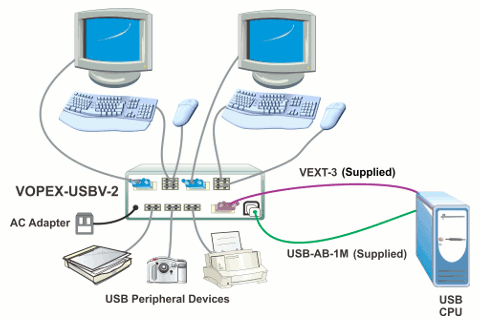

Application Drawings

VGA USB KVM Splitter

Application Notes

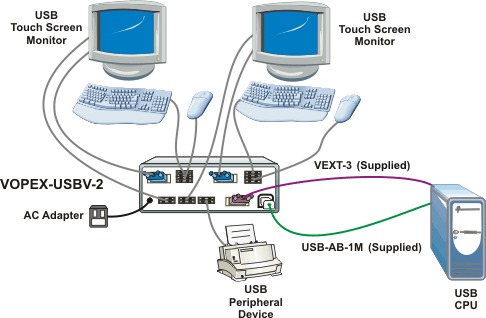

Connect USB Touch Screen Monitors Using the USB Hub Ports

The VOPEX-USBV-2 USB KVM splitter with built-in USB hub allows two users with USB touchscreen monitors, USB keyboards, and USB mice to access one USB-enabled computer and one USB device (printer, scanner, security camera, etc.). Connect the USB touch screen monitor into one of the USB hub ports and into one of the VGA monitor output ports of the splitter.

Downloads

Data Sheet:

VGA USB KVM Splitter 425 KB

User Manual:

VOPEX-USBV-2/4 - Installation and Operation Manual 428 KB
