4K 18Gbps HDMI Video Splitter: 4-Port

NTI Part #: VOPEX-4K18GB-4-Group

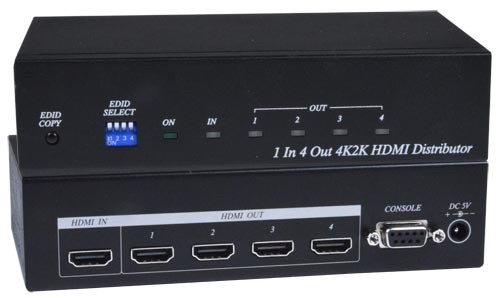

VOPEX-4K18GB-4 (Front & Back)

NTI Part #: VOPEX-4K18GB-4-Group

The VOPEX® 4K 18Gbps HDMI Splitter simultaneously displays the same Ultra-HD 4Kx2K 60Hz 4:4:4 image from one 18Gbps HDMI video source to four displays.

Resolutions to Ultra-HD 4Kx2K 60Hz 4:4:4
18Gbps bandwidth
HDMI 2.0

ROHS Compliant 4K 18Gbps HDMI Video Splitter: 4-Port
4K 18Gbps HDMI Video Splitter: 4-PortDigital Signage Product
CE Compliant 4K 18Gbps HDMI Video Splitter: 4-Port

Scroll Down to Get Quote

Overview

The VOPEX® 4K 18Gbps HDMI Splitter simultaneously displays the same Ultra-HD 4Kx2K 60Hz 4:4:4 image from one 18Gbps HDMI video source to four displays.

Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @60Hz YUV 4:4:4) and HDTV resolutions to 1080p.
HDMI features supported:
- HDMI 2.0
- RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
- Dolby TrueHD, LPCM 7.1, and DTS-HD Master Audio
- Up to 48-bit Deep Color
- Bandwidth up to 600 MHz (18Gbps)
- 3D
- HDR
HDCP 2.2 compliant.
Built-in EDID learning for the support of any HDMI display device.
Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple displays is needed.

Specifications

Video Input

One female HDMI Type A connector for video source.
Supports HDCP 2.2

Video Output

Four female HDMI Type A connectors for displays.
Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @60Hz YUV 4:4:4) and HDTV resolutions to 1080p.
DIP switch on front panel for EDID learning.
Supports HDCP 2.2

RS232

Female DB9 RS232 port for firmware updates.

Power

Input: 100 to 240 VAC at 50 or 60Hz via AC adapter (included).
Output: 5 VDC, 2A
Power consumption: 5W

Dimensions

WxDxH (in):6.57x3.96x1.57 (167x101x40 mm)

Environmental

Operating temperature: 32 to 140°F (0 to 60°C).
Storage temperature: -4 to 185°F (-20 to 85°C).
Operating and storage relative humidity: up to 95% non-condensing RH.

Regulatory Approval

CE, RoHS

Warranty

Two years

Cables

Interface cables between the video source/displays and the splitter are required for proper operation.
- Supports cable lengths to 20 feet for 4K@60Hz resolutions, and lengths to 50 feet for 1080p@60Hz using passive HDMI cables.
  - Longer cables can be used provided they have a built-in video equalizer (also known as "active HDMI cables").
Use HD-xx-MM cable to connect an HDMI source or display.
- HD-3/6/10/15/20-MM supports resolutions to 4K@60Hz.
- HD-30/50-MM supports resolutions to 1080p@60Hz.
Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display (not included).
- HD-ACT-20/25/30/40/50/60-MM supports resolutions to 4K@60Hz.
- HD-ACT-75/100-MM supports resolutions to 1080p@60Hz.
Use DVI-HD-xM-MM to connect a DVI source or display.
- Supports resolutions to 1080p@60Hz.
Cables not included.

Application Drawings

4K 18Gbps HDMI Video Splitter: 4-Port

Downloads

Data Sheet:

4K 18Gbps HDMI Video Splitter: 4-Port 163 KB

User Manual:

VOPEX-4K18GB-4 – Installation and Operation Manual 279 KB

(0)4K 18Gbps HDMI Video Splitter: 4-Port

NTI Part #	Description	Qty
VOPEX-4K18GB-4	4K 60Hz 4:4:4 18Gbps HDMI Splitter: 4-Port
