CAT6 Patch Cord Cables

VPI's VPCAT™ CAT6 Cable is used in network applications such as 10Base-T, 100Base-T, 1000Base-T Ethernet technology to 100 meters (328 feet), and have been designed specifically for Gigabit Ethernet applications (Gigabit over copper). They perform at high-data transfer rates, and work with ATM and gigabit speed products. These cables deliver improved performance over standard Cat5e cables.

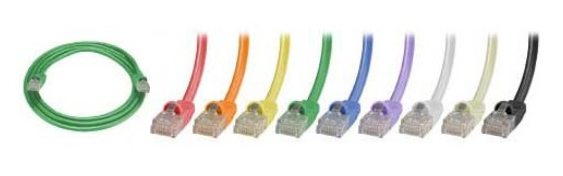

This is the newest fully-approved system-standard Cat6 Unshielded Twisted Pair (UTP) cable. Cat 6 is completely backward-compatible with current Cat5e equipment. Our Cat 6 Cables are composed of 4 pairs 24 AWG stranded conductors with PVC jackets. Conductors are wired to gold plated RJ45 plugs in accordance with the TIA/EIA 568B standard (Telephone Industry Association/Electronics Industry Association.) Available in nine colors. Boots match cable color. Custom modular cable assemblies are available.

• Used to connect your network card to any of the following:
  • 10GBASE-T Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-T Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
• Category 6 UTP cable wired straight through. 24 AWG, gold plated 8x8 (RJ45) plugs.

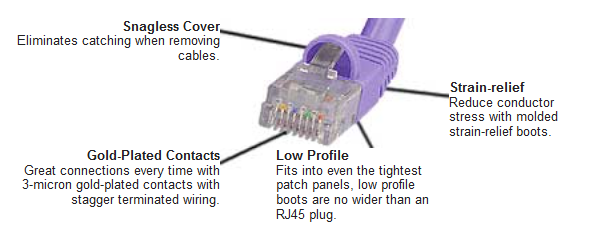

• Patch cables & boots are the same color; boots are snagless.
• Patch cables have stranded copper conductors for flexibility - great for frequent changes that occur at the wall outlet or patch panel.
