Large Enterprise Environment Monitoring System

NTI Part #: E-16D-Group
E-16D
E-16D

Additional Images/Videos

NTI Part #: E-16D-Group
The E-16D supports 16 external configurable sensors, 8 digital inputs, and 4 output relays for control of external devices. The system also includes three internal sensors: temperature, humidity and power. It features 4 USB ports for USB modems or USB flash drives. Linux inside.
Also known as: Remote Environment Monitoring System, monitor networking closets, server room alert, IP temperature sensor, humidity sensor, computer room humidity probe.
Product Highlights
  • 16 external configurable sensors, 8 digital inputs, 4 output relays
  • Configure Smart Alerts for different event combinations
  • User-programmable IP camera snapshots
  • Linux inside
  • Connect to an Ethernet network.
  • Cascade up to 5 units via RS485 serial &/or Ethernet connection (1 master, 4 slaves)
  • Triggered Events can send SSH commands to soft shutdown or reboot machines
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant Large Enterprise Environment Monitoring System
  • CE Compliant Large Enterprise Environment Monitoring System
Scroll Down to Get Quote

Overview

The ENVIROMUX® Enterprise Environment Monitoring System (EMS) monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, LEDs, alarm beacon, siren, web page, network management (SNMP), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via external USB 3G modem).


The system includes three internal sensors: temperature, humidity and power. It also supports 16 external configurable sensors, eight digital input sensors, and four output relays for control of external devices.

  • Monitor and manage server room environmental and security conditions over IP.
  • Sensors supported by a single E-16D:
    • 16 external configurable sensors
    • 8 digital inputs sensitive to contact closure
    • 3 internal sensors – temperature, humidity, power
    • 8 Remote Temperature/Humidity Sensors over IP
      • E-MICRO-T: 1 integrated temperature sensor, 2 RJ45 ports for external temperature/humidity sensors, 2 digital inputs sensitive to contact closure, dual DC power (dual redundancy).
      • E-MICRO-TRHP: 1 integrated temperature/humidity combination sensor, 2 RJ45 ports for external temperature/humidity sensors, 2 digital inputs sensitive to contact closure, built-in Power over Ethernet (POE), dual DC power (triple redundancy).
    • 4 Remote 1-Wire Sensors over IP
      • E-1W(P): two RJ11 connectors for daisy chaining many 1-wire temperature/humidity/dew point, thermocouple, or digital input expanders in any combination (up to 24 single-reading 1-wire sensors); two digital inputs sensitive to contact closure; dual DC power; optional Power over Ethernet (POE).
  • Four output relays for control of external devices.
    • Relay activates upon alarm or via the user interface.
    • Control output relays via SNMP SET commands to power on/off external devices.
  • Supports NTI's IP network video cameras for live view of any facility.
    • One integrated view – see different Web cameras side-by-side with physical and environmental parameters.
    • Any programmed event can trigger a snapshot from an IP camera.
  • Monitor (ping) up to 64 IP network devices.
    • Alerts are sent if devices are not responding
  • Linux inside.
  • Create multiple alerts for any installed sensor.
  • Sensor conditions (events) can be configured to trigger alerts by themselves, and/or be used in combination with other events to trigger Smart Alerts.
    • Configure up to 50 events.
      • Setup SSH commands to be sent when events are triggered to soft shutdown or reboot machines.
    • Up to 20 Smart Alerts can be configured to use different event combinations to send alert messages.
  • View entries stored in the system logs.
    • Event log records system events such as alerts, user login/logout, failed email messages, etc.
    • Data log records samples of sensor readings. User specified sampling time period.
    • With E-16D, both the event log and the data log store up to 1,000 entries.
    • With E-16DEL, up to 1,200,000 data log entries and 3,000 event log entries are stored.
      • 256 MB non-volatile memory - both the data log and event log persist after power cycle.
  • Automatically configures network settings received from a connected DHCP server.
    • If a DHCP server is not found, the default static IP address will be used.
  • Integrates with various Open Source monitoring packages - Nagios and MRTG.
    • The unit can be polled via SNMP.
  • USB ports for connecting USB modem or for downloading log data to USB flash drive.
  • Internal battery backup.
    • Alerts are sent when there is a power outage and when power returns.
  • Available with optional dual power for connection to two separate power sources.
  • Up to five units can be connected via Ethernet connection or using CAT5 expansion cables to increase the number of sensors connected.
    • Cascade up to four E-2D/5D/16D units as slaves to one E-2D/5D/16D master unit via Ethernet connection.
      • Each master and slave unit needs its own unique IP address.
    • Cascade up to four E-16D units as slaves to one E-16D master unit using CAT5/5e/6 patch cables with RJ45 connectors wired straight through.
      • Each slave unit needs its own unique RS485 address value that can range from 1-255.
    • Uses a single Web interface for all systems/sensors connected.
  • Available with optional 48VDC or 24VDC power.
  • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 E-2D/5D/16D, E-SEMS-16(U), IPDU-S4/8 units and all connected sensors.
  • 1RU rack mount case is standard.
    • The ENVIROMUX system can be mounted so that the sensor connectors are facing the front or back of the rack.
  • Security: HTTPS, SSHv2, SSLv3, IP Filtering, LDAPv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
  • Multi-language support – English, German, Chinese, and Japanese.
  • Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.
  • Use the E-16D with a wireless router and Wi-Fi Range Extender to create a Wireless Environment Monitoring System.
    • Configure, monitor, and receive alerts without the use of a wired network connection.

Specifications



1. Power Port
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
  • Power consumption: 35W
  • Connection for Earth Ground.
  • Fuse protection.
  • Optional 48VDC power (not shown).
    • Accepts 36~72VDC (48VDC nominal).
  • Optional 24VDC power (not shown).
    • Accepts 20~32VDC (24VDC nominal).
  • Optional dual power (not shown).
    • Available on AC, 48VDC, and 24VDC models.
    • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source before switching to the battery backup.
2. RJ45 Sensor Ports
  • Sixteen RJ45 modular jacks for connecting NTI temperature, humidity, temperature/humidity, liquid detection, smoke detection, glass break, vibration and motion sensors.
3. Digital Inputs
  • Eight screw terminals pairs for connecting dry contact devices.
  • Input voltage: 0VDC to +25VDC.
  • Provides +12VDC, 50mA for terminals 1-7, and +12VDC, 350mA for terminal 8 only.
  • Fuse protection.
4. Digital Outputs
  • Four screw terminals pairs.
  • Potential-free relay switch contacts.
  • Normally open / normally closed connection points.
  • Maximum switching load: 0.5A at 100VAC, 1A at 30VDC, 0.5A at 48VDC.
5. Beacon Port
  • One screw terminal pair.
  • Provides +12VDC, 180 mA to supply an alarm beacon.
  • Fuse protection
6. Siren Port
  • One screw terminal pair.
  • Provides +12VDC, 180 mA to supply a siren.
  • Fuse protection
7. AUX Power
  • One screw terminal pair.
  • Provides 12VDC, 150mA.
8. USB Device Ports
  • Four female USB Type A connectors for connecting USB modem or for downloading log data to USB flash drive.
    • Two USB ports on front panel and 2 on back panel.
9. USB Console Port
  • One female USB Type B connector for connecting a PC for serial terminal access.
10. RS232 (DCS) Port
  • One female RJ45 serial port for terminal access.
11. Ethernet Port
  • One 10/100 Base-T Ethernet port with RJ45 Ethernet connector.
    • Supports full- and half-duplex.
12. RS232 AUX Port
  • One RJ45 port for connecting a serial GSM modem or a remote serially-controlled device.
13. Cascade In/Out Ports
  • Two RJ45 jacks.
  • A maximum of 5 systems can be used in a cascaded configuration via RS485 to increase the number of sensor ports (1 master, 4 slaves).
    • Each slave unit needs its own unique RS485 address value that can range from 1-255.
    • Use CAT5/5e/6 patch cables with RJ45 connectors wired straight through
    • Up to 4,000 feet between the master unit and the slave unit.

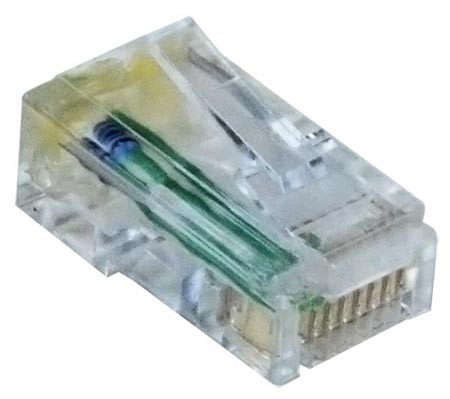

    • The last slave must have a terminating plug (E-TRMPLG, not included) in the empty socket.
  • Uses a single Web interface for all systems connected.
Protocols
  • HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSHv2, SSLv3, TLS v1.2, LDAPv3, XOAUTH2, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour, IPV6, WAP 2.0, RADIUS
    • Support for XOAUTH2 provides higher security authentication for email accounts (e.g. Gmail).
  • Compatible with any SNMP management software.
    • The unit can be polled via SNMP.
  • Operates and configures via HTTP/HTTPS web page, Telnet, SSH, or USB/RJ45 serial interface.
    • Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC.
    • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • An IP address can be assigned to the E-16D automatically by a DHCP server.
  • Generates SNMP traps, email alerts, syslog messages, and SMS messages (via USB 3G modem).
    • Alerts are posted in event log, which is accessible through Web user interface.
    • Email alerts can be sent to 17 addresses.
      • Users can configure the schedule for when they will be alerted, as well as customize the e-mail subject line for each sensor alert.
    • SNMP traps have unique OID's (Object Identifiers) for each sensor.
  • Supports HTTP REST API to poll sensor data with response in JSON format.
Internal Temperature Sensor
  • For monitoring the temperature inside the E-16D case.
    • Use an external temperature sensor for monitoring ambient air temperature.
  • Applications from 32 to 104°F (0 to 40°C).
  • Accurate to within ±1.35°F (±0.75°C).
Internal Humidity Sensor
  • For monitoring the humidity inside the E-16D case.
    • Use an external humidity sensor for monitoring humidity in the air.
  • Applications from 20% to 80% relative humidity at temperatures between 32 to 104°F (0 to 40°C).
  • Accurate to within ±5% relative humidity.
Internal Power Sensor
  • Measures mains voltage: 0 to 255 VAC
  • Measures battery voltage: 0 to 20 VDC
  • Measures voltage on 24VDC models: 20 to 32VDC
  • Measures voltage on 48VDC models: 36 to 72VDC
  • Alerts are sent when there is a power outage and when power returns.
Back-up Battery

MTBF
NTI Part # Hours
E-16D 89,884
E-16DDP 107,046
E-16D-24V 115,143
E-16D-24VDP 121,484
E-16D-48V 115,143
E-16D-48VDP 121,484
E-16DEL 89,884
Dimensions
  • WxDxH (all options):
    • Without supplied rackmount kit: 16.19x10.01x1.75"
    • With supplied rackmount kit: 19x10.01x1.75"
Weight
  • E-16D: 9.5 lb (4.31 kg).
  • E-16D-48VDP: 9.6 lbs (4.36 kg).
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating /Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years

Control Methods

Web Interface (view product demo)
  • Configuration can be done over the Internet/LAN or 3G data connection via Web page.
    • 3G data connection requires a USB 3G modem with a data plan.
      • Email and SMS alerts can be sent through the modem instead of the Ethernet connection.
  • Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC.
  • Configure sensor thresholds, alarm methods, formats of alerts, and system data log.
    • Customize SMS messages and email subject headers for sensor alerts.
  • View/edit sensors' current values, thresholds and alert statuses.
    • All sensors connected, including up to 8 Remote Temperature/Humidity Sensors over IP, to the E-16D can be viewed on one summary page.
    • All sensors in alert can be quickly viewed on the alert summary page to enable timely responses.
    • User configurable settings allow sensors to return to normal status when alert condition clears, without manually acknowledging/dismissing the alert.
  • View entries stored in the system logs.
    • Event log records system events such as alerts, user login/logout, failed email messages, etc.
    • Data log records samples of sensor readings. User specified sampling time period.
    • With E-16D, both the event log and the data log store up to 1,000 entries.
    • With E-16DEL, up to 1,200,000 data log entries and 3,000 event log entries are stored.
      • 256 MB non-volatile memory – both the data log and event log persist after power cycle.
    • The log can be downloaded as a tab-delimited plain text file.
  • Configure IP information (address, subnet mask, default gateway, DNS, etc.), user administrative settings, and data logging settings.
  • Upload custom x509 certificates.
  • Up to 16 users can access the web page at one time.
  • Permissions, schedule and alert methods are configurable for each user.
  • Configure up to 50 sensor conditions (events).
  • Configure up to 20 Smart Alerts to use different event combinations to send alert messages.
  • Up to five units can be used together to increase the number of sensors connected.
    • Cascade up to four E-2D/5D/16D units as slaves to one E-2D/5D/16D master unit via Ethernet connection.
      • Each master and slave unit needs its own unique IP address.
      • IP sensors can only be connected to a master unit.
    • E-16D slave units can also be configured as RS485 local slave units using CAT5/5e/6 patch cables with RJ45 connectors wired straight through.
      • Each slave unit needs its own unique RS485 address value that can range from 1-255.
      • The last slave must have a terminating plug (not included) in the empty socket.
    • Uses a single Web interface for all systems/sensors connected.
  • Multi-language support – English, German, Chinese, and Japanese.

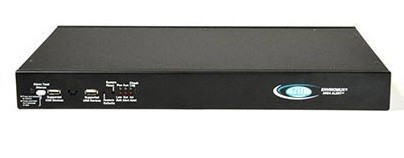

Front Panel Interface
  • LEDs indicate the following:
    • "INT ALERT" – internal sensor goes out of range of a configurable threshold.
    • "EXT ALERT" – external sensor goes out of range of a configurable threshold.
    • "LOW BAT" – backup battery is low.
    • "CHECK LOG" – message is posted to the log.
    • "AUX" – indicates Auxiliary device is powered.
    • "PWR" – indicates system is powered.
  • Alarm Test/Silence button – use to test or silence the alarm connected to the siren terminals
  • Restore Defaults button – use to manually restore the E-16D back to factory settings.
  • System Reset button – use to manually reboot/restart the firmware for the E-16D.
Serial Interface / Telnet / SSH
  • Configure, control and monitor over the text-based menu system accessible via USB console port, RJ45 serial port, Telnet, and SSH.
    • Serial baud rate: 9,600 to 115,200bps.
    • Data format: 1 start bit, 8 data bits, no parity, 1 stop bit.
  • Access is controlled via username/password.
    • System stores encrypted login information.
  • Two user levels: user and administrator.
  • Multi-language support – English, German, Chinese, and Japanese.
  • Telnet and SSH can be enabled or disabled.
    • Network Security Enhancement: Disabling Telnet can prevent unsecure text menu access to the E-16D.
Network Operation
  • Automatically configures network settings received from a connected DHCP server.
    • If a DHCP server is not found, the default static IP address will be used.
  • SNMP support, allowing integration into network management platforms.
    • Control output relays via SNMP SET commands to power on/off external devices.
      • SET command can be sent from SNMP software, MIB browser (Windows), or command line (Linux).
  • Updating the system firmware.
Open Source Monitoring Integration
Optional Management Software
  • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 E-2D/5D/16D, E-MICRO-T(RHP), E-1W(P), E-SEMS-16(U), IPDU-S4/8 units and all connected sensors.
  • Push configuration changes to multiple connected units in a group at once.
    • E.g. new users, mail server, network settings, security settings, system settings, etc.
Mobile Summary Page (view product demo)
  • View summary page on mobile devices – smartphones, tablets, etc.
  • Summary page lists all connected sensors' current values and alert statuses.
Optional Android App for Tablet/Phone
  • Optional Android App provides an easy-to-use interface for monitoring and displaying sensor statuses from one E-2D/5D/16D.

Application Drawings

  • Large Enterprise Environment Monitoring System
    Large Enterprise Environment Monitoring System
  • Prevent Damage to Equipment & Downtime with the E-16D
    Loading image...
    The E-16D monitors the parameters of many connected sensors used for detecting environmental conditions and sends out alerts to personnel when a sensor goes out of range of a configurable threshold. Alerts are sent via various communication channels such as: email, alarm beacon, siren, web page, network management (SNMP), voice phone calls, and SMS messages. Rapid changes in temperature and humidity, water leaks, power outages, human error, and invasive intrusions are the most common environmental threats faced by businesses. The E-16D reduces the unnecessary costs of expensive hardware replacement or unplanned downtime.

Application Notes

  • Use a Single USB 3G Modem to Send Out SMS Alerts from Multiple ENVIROMUX Units
    Loading image...
    Set up the ENVIROMUX-3GU-5 on one ENVIROMUX unit. Access the web interface of the ENVIROMUX equipped with the modem, and click on Administration > Enterprise, and expand SMS Relay. Select the checkbox for "Enable Server"; this only applies to the ENVIROMUX unit with the modem. Access the other ENVIROMUX units' web interface (no modem) and navigate to SMS Relay. Select the checkbox for "Use remote unit to send SMS" and in the textbox, "Remote unit IP Address," type in the IP address of the ENVIROMUX unit with the ENVIROMUX-3GU-5. Configure any desired SMS alert settings on all ENVIROMUX units. Any SMS alert messages triggered on the other ENVIROMUX units will be sent through the Ethernet to the main SMS alert unit, which will then use the ENVIROMUX-3GU-5 to send the messages.

    This reduces the number of ENVIROMUX-3GU-5 units needed to support SMS alerts when using multiple ENVIROMUX units. This SMS relay function is not restricted to identical units and can be integrated with any number and type of ENVIROMUX-2D/5D/16D units. No management software is required to set up the SMS relay feature.
  • Use Smart Alerts to Inhibit Motion Sensor When Entering a Room Using a Keypad
    Loading image...
    Events and Smart Alerts can be set-up to enable a configuration that will allow the disabling of motion sensors during the time an operator enters an enclosed area via a keypad, but will re-arm the motion sensors when he exits the area and re-enters the keypad code. This requires the keypad output relay, which will be programmed in "Start/Stop" mode instead of timed delay, to be connected as a digital input to the ENVIROMUX and an output relay from the ENVIROMUX that will activate the door strike when the correct code is entered.

    For details on how to set up this configuration, refer to the Knowledge Base entry.
  • How to Connect Multiple Smoke Detectors to a Single E-2D/5D/16D Using the Digital I/O Expander.
    Loading image...

    By connecting the E-DI16DO16 Digital Input/Open Collector Output Expander to the ENVIROMUX unit's RJ45 sensor port using up to 500 feet of CAT5/5e/6 cable, up to 16 additional smoke detectors can be added to each expander. Since the E-DI16DO16 does not supply power, the E-SDS-CELCP Low-Cost Smoke Detector Sensor (CE) with an included power supply should be connected to the expander using 22-gauge 2-wire sensor cables. Based on the desired number of smoke detectors, more expanders can be connected to the ENVIROMUX unit as long as there are RJ45 sensor ports available.


    Other self-powered sensors, such as the E-IMD-P Infrared Motion Sensor and E-CMD-P Carbon Monoxide Detector will also work with this set-up. Each sensor can be located up to 1000 ft away from the expander.


    Note: Since the ENVIROMUX unit does not provide power to the smoke detector, it cannot remotely reset the smoke detector power when connected through the E-DI16DO16. Unlatch the activated smoke detector by simply unplugging and replugging the power supply.


    Note: When using the E-DI16DOR16 Digital Input/Normally-Open Relay Contact Output Expander, the power supply for the smoke detectors can be run through a relay contact on the expander. This allows users to remotely power cycle if needed.


    Note: The 12V/1A power supply included with the E-SDS-CELCP can provide power to additional E-SDS-CELC units through daisy chaining. The E-SDS-CELC(P) has a minimum operating voltage of 9V. As there will be power loss with this configuration, attention must be given to the gauge and length of the power conductors used to determine the number of units it can support and how far the units can go. Caution: If the single power supply fails, none of the smoke detectors in the string will work. Additional power supplies may be required to assure protection of the area should a power supply fail.

  • Alert Notifications Sent via Email, LEDs, Web Page, SMS Messages, SNMP, etc.
    Loading image...
    The ENVIROMUX Server Environment Monitoring System gives total security to IT centers by providing early warnings about potential problems via email, LEDs, alarm beacon, siren, web page, network management (SNMP), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via external USB 3G modem).
  • How to Connect Remote Temperature/Humidity Sensors over IP to the E-16D
    Loading image...
    The E-MICRO-T(RHP) Remote Temperature/Humidity Sensors over IP can function as an IP-connected remote sensor for the E-16D. To add a remote IP sensor, access the web interface and select Monitoring > IP Sensors. Click on the "Add New IP Sensor" link on the bottom and key in the description and IP address of the E-MICRO-T(RHP) to connect it to the E-16D. Up to eight remote IP sensors can be connected. All sensors connected, including the Remote Temperature/Humidity Sensors over IP, to the ENVIROMUX-16D can be viewed on one summary page. In addition to 8 E-MICRO IP sensors, the E-16D also supports 4 E-1W Remote 1-Wire Temperature/Humidity Sensors over IP.
  • Send Email Alerts from a Private Network to a Public Mail Relay Server
    Loading image...
    The ENVIROMUX-16D present on a 10.x.x.x network is capable of sending email alerts to a public 153.x.x.x mail relay server.
    Note: to use a DSL type router in this set up, set a gateway in the network settings of the ENVIROMUX-16D to allow traffic to be sent to the 153.x.x.x network. The IP address of the router on the private 10.x.x.x network is the gateway.
  • Monitor Telect™ GMT Fuse Panels with Relay Outputs
    Loading image...

    The ENVIROMUX Enterprise Environment Monitoring System monitors Telect™ GMT fuse panel relay outputs and sends alerts in case of power loss, fuse break, or bay alarms. Configure digital inputs as "normally open" for proper operation.

  • E-2D/5D/16D Supports the RADIUS Protocol
    Loading image...
    The E-2D Small Enterprise Environment Monitoring System supports the RADIUS protocol. Remote Authentication Dial-In User Service (RADIUS) is a client/server protocol that provides centralized authentication, authorization, and accounting management for users who connect and use a network service. When a user accesses the ENVIROMUX system, an authentication request is sent to the RADIUS server to determine the user's permission level and authorizes access.
  • Leak Location Detection
    Loading image...
    When connected to an ENVIROMUX® E-16D, the E-ALDS Addressable Leak Detection Sensor monitors up to 4,000 feet of E-LDDC-x Liquid Location Detection Sensor Cable, and detects the specific location of liquid presence and if there is a break in the cable. In this example, water is detected at 714.3 feet.

CAD Drawings

  • E-16D
    Loading image...

Downloads

Video:
Data Sheet:
How To:
User Manual:
Product Perspective:
Firmware:
Demonstration:
Installation Guide:
3D Model:
Knowledge Base:
Software and Applications:

  • "Five years ago, we ran into trouble regarding instability of our source voltage and sometimes failing air-conditioning. We decided to look for a product which can monitor these things independently from our existing infrastructure. After a search we found your product, to which we can attach different kinds of sensors to monitor voltage, water, smoke and temperature. Most importantly, we can send SMS using a GSM dongle if something wrong is detected. Since purchasing the unit, the E-16D has warned us multiple times by SMS and email that it detected a deviation, and prevented our datacenter from going offline."

    Danny W.
    Srokvis Group
    Netherlands

  • "We have been using the NTI E-16D ENVIROMUX Large Enterprise platform for a while, and I would have to say that I am impressed with the reliability, flexibility and scalability of the system. Every time one of our techs says "I wish there was a way to monitor x, y or z", the ENVIROMUX has had the ability either on board or available as a plug-in module to do so. The customer service of NTI has also made them a pleasure to work with. The ENVIROMUX platform definitely provides us with the insight into the remote parts of our network that we need to keep running effectively and efficiently."

    Izaac U.
    Strata Networks
    Roosevelt, UT

  • "The ability to easily setup and configure the sensors and email information on the E-16D Large Enterprise Environment Monitoring System makes the product easy to use. I like the variety of sensors available at a reasonable cost."

    Thomas F.
    Fletcher Management Inc
    Edina, MN

  • "While shopping for environment monitoring equipment for our remote facilities I came across NTI's website. One call got me all the information I needed on the E-16D. After sharing the information with everyone, we couldn't believe the flexibility of these units. NTI allowed us to demo one of the units for 30 days. The quality and flexibility of product is great, plus NTI has a sensor for most anything you want to monitor. Another call allowed us to order two more units and all the sensors we needed. Now we can completely monitor and protect our remotes just by logging in through a web browser."

    Patrick B.
    Rice Belt Telephone Co.
    Weiner, AR

  • "Just wanted to let you know that we recently purchased the NTI E-16D for our Server Room. The interface is easy to navigate, and setup for multiple devices was quick. Monitoring is a real nice feature - having all the data on a single page is awesome. The automatic voice dialer accessory enhances our IT department crises strategy. The E-16D is feature rich with a wide selection of accessories. After researching several vendors for Environment Monitoring, this System was a great fit in our setting."

    Tim J.
    Preferred Family Health
    Kirksville, MO

(0)Large Enterprise Environment Monitoring Systems

NTI Part # Description Qty
E-16D Power: AC. Logging: 1,000 data log entries; 1,000 event log entries
E-16DDP Power: Dual AC. Logging: 1,000 data log entries; 1,000 event log entries
E-16D-24V Power: 24VDC. Logging: 1,000 data log entries; 1,000 event log entries
E-16D-24VDP Power: Dual 24VDC. Logging: 1,000 data log entries; 1,000 event log entries
E-16D-48V Power: 48VDC. Logging: 1,000 data log entries; 1,000 event log entries
E-16D-48VDP Power: Dual 48VDC. Logging: 1,000 data log entries; 1,000 event log entries
E-16DEL Power: AC. Logging: 1,200,000 data log entries; 3,000 event log entries

(0)System Accessories

NTI Part # Qty
E-RL-16D
E-TRMPLG
E-BATTERY2
E-BATTERY5

Collapse all Expand all Related Items :

(0)Enterprise Environment Monitoring System Management Software - Client/Server Architecture Supports E-2D/5D/16D, E-MICRO, and E-1W. Requires Java.

NTI Part # Description Qty
E-MNG-0010 Manage 10 ENVIROMUX and IPDU-S4/8 units
E-MNG-0050 Manage 50 ENVIROMUX and IPDU-S4/8 units
E-MNG-0100 Manage 100 ENVIROMUX and IPDU-S4/8 units
E-MNG-0500 Manage 500 ENVIROMUX and IPDU-S4/8 units
E-MNG-3000 Manage 3000 ENVIROMUX and IPDU-S4/8 units

(0)Self-Hosted Enterprise Environment Monitoring System Management Software Supports E-2D/5D/16D. No Clients/Apps to Install.

NTI Part # Description Qty
E-MNG-SH Manage 3000 E-2D/5D/16D units

(0)Motion/Intrusion/Vibration Sensors

NTI Part # Qty
E-M-DCS3
E-DCS-PS2
E-DCSR-V2
E-DCSR-UV2
E-VSSB
E-VSSR-10
E-FENCE1
E-GBS
E-IMD-LC
E-IMD-O
E-IMD-OHM
E-IMD-CM
E-IMDM
E-PBD-SO50
E-PBD-DO90
E-PBD-DO190
E-PBD-DO290
E-PBD-DO390
E-TDS
E-EBS
E-LIS

(0)Temperature/Humidity Sensors

NTI Part # Description Qty
E-MICRO-TRHP Micro Environment Monitoring System, Integrated Temp/Humidity Sensor, POE
E-STSMA-E7 Aluminum Probe-Style Temperature Sensor, -4 to 185°F (-20 to 85°C)
E-STS Temperature Sensor, 32 to 122°F (0 to 50°C)
E-STSP-7 Pipe Temperature Sensor, -40 to 185°F (-40 to 85°C)
E-STSP-SL-7 Strap-On Pipe Temperature Sensor, Spring-Loaded, -40 to 185°F (-40 to 85°C)
E-STHSM-E7 Probe-Style Temperature/Humidity/Dew Point Sensor, -4 to 185°F (-20 to 85°C)
E-STHS-LCDW Temperature/Humidity Sensor with 3-Digit 7-Segment LCD Display – 2" Character Height
E-STHS-LSH Fan-Aspirated Temperature/Humidity/Dew Point Sensor, Low Self-Heating
E-STHSB-D Temperature/Humidity/Dew Point Sensor, -4 to 185°F (-20 to 85°C), DIN Mounted
E-STHS-PRC Low-Cost Precision Temperature/Humidity/Dew Point Sensor, 14 to 140°F (-10 to 60°C)
E-RTDT-140 100 Ohm Platinum RTD Transmitter, -20°F to 140°F (-28°C to 60°C)
E-RTDT-240 100 Ohm Platinum RTD Transmitter, -30°F to 240°F (-1°C to 115°C)
E-RTDT-1562 High-Accuracy Platinum RTD Transmitter, -328°F to 1562°F
E-RTDS-MP240 Mini Probe 100 Ohm RTD Sensor, -67°F to 240°F
E-RTDS-A221 All-Purpose 100 Ohm RTD Sensor, -67°F to 221°F
E-RTDS-A1112 All-Purpose 100 Ohm RTD Sensor, -328°F to 1112°F (-200°C to 600°C)
E-RTDS-D240 Duct 100 Ohm RTD Sensor, -67°F to 240°F
E-RTDS-ER230 Rugged Encapsulated 100 Ohm RTD Sensor, -30°F to 230°F
E-RTDS-PAR540-2IN Pipe 100 Ohm RTD Sensor with Adjustable Ring, -58°F to +540°F, 1.25" to 2"
E-RTDS-PAR540-6IN Pipe 100 Ohm RTD Sensor with Adjustable Ring, -58°F to +540°F, 2" to 6"
E-RTDS-PAR540-12IN Pipe 100 Ohm RTD Sensor with Adjustable Ring, -58°F to +540°F, 6" to 12"
E-STS-O Outdoor Temperature Sensor, -40 to 185°F (-40 to 85°C)

(0)Liquid & Chemical Detection Sensors

NTI Part # Description Qty
E-LD-LCx-y Low-Cost Liquid Detection Sensor, Rope-Style. To order, select Length of Water Sensor Cable (x), and length of 2-Wire Cable (y). Configure
E-LDx-y-CONF Liquid Detection Sensor, Plenum Rope-Style. To order, select Length of Water Sensor Cable (x), and length of 2-Wire Cable (y). Configure
E-CDx-y Chemical Detection Sensor. To order, select Length of Chemical Sensor Cable (x), and length of 2-Wire Cable (y). Configure
E-ALDS Addressable Leak Detection Sensor
E-LD-SPDT Liquid Detection, Spot Detector
E-SLDO-14 Compact-Size Spot Liquid Detector, Point Leak Detection Sensor
E-SLDO-14-240VTR 240/208/120 to 24 VAC power transformer and country-specific line cord
E-SLDO-A Spot Liquid Detector with Built-In Visual & Audible Alarm
E-SLDO-IP68 IP68 Submersible Spot Liquid Detector
E-SOD-3M
E-UCLD-x Under Carpet Leak Detector. To order, select Configure to specify length of 2-wire cable. Configure
E-TLD-xx Tape-Style Liquid Detector. To order, select Configure to specify Length of Tape Sensor (x) Configure
E-LLS-PF Plastic Vertical Liquid Level Float Switch
E-ULT Ultrasonic Level Transmitter for small tanks 49.2" or less
E-ULT25IS Intrinsically Safe Ultrasonic Level Transmitter, 25' Range

(0)Smoke/Gas/Dust, Air Flow/Velocity, Weather/Outdoor, Pressure, Noise

NTI Part # Description Qty
E-SDS-120V Smoke Detection Sensor – 120VAC Wire-In with Battery Backup
E-RLY-SDS120V Smoke Alarm Relay Module Compatible with E-SDS-120V
E-SDS Smoke Detector with Built-In Fixed-Temperature 135°F (57°C) Heat Sensor – UL Approved
E-SDS-CELC-V2 Low-Cost Smoke Detection Sensor - CE Approved
E-SDS-TAA-V2 Smoke Detector with Built-In Fixed-Temperature 135°F (57°C) Heat Sensor – UL Approved, TAA Compliant
E-CMD Carbon Monoxide Detector - CO
E-CO2 Carbon Dioxide Detector - CO2
E-GD-MBP Gas Detector — Methane, Butane, Propane
E-H2 Hydrogen Gas Detector
E-H2S Hydrogen Sulfide Detector
E-DUST Optical Dust Sensor
E-AFM Air Flow Sensor
E-AV-LC-7 Low-Cost Air Velocity Sensor, 7 ft, Includes RJ45 Coupler to Extend up to 1,000 ft
E-AV-K Air Velocity Sensor - Requires E-S5VDC
E-WSS Wind Speed Sensor/Anemometer
E-BPT Barometric Pressure Transmitter
E-PST500 Pressure Sensor Transmitter, 0 to 500 psi
E-PST100IS Intrinsically Safe Pressure Sensor Transmitter, 0 to 100 psig
E-PST200IS Intrinsically Safe Pressure Sensor Transmitter, 0 to 200 psig
E-PST500IS Intrinsically Safe Pressure Sensor Transmitter, 0 to 500 psig
E-PST1000IS Intrinsically Safe Pressure Sensor Transmitter, 0 to 1000 psig
E-PST3000IS Intrinsically Safe Pressure Sensor Transmitter, 0 to 3000 psig
E-NLS Noise Level Sensor

(0)Access Control

NTI Part # Description Qty
E-FACS Fingerprint Access Control System
E-FACKR RFID Access Control Keypad with Biometric Fingerprint Reader
E-ACK Digital Keypad
E-RFID-CRD10 RFID EM Cards, 10-Pack
E-RFID-KYFB10 RFID EM Keyfobs, 10-Pack
E-EDR-SF Electric Strike Door Release (fail safe)
E-EDR-SCR-P Electric Strike Door Release (fail secure)

(0)Alert/Communications Accessories

NTI Part # Description Qty
E-AVDS-CELC-V3 Low-Cost Automatic Voice Dialer System, CE, Calls 6 Phone Numbers, 3 Input Channels
E-BCN-R Alarm Beacon – Small: 2.75x1.69 in (70x43 mm)
E-BCN-RL Alarm Beacon – Large: 3.94x3.46 in (100x88 mm)
E-AVDS-CELC-V2 Low-Cost Automatic Voice Dialer System, CE, Calls 20 Phone Numbers, 2 Input Channels
E-AVDS-4G1 4G Automatic Voice Dialer – FDD B2/B4/B12
E-AVDS-4G3 4G Automatic Voice Dialer – FDD B1/3/5/7/8/20
E-AVDS-4G4 4G Automatic Voice Dialer – FDD B1/3/4/5/7/8/28
E-IPCAM-WHNPT-V4 High-Definition Wireless/Wired Day/Night Pan/Tilt IP Camera
E-4GU-5 USB 4G Modem – 4G LTE Bands: 1/3/7/8/20
E-4GU-6 USB 4G Modem, TAA Compliant – 4G LTE Bands: 1/2/3/4/5/7/8/12/18/19/20/25/26/28/38/39/40/41
E-IPCAM-DHNPO-V2P High-Definition Wired Day/Night Pan/Tilt Outdoor IP Dome Camera with Power over Ethernet (PoE)
E-3GU-4 USB 3G Modem
E-4GU-1 4G LTE Bands Supported: 1/2/4/5/7/28. 4G Frequencies Supported: FDD 700/850/1700/1900/2100/2600 MHz.
E-4GU-3 4G LTE Bands Supported: 1/3/7/8/28/40. 4G Frequencies Supported: FDD 700/900/1800/2100/2600 Mhz, TDD 2300 MHz.
E-ANT2-4GU Two External Antennas for 4GU Modem
E-BEEP1-x Rugged Miniature Piezo Alarm, 103 dB. To order, select Configure to specify length of 2-wire cable. Configure
E-BEEP2-x-CONF Miniature Piezo Buzzer, PCB Mount, 85 dB. To order, select Configure to specify length of 2-wire cable Configure
E-SRN-M Piezo Siren, 108 dB
E-LTA-RYG LED Light Tower with Buzzer Alarm – Red, Yellow, Green

(0)Power Relays and Sensors

NTI Part # Description Qty
E-POE-IND Industrial Power Over Ethernet Adapter
E-ACVDRLY-515 AC Voltage Detector with Relay, NEMA 5-15 plug
E-ACVDRLY-C14 AC Voltage Detector with Relay, IEC C14 socket
E-ACDCLM AC & DC Voltage & Current Monitor
E-DCLM-6 DC Line Monitor
E-S60VDC DC Voltage Monitor
E-AMPxx-6-5-CONF Hall-Effect Current Sensors, Solid-Core, 0.26" Loop Diameter. To order, select rated current desired. Configure
E-AMPxx-SC12 Hall-Effect Current Sensors, Split-Core, 0.47" Loop Diameter. To order, select rated current desired. Configure
E-AMPxx-SC21 Hall-Effect Current Sensors, Split-Core, 0.83" Loop Diameter. To order, select rated current desired. Configure
E-ACLM-3P480 3-Phase AC Power Monitor
E-CT50-SC10 AC Current Transformers, Hinged Split-Core, 50 Amps, 0.39 in Loop Diameter
E-CT100-SC16 AC Current Transformers, Hinged Split-Core, 100 Amps, 0.63 in Loop Diameter
E-CT250-SC24 AC Current Transformers, Hinged Split-Core, 250 Amps, 0.94 in Loop Diameter
E-CT500-SC36 AC Current Transformers, Hinged Split-Core, 500 Amps, 1.42 in Loop Diameter
E-CT2000-SC76 AC Current Transformer, Removable-Top Split Core, 2000A, 3.02x5.12 in Window

(0)Sensor Accessories

NTI Part # Description Qty
E-PLSD Programmable LED Sensor Display
E-RJ8-RS485 8-port RJ45 RS485 Sensor Expander
E-RJ8-RS485-D 8-port RJ45 RS485 Sensor Expander, Din Mount
E-RJ8-RS485-R 8-port RJ45 RS485 Sensor Expander, 1RU Rackmount
E-WIFI-RE Environment Monitoring System WiFi Range Extender
E-DI16DO16 Digital Input/Output Expander (Open-Collector Outputs)
E-DI16DOR16-V2 Digital Input/Output Expander (Normally-Open Relay Contact Outputs)
E-DI16DOR16-V2R Digital Input/Output Expander, Normally-Open Relay Contact Outputs, 1RU Rackmount
E-DI16DOR16-V22R Digital Input/Output Expander, Normally-Open Relay Contact Outputs, 1RU Dual Side-by-Side Rackmount
E-SER-2FOSMST RS485/RS232/RS422 to Fiber Converter/Extender, Singlemode, ST Connectors
E-SER-2FOMMSC RS485/RS232/RS422 to Fiber Converter/Extender, Multimode, SC Connectors
E-S420MA-24V 4-20mA Sensor Converter
E-S5VDC 12VDC Sensor Converter
E-2W-xx-CONF 22 AWG Bonded Parallel Cable. To order, select Configure to specify Length of Cable (x) Configure
E-2W-PLNM-xx Plenum 2-wire Sensor Cable. To order, select Configure to specify Length of Cable (x) Configure
E-2WO-xx Outdoor 2-wire Sensor Cable. To order, select Configure to specify Length of Cable (x) Configure
E-CLP10-LD Self-Adhesive Clips for Liquid/Chemical Sensor Rope
E-CLP100-LD Self-Adhesive Clips for Liquid/Chemical Sensor Rope, 100-pack
SP-RS485-12V-O Weather Resistant Surge Protector for RS485 Control & 12VDC Power Lines
E-ISZB Zener Barrier – Intrinsically Safe Barrier

(0)CATx Surge Protector

NTI Part # Description Qty
SP-CAT5-6V CATx Surge Protector
Top Please enter a quantity of at least one product
  • Smart Solutions System Pte Ltd
    • 808 French Road
    • #02-13
    • Singapore 200808
  • Mobile: +65-9191-0884

Contact Us

Network Technologies Inc
1275 Danner Dr., Aurora, OH 44202
Phone: 330-562-7070
Fax: 330-562-1999
US & Canada: 800-742-8324
sales@ntigo.com

Contact Us

© 2022 Network Technologies Inc. All Rights Reserved
