4K 10.2Gbps HDMI USB KVM Extender Over IP via CATx Cable with Video Wall Support

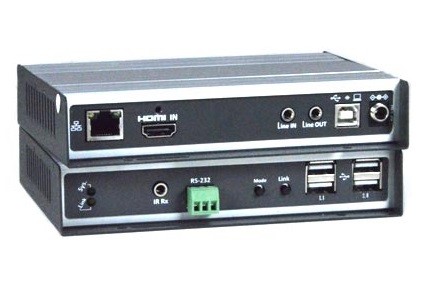

The XTENDEX® 4K HDMI USB KVM Over IP Extender provides remote KVM (USB keyboard, USB mouse, and 4Kx2K HDMI monitor) access to a USB computer up to 400 feet (122 meters) over a Gigabit network using a single CAT5e/6 cable. The extender consists of the ST-IPUSB4K-L-VW local unit that connects to a computer and the ST-IPUSB4K-R-VW remote unit that connects to an HDMI monitor, 3.5mm stereo audio speakers and microphone, and up to four USB devices (keyboard, mouse, flashdrive, HDD, or touchscreen display).

The local and remote units can be connected together for a Point-to-Point connection via CAT5e/6 cable or a Point-to-Many connection via a Gigabit network switch. Support for multiple transmitters requires a managed Gigabit network switch.

• Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.
  • Extend 4Kx2K up to 400 feet in a Point-to-Point connection.
  • Extend 4Kx2K up to 1,000 feet in a Point-to-Point or Point-to-Many connection via a Gigabit network switch.
    • The max length between the switch and the local/remote unit is 500 feet.
• HDMI features supported:
  • HDMI 1.4
  • x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
  • Dolby TrueHD, LPCM 7.1, DTS-HD Master Audio, Dolby Digital, and DTS
  • Bandwidth up to 340 MHz (10.2 Gbps)
  • Lip Sync
• HDCP 1.4 compliant.
• Supports USB 2.0 devices.
  • Keyboard and mouse are hot-pluggable.
  • Connect a mouse, keyboard, flashdrive, HDD or touchscreen display.
• Supports video wall installations from 1x2 to 8x8 screens.
  • Displays can be rotated 90, 180 and 270°.
• Plug-and-Play installation allows receivers to find the transmitter automatically on the same network. (Network configuration may be required for managed network switch.)
• Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control.
• Support for multiple transmitters requires a managed Gigabit network switch with VLAN/IGMP support. Standard LAN switches can only support one transmitter.
  • Each VLAN acts as a separate HDMI Over IP Channel on the network.
• When using multiple remote units, only one unit can have USB control over the source at any time.
• Manage transmitter/receiver connections and video wall configuration with built-in software.
• Supports full-duplex RS232 up to 115200 baud.
• Customizable EDID table on local unit.
• Supports the DDC2B protocol.
• Easily expandable - add receivers as you add control stations.
• Integrated mounting brackets for easy surface/wall mounting.
