DVI-D to VGA Converter connect convert digital video signal to analog monitor

DVI to VGA Converter

NTI Part #: DVI-VGA-Group
DVI-VGA
DVI-VGA
NTI Part #: DVI-VGA-Group

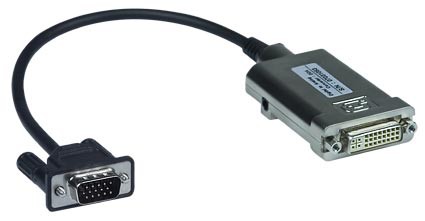

The DVI to VGA Converter changes your computer's digital DVI signal to analog VGA video. The converter generates all the compatible digital to analog conversion signals to make the connection between the DVI-D input and the VGA output work.
Also known as: DVI VGA converter, dvi-d to vga, digital to analog, DVI to VGA, convert digital video signal to analog monitor
  • ROHS Compliant DVI to VGA Converter
  • CE Compliant DVI to VGA Converter
Scroll Down to Get Quote

Overview

The DVI to VGA Converter changes your computer's digital DVI signal to analog VGA video. The converter generates all the compatible digital to analog conversion signals to make the connection between the DVI-D input and the VGA output work.
  • Connects computers with DVI-D connectors to analog VGA monitors or projectors.
  • Compatible with DDWG DVI standard.
  • Supports up to 1920x1200 (WUXGA) video resolution.
  • No external power supply.

Specifications

Specifications

Video
  • One female DVI-D dual link input connector.
    • Single link DVI-D signal.
  • One male 15-pin HD output connector.
  • Maximum resolution: 1920x1200.
Dimensions
  • WxDxH: 1.5x3x0.6 in (38x76x15 mm) with 10" (254 mm) attached VGA cable.
MTBF
  • 2,691,717 hrs.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Cables
  • Includes 6-foot (1.8-meter) DVI-D single link male to male cable.
  • Includes VGA female to female gender changer.

Application Drawings

  • DVI to VGA Converter
    DVI to VGA Converter

Downloads

  • "The DVI-VGA is working out very, very well. The pastor has his iPad connected to something called an Airport. That Airport device is streaming video to his Apple TV. We are then using the DVI-VGA unit to convert the DVI output from the Apple TV to VGA so he can show his display to the rest of the congregation. Very clean video even with the conversion!"

    Burton Goodge
    Corryton, TN
  • "I looked everywhere for a DVI to VGA converter and finally found it at Network Technologies. This device has allowed me to continue my normal work process at a greater reduced price. The alternative solution would have cost more time and been less efficient. NTI has the products others don't and they give you a guarantee to make sure it works for you. I would definitely recommend NTI to others."

    Wayne Lucas
    Augusta Engineering
    South Charleston, WV

(0)DVI-D to VGA Converter

NTI Part # Description Qty
DVI-VGA Converts digital DVI signal to analog VGA video
