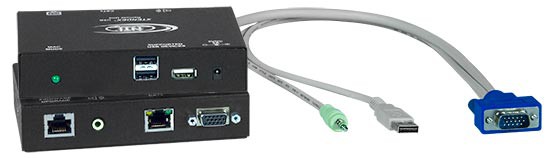

XTENDEX® ST-C5USBVUA-1000S (Remote and Local Units)
XTENDEX® ST-C5USBVUA-1000S (Remote and Local Units)
NTI Part #: ST-C5USBV-1000S-Group
The XTENDEX® KVM Extender provides local and remote KVM (USB keyboard, USB mouse and VGA monitor) access to a USB computer or NTI KVM switch up to 1,000 feet (305 meters) using CAT5/5e/6 UTP cable. Supports resolutions to 2048x1536.
Also known as: CAT5 USB KVM extender, remote keyboard mouse monitor, usb kvm extension 1000 feet (305 meters) long, kvm balun, kvm range extender
Product Highlights
Available Options:
  • Audio
  • USB connector for USB printer, touch screen monitor, CAC card reader, or interactive whiteboard
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant Hi-Res USB KVM Extender via CAT5: Extend to 1,000 Feet (305 meters)
  • CE Compliant Hi-Res USB KVM Extender via CAT5: Extend to 1,000 Feet (305 meters)
Scroll Down to Get Quote

Overview

The XTENDEX® VGA USB KVM Extender provides local and remote KVM (USB keyboard, USB mouse and VGA monitor) access to a USB computer or NTI KVM switch up to 1,000 feet using CAT5/5e/6 UTP cable. Each ST-C5USBV-1000S consists of a local unit that connects to a computer and provides local keyboard, monitor and mouse connections, and a remote unit that connects to a keyboard, monitor and mouse. The local and remote units are interconnected via CAT5/5e/6 cable.

  • Industry-leading ultra high resolutions up to 2048x1536.
  • High quality, rugged steel construction with durable powdercoat finish.
  • Automatically adjust video quality and color skew for crystal clear video with longer cables.
  • DDC2B emulation support for remote monitor.
  • Built-in surge protection.
  • Available with optional stereo audio and/or additional USB 2.0 (low/full speed) port for local and remote user.
    • For the additional USB port on the local unit, connect any type of USB device (fully transparent USB connection).
    • For the additional USB port on the remote unit, use to connect a USB printer, touch screen monitor, interactive whiteboard, or CAC card reader.

Specifications

Local Unit
  • Host Connection
    • Supports a USB computer (PC, SUN, MAC).
    • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
    • One male 15-pin HD connector.
    • One male USB Type A connector.
    • Audio option: one 3.5 mm stereo plug (audio in).
  • Local Access
    • Crisp and clear 2048x1536 video resolution.
    • One female 15-pin HD connector.
    • Two female USB Type A connectors.
    • Audio option: one 3.5 mm stereo plug (audio out).
    • Available with an optional female USB Type A connector for an additional USB 2.0 (low/full speed) device.
      • Connect any type of USB device – fully transparent USB connection.
      • USB maximum data rate: 12 Mbps
Remote Unit
  • Supports resolutions up to 2048x1536; refer to the resolution chart below for resolutions at different lengths.
  • One female 15-pin HD connector.
  • Two female USB Type A connectors.
  • Audio option: one 3.5 mm stereo plug (audio out).
  • Available with an optional female USB Type A connector for an additional USB 2.0 (low/full speed) device - USB printer, touch screen monitor, CAC card reader, interactive whiteboard, or barcode scanner.
    • USB maximum data rate: 12 Mbps.
    • When using a USB printer connected from the remote unit, it is recommended to only print three pages at a time.
    • Supported touch screen monitors: Microtouch 3M, Elo 1529L 3000 Series, ELO 3202L, Elo 1515L, Dell S2240T, Smart Podium ID422w, Hope Industrial HIS-RL17, NEC MultiSync E222W, Industrial Electronic Devices Inc IWS-240t-G3, Zytronics CML-170, Pulse IR TSV4001/DT40, HP Compaq, Sharp Aquos Board, Advantech FPM-2150, Touch Screens Inc TWAP-1150ADP/1154ADP-USB and similar monitors that use PenMount 5000/6000/9000 driver.
    • Supported interactive whiteboards: SMART Board™ SB640
    • Supported card readers: Athena, Cherry, Gemalto, Generic USB, and Dell smart card/keyboard combo.

Distances and Resolutions for CAT5/CAT5e and CAT6 Cables
Cable Distance Maximum Resolution
CAT5/5e (UTP) 1000 feet (305 meters) 1920x1200 at
60 Hz
800 feet (244 meters) 1920x1440 at
60 Hz
600 feet (183 meters) 2048x1536 at
60 Hz
CAT6 (UTP) 800 feet (244 meters) 1920x1440 at
60 Hz
600 feet (183 meters) 2048x1536 at
60 Hz
CAT5/5e (STP) 800 feet (244 meters) 1920x1200 at
60 Hz
600 feet (183 meters) 1920x1440 at
60 Hz
400 feet (122 meters) 2048x1536 at
60 Hz
CAT6 (STP) 400 feet (122 meters) 1280x1024 at
60 Hz
300 feet (91 meters) 1600x1200 at
60 Hz
200 feet (61 meters) 2048x1536 at
60 Hz
Video Quality Adjustment
  • Automatically adjusts the video quality and color skew to compensate for varying lengths of CAT5/5e/6 cable.
    • Maximum delay: 62 ns in 2 ns steps.
  • Manual fine adjustments are made via keyboard commands.
  • Settings are automatically stored in the unit. The next time the unit is powered on, the adjustment will be recalled.
Power
  • Local and remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US, EURO, UK or AUS AC adapter included.)

MTBF
NTI Part # MTBF (hrs)
ST-C5USBV-L-1000S (local) 38,570
ST-C5USBV-R-1000S (remote) 43,429
ST-C5USBVU-L-1000S (local) 37,943
ST-C5USBVU-R-1000S (remote) 44,468
ST-C5USBVA-L-1000S (local) 38,453
ST-C5USBVA-R-1000S (remote) 43,234
ST-C5USBVUA-L-1000S (local) 37,838
ST-C5USBVUA-R-1000S (remote) 42,606

Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Dimensions
  • WxDxH: 5.1x3.1x1.2 in (130x79x30 mm)
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Caution
  • Not an Ethernet device. Do not connect to an Ethernet device (card, router, switch, bridge). Permanent damage to the product or Ethernet device may result.

Diagrams

  • VGA Video/Audio Extender via CAT5: Extend to 600 feet
    VGA Video/Audio Extender via CAT5: Extend to 600 feet
    How to extend HDMI video up to 328 ft using the XTENDEX HDMI HDBase-T Extender with IR via One CAT5/6

Optional

Stereo Audio
  • Stereo audio can be heard both locally and remotely.
  • Frequency response: 20 Hz to 20 kHz, ±1 dB.
  • Signal-to-Noise Ratio (SNR): >76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): <0.1%.
  • Stereo crosstalk: -70 dB.
  • Input impedance: 10k Ohms.
  • Line level output; supports multimedia speakers.
  • Maximum I/O levels: 3.1Vp-p (line level).
  • CD quality audio output.
Additional USB Port
  • Additional USB 2.0 port for local and remote user.
    • For the additional USB port on the local unit, connect any type of USB device (fully transparent USB connection).
    • For the additional USB port on the remote unit, use to connect a USB printer, touch screen monitor, CAC card reader, interactive whiteboard, or barcode scanner.
      • USB maximum data rate: 12 Mbps.
      • When using a USB printer connected from the remote unit, it is recommended to only print three pages at a time.
      • Supported touch screen monitors: Microtouch 3M, Elo 1529L 3000 Series, Elo 1515L, Smart Podium ID422w, Hope Industrial HIS-RL17, NEC MultiSync E222W, Industrial Electronic Devices Inc IWS-240t-G3, Zytronics CML-170, Pulse IR TSV4001/DT40 and HP Compaq.
      • Supported interactive whiteboards: SMART Board™ SB640
      • Supported card readers: Athena, Cherry, Gemalto, Generic USB, Dell smart card/keyboard combo, and SCM Microsystems.

  • "The ST-C5USBVU-1000S units are working out very well. We're using them to extend KVM from our server racks to our On-Air Broadcast Studios, and running our automation system from the COMPAQ L2105 TM Touch screens. The On-Air Talent is loving them, because they don't have to move around the studio to make changes or ask a production assistant to get them information from another area."
