VGA KVM Switch via CAT5 – USB, PS2, SUN, Serial

NTI Part #: PRIMUX-UZR-Group

PRIMUX-UZR

Additional Images/Videos

NTI Part #: PRIMUX-UZR-Group

The PRIMUX® VGA Zero-U KVM Switch System enables selection and control of up to 64 computers (USB, PS2, SUN, serial) without consuming rack space.

Also known as: KVM Switch CAT5, low density KVM switch, KVM Server Switch, zero-u kvm switch, zero u KVM switch zero rack space switch, switchless KVM Switch

Designed and Manufactured in the U.S.A.
ROHS Compliant VGA KVM Switch via CAT5 – USB, PS2, SUN, Serial
CE Compliant VGA KVM Switch via CAT5 – USB, PS2, SUN, Serial

Scroll Down to Get Quote

Overview

The PRIMUX^® Zero-U VGA KVM Switch System allows you to control up to 64 computers without consuming rack space. The switch frees up valuable space by eliminating large KVM switchboxes and bulky hard-to-manage coax cables.

The PRIMUX system consists of two components: the User Station that connects to a keyboard, monitor and mouse, and Host Adapter that connects to a server. Up to 64 Host Adapters can be daisy-chained together providing user access to up to 64 servers. The User Stations and Host Adapters can be located as far as 1,000 feet (305 meters) from each other via CAT5/5e/6 UTP cable.

A single, inexpensive CAT5/5e/6 UTP cable replaces bulky KVM cables.
Interconnect multiple servers at different locations throughout a building. Servers can be the same or different platforms(PS/2, SUN, USB or serial).
Ideal for hazardous/unsecured environments. User station can be located up to 1,000 feet (305 meters) from servers.

Provides a simple daisy-chained wiring configuration.
Easy to install and use with plug-and-play functionality.
Hot-swap components with no disruption of server operation.
Supports crisp and clear resolutions to 1920x1440.
Dedicated microprocessors prevent computers from locking up, ensuring reliable control.
Keep-alive keyboard/mouse emulation for flawless operation.
OSD provides fine tuning for optimal video quality.
Color-coded LEDs on both the local and remote units indicate power status and verify communication between the units.
Automatically adjusts the video quality to compensate for varying lengths of CAT5/5e/6 cable.
Configuration is saved and restored even if unit loses power.

Specifications

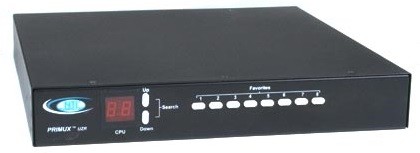

User Station

Monitor

Female 15-pin HD connector.
Supports resolutions to 1920x1440.
A multiscan VGA monitor is required to display the different video outputs from different platforms.
Supports Separate and Composite TTL level sync.
Supports the DDC2B protocol.

Devices

Two female USB Type A and two female 6-pin miniDIN connectors.
Keyboard and mouse are hot-pluggable.
User keyboard and mouse must be of the same platform – both USB or PS/2.
Supports international keyboard layouts.
Supports all standard PS/2 keyboards and most USB keyboards with Windows or SUN keyboard layout.
Supports standard 2-button PS/2 mice, as well as other styles.
Supports most USB mice (up to 3 buttons).
USB SUN 3-button mice are supported.

Power

110 or 220 VAC at 50 or 60 Hz via AC adapter.
Power consumption: 10 W

Dimensions

WxDxH: 11x11x1.75 in (279x279x44 mm)
Optional 1RU rackmount kit available (PRIMUX-RK-UZR)

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -22 to 140°F (-30 to 60°C).
Operating /storage relative humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

CE, RoHS
TAA compliant

Warranty

Two years

Distances and Resolutions for CAT5/5e/6 Cables
Cable	Distance	Maximum Resolution
CAT5/ CAT5e (UTP)	1000 feet (305 meters)	1024x768 at 60 Hz
	700 feet (213 meters)	1280x1024 at 60 Hz
	500 feet (152 meters)	1600x1200 at 60 Hz
	400 feet (122 meters)	1920x1440 at 60 Hz
CAT6 (UTP)	800 feet (244 meters)	1024x768 at 60 Hz
	600 feet (183 meters)	1280x1024 at 60 Hz
	500 feet (152 meters)	1600x1200 at 60 Hz
	350 feet (107 meters)	1920x1440 at 60 Hz

Host Adapters

Hosts

A maximum of 64 host computers can be daisy-chained together.
One platform-specific (PS/2, SUN, USB or serial) HA-x host adapter is required for each computer.

HA-PS2
- Compatible with legacy PS/2 computers with VGA video.
- One male 15-pin HD and two male 6-pin miniDIN connectors.
- Dimensions WxDxH (in): 2.1x3.7x1.0
HA-SUN
- Compatible with legacy SUN computers with VGA video.
- One male 15-pin HD and one male 8-pin miniDIN connectors.
- Dimensions WxDxH (in): 2.1x3.7x1.0
HA-USB
- Compatible with USB computers (PC, SUN, MAC) with VGA video.
- One male 15-pin HD and one male USB Type A connectors
- Dimensions WxDxH (in): 2.1x3.7x1.0
HA-RS
- Compatible with most serial devices with an RS232 port.
- One female RJ45 EIA-232 serial port connector.
- Supported signals: TXD, RXD, DSR, DTR, CTS, RTS
- Emulates an ASCII terminal – converts serial data from ASCII device into VGA video
  - 800x600 @ 60 Hz signal.
- Screen size: 80 characters wide by 30 lines
- Selectable baud rate: up to 115200
- Dimensions WxDxH (in): 2.1x3.5x0.9

Power

HA-PS2/HA-SUN/HA-USB: Power provided by the host computer.
HA-RS: Power provided by the host serial device via USB Type A connector.

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -22 to 140°F (-30 to 60°C).
Operating /storage relative humidity: 17 to 90% non-condensing RH.

Cables

To daisy chain host adapters and user station, use CAT5/5e/6 UTP straight through cable for TIA/EIA-568B wiring with standard RJ45 connectors. Cables not included

Regulatory Approvals

RoHS

Control Methods

On Screen Display (OSD)

Locate and select computers by name, comment, index or ID.
Displays the platform, name, and power status of the daisy-chained computers.
Allows color skew compensation and video compensation fine tuning for optimal video quality.
OS and software-independent.
Security
- Add or remove authorized users.
- Set individual user names and passwords for each user.
- Administrator can enable or disable all security features and select which computers each user can access.

Front Panel Interface

Locally change ports with front panel buttons. Provides eight “favorites” buttons allowing the user to program buttons to select frequently used computers.

Keyboard

Use the keyboard to command the user station to select ports or configure the Scan delay.
Scan Mode automatically and sequentially displays the video from each powered-on computer.
Command Mode allows the user to give instructions to the switch through the keyboard.

Application Drawings

VGA KVM Switch via CAT5

Application Notes

Interconnect Multiple Servers at Different Locations

Allows you to connect servers physically located in different locations throughout your building to a maximum distance of 1,000 feet.

Downloads

(0)User Station

NTI Part #	Platform	Dimensions WxDxH (in.)	Qty
PRIMUX-UZR	PS/2, USB, SUN	11x11x1.75

(0)Host Adapters

NTI Part #	Platform	Dimensions WxDxH (in.)
HA-PS2	PS/2	2.1x3.7x1
HA-USB	USB	2.1x3.7x1
HA-SUN	SUN	2.1x3.7x1
HA-RS	RS232	2.1x3.5x0.9

Collapse all Expand all Related Items :

(0)1RU Rackmount Kit for PRIMUX-UZR

NTI Part #	Description	Qty
PRIMUX-RK-UZR	1RU Rackmount Kit
