VGA Extender via One LC Singlemode/Multimode Fiber Optic Cable

VGA Extender via One LC Singlemode/Multimode Fiber Optic Cable

NTI Part #: ST-FOVARS-LCV2-Group

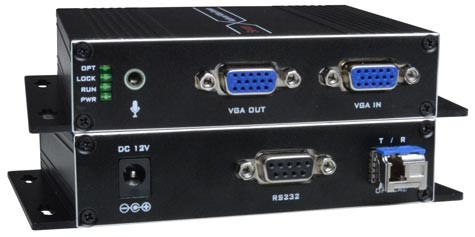

XTENDEX ST-FOVARS-LCV2 (Local and Remote Unit)

Additional Images/Videos

NTI Part #: ST-FOVARS-LCV2-Group

The XTENDEX® VGA Extender via Fiber Optic Cable locates a VGA display, stereo audio speakers and RS232 up to 6.2 miles (10 kilometers) away from a computer using a single LC singlemode fiber optic strand and 1,640 feet (500 meters) using multimode fiber optic cable. Each extender consists of a transmitter that connects to a computer and also supplies video to a local monitor, and a receiver that connects to a monitor.

Also known as: VGA optical extension, VGA extender, VGA to singlemode fiber, optical extender, graphic extension modules, fiber optic analog video extender, VGA over fiber balun

Supports local and remote VGA monitors.
Extend to 6.2 miles using singlemode cable.
Extend to 1,640 feet using multimode cable.

Scroll Down to Get Quote

Overview

Signal transmission via single-strand LC fiber optic cable - no RF interference.
- Using singlemode 9-micron cable, extend to 6.2 miles (10 kilometers).
- Using multimode 50-micron or 62.5-micron cable, extend to 1,640 feet (500 meters).
Supports local and remote VGA monitors.
Supports computer resolutions to 1920x1080.
Supports stereo audio speakers.
- Can be used as an audio-only extender.
Plug and play functionality – no software needed.
Low RFI/EMI for sensitive applications.
Built-in default EDID table.
Supports the DDC2B protocol.
Cables can be installed in conduit prior to extender installation.

Specifications

Local Unit

Supports a PC, SUN, or MAC with VGA video.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Supports resolutions to 1920x1080 at 60 Hz
One female 15-pin HD connector for computer connection
One female 15-pin HD connector for local VGA monitor.
One female 3.5mm stereo audio jack.
One female DB9 connector for RS232.
One simplex LC fiber optic port for sending video/audio signals and DDC signal.

Remote Unit

Supports resolutions to 1920x1080 at 60 Hz
- Built-in default EDID table – refer to the manual for all supported resolutions.
Resolutions supported by EDID table: 1920x1080, 1280x1024, 1280x768, 1280x720, 1024x768, and 800x600 @ 60Hz.
One female 15-pin HD connector.
One female 3.5mm stereo audio jack.
One female DB9 connector for RS232.
- Self-adaptive baud rate up to 115200.
One simplex LC fiber optic port for sending video/audio signals and DDC signal.

Power

Local and remote unit:
- Input: 100 to 240 VAC at 50 or 60Hz via AC adapter.
- Output: 12VDC, 1A
Power consumption:
- Local unit: 3.6W
- Remote unit: 3.0W

Environmental

Operating temperature: 23 to 158°F (-5 to 70°C).
Operating and storage relative humidity: 5 to 90% non-condensing RH.

Dimensions

WxDxH (in): 5.24x4.17x1.05 (133x106x27 mm)

Warranty

Two years

Max Distance

6.2 miles (10 km) over 9µm singlemode LC fiber optic cable.
1,640 feet (500 meters) over 50µm or 62.5µm multimode LC fiber optic cable.

Cables

Use a simplex LC singlemode 9-micron fiber optic cable to extend the receiver from the transmitter up to 6.2 miles (10 km).
Use a simplex multimode LC 50-micron or 62.5-micron fiber optic cable to extend the receiver from the transmitter up to 1,640 feet (500 meters).
Cables not included.

Package Includes

One transmitter unit
One receiver unit
Two SFP modules for fiber connection
Two power supplies
User manual

Application Drawings

VGA Extender via One LC Singlemode/Multimode Fiber Optic Cable

Downloads

Data Sheet:

VGA Extender via One LC Singlemode Fiber Optic Cable

User Manual:

ST-FOVARS-LCV2 – Installation and Operation Manual 1.1 MB
