4K 18Gbps HDMI Active Optical Cable – CE/FCC/RoHS Compliant

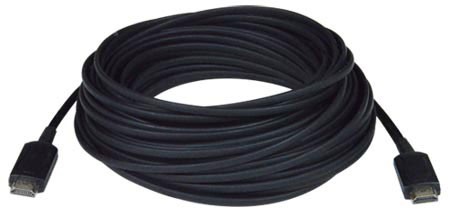

The XTENDEX® 4K HDMI Active Optical Cable locates an Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display up to 100 meters (328 feet) from a video source. Using optical fiber, the HD4K18GB-FO-xxM-MM provides high reliability HDMI signal transmission with zero signal loss in high noise environments.

• High speed and long distance transmission by optical system up to 100 meters (328 feet).
  • Hybrid cable containing both fiber optic and copper cores.
• Supports Ultra-HD 4Kx2K resolutions to 4096x2160 (60Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.
• No loss of signal – delivering crystal clear digital images instantly.
• HDCP 2.2 compliant.
• No external power required.
• HDMI features supported:
  • HDMI 2.0
  • YUV 4:4:4
  • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
  • Bandwidth: 6Gbps per channel (18Gbps total)
  • Supports ARC, HEC and CEC.
  • 3D
  • Lip Sync
• Optical fibers immune to signal noise.
• Low RFI/EMI for sensitive applications.
• Supports Plug-n-Play specification.
• EDID learning for the support of any HDMI display device.
• Thin and ultra-lightweight construction.
• Ideal solution for many applications, including:
  • Digital Signage
  • Medical Imaging Equipment
  • Airplane On-board Video System
  • Home Theater
  • TV Broadcast Station
  • Conference Room Video Equipment
