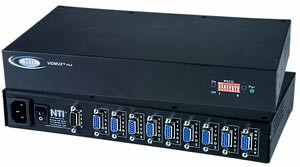

8-port VGA switch, 8 PC's to 1 VGA monitor, RS232 control, rackmount kit
8-port VGA switch, 8 PC's to 1 VGA monitor, RS232 control, rackmount kit

8-port VGA switch, 8 PC's to 1 VGA monitor, RS232 control, rackmount kit

NTI Part #: SE-15V-8-RS
8 port VGA switch. Crisp clear 1920x1200 resolution. Compatible with PCs, SUNs and MACs with VGA video.

Overview

8 port VGA switch
  • Crisp clear 1920x1200 resolution.
  • Compatible with PCs, SUNs and MACs with VGA video.
Control
  • Female DB9 connector.
  • Baud rate 300 through 9600.
  • Address up to 15 units, all of which can be daisy-chained and controlled by one serial port.
  • Add "-RS" to the part number to specify this option. (Available for all switches except for 2 Port-TTL Models.)
  • Local control is not available when "-RS" is specified.
Commands
  • RS - causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2.
  • CS - causes one INx/OUTx connection to occur.
  • CA - causes all inputs to connect to specified output.
  • RO - reads what input is connected to specified output.
  • RU - reads size of matrix, reports number of inputs and number of outputs on specified switch.

Specifications

Monitor
  • Crisp & clear 1920x1200 resolution.
  • Female 15-pin HD connectors.
  • Bandwidth is 150 MHz.
Control
  • Touch buttons on front with LED indication of port selection.
Dimensions
  • SE-15V-8-RS WxDxH (in):
    • 10.9x6x1.75 (without supplied rackmount kit)
    • 19x6x1.75 (with supplied rackmount kit)
  • SE-15V-16-RS-R WxDxH: 19x6x1.75 in (483x152x44 mm)
Power
  • 110 or 220 VAC at 50 or 60 Hz.
  • Power consumption:
    • 8-port: 5 W
    • 16-port: 10 W
MTBF
  • SE-15V-8-RS: 73,866 hrs
  • SE-15V-16-RS: 71,599 hrs
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years.
Compatible NTI Products
  • Combine NTI emulators and switches for complex applications.
