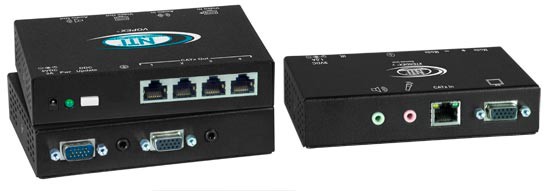

VOPEX-C5VA-4C1000 Local Unit (Front & Back) and ST-C5V-R-1000SP Remote Unit

Additional Images/Videos

NTI Part #: VOPEX-C5VA-4C1000-Group

The VOPEX®VGA Video Splitter/Extender simultaneously broadcasts high-resolution VGA video from one computer to 4 or 8 remote monitors located up to 1,000 feet away using CAT5/5e/6 cable. Audio can be broadcasted to self-powered stereo speakers at the local unit and each remote location when using NTI's remote units with audio option.

Also known as: CAT5 VGA video splitter, video multi-point extender, audio video port expander, cat5 vga splitter, monitor splitter, vga video splitter, extend multiple monitors, VGA video distribution over cat 5 wiring, share video, split vga video, video splitter hub

Product Highlights

Supports Resolutions up to 2048x1536
Compatible with NTI's 600' and 1000' Extenders

Designed and Manufactured in the U.S.A.
ROHS Compliant VGA Video/Audio Splitter/Extender via CAT5 to 1,000 Feet: 4- and 8-Port
VGA Video/Audio Splitter/Extender via CAT5 to 1,000 Feet: 4- and 8-PortDigital Signage Product
CE Compliant VGA Video/Audio Splitter/Extender via CAT5 to 1,000 Feet: 4- and 8-Port

Scroll Down to Get Quote

Overview

The VOPEX® VGA Video Splitter/Extender simultaneously broadcasts high-resolution VGA video from one computer to 4 or 8 remote monitors located up to 1,000 feet (305 meters) away using CAT5/5e/6 cable. Audio can be broadcasted to self-powered stereo speakers at the local unit and each remote location when using NTI's remote units with audio option.

The VOPEX VGA Video splitter/extender system has two components: the VOPEX-C5V(A)-xC1000 VGA broadcast unit, which connects to the host computer and also supplies video to a local monitor, and an XTENDEX® remote unit (ST-C5V(2A)-R-1000SP or ST-C5V(A)-R-600) for each remote monitor. The units are interconnected by CAT5/5e/6 cable.

Broadcast real-time VGA video and stereo audio to multiple locations.
Supports resolutions up to 2048x1536 using NTI's 1,000' (305 m) remote units and 1920x1440 using NTI's 600' (183 m) remote units.
Easily expandable. Add remote units as you add monitors.
A pure hardware solution-no software conflicts.
High quality rugged steel construction with durable powder coat finish.
Ideal for digital signage, movie theater lobbies, point of purchase displays, conference centers, airports, and other applications that require multiple displays.

Specifications

Local Unit (Splitter)

Video Input

Supports a PC, SUN or MAC with VGA video.
Male 15-pin HD connector.
DDC Update button for sending updated EDID to the graphics card in the CPU.
Input frequency ranges:
- Horizontal: 15 kHz to 130 kHz.
- Vertical: 30 Hz to 150 Hz
Supports Separate and Composite TTL level sync and Sync on Green.
Input impedance: 75 Ohms.
Maximum input levels: 1.45 p-p.
Video is DC coupled.

Video Output

Female RJ45 connectors for CAT5/5e/6 cable to remote units.
Female 15-pin HD connector for local monitor.
Crisp and clear 2048x1536 video resolution.
Output impedance: 75 Ohms.
Maximum output level: 1.45Vp-p

Audio

3.5mm stereo audio jacks.
Frequency response: 20 Hz to 20 kHz, ±1 dB.
Signal-to-Noise Ratio (SNR): 76 dBA.
Total Harmonic Distortion and Noise (THD+N): 0.017%
Stereo crosstalk: -70 dB.
Input impedance: 10k Ohms.
Line level output; supports multimedia speakers.
CD quality audio output.
Maximum I/O levels for audio: 3.1 Vp-p (line level).

Cables

3-foot VGA cable included.
3-foot audio cable included.
Use CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

Power

110 to 220 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)

Dimensions

4-port WxDxH (in): 5.13x3.45x1.08
8-port WxDxH (in): 5.13x3.45x1.68

Environmental

Operating temperature: 32 to 100°F (0 to 38°C)
Storage temperature: -22 to 140°F (-30 to 60°C)
Operating and storage relative humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

CE, RoHS

Warranty

Two years

Remote Units to 1,000 ft
Distances and Resolutions for CAT5/CAT5e
and CAT6 Cables
Cable	Distance	Maximum Resolution
CAT5/5e (UTP)	1000 ft (305 m)	1920x1200 at 60Hz
	800 ft (244 m)	1920x1440 at 60Hz
	600 ft (183 m)	2048x1536 at 60Hz
CAT6 (UTP)	800 ft (244 m)	1920x1440 at 60Hz
CAT6 (UTP)	600 ft (183 m)	2048x1536 at 60Hz
CAT5/5E (STP)	800 ft (244 m)	1920x1200 at 60Hz
	600 ft (183 m)	1920x1440 at 60Hz
	400 ft (122 m)	2048x1536 at 60Hz
CAT6 (STP)	400 ft (122 m)	1280x1024 at 60Hz
	300 ft (91 m)	1600x1200 at 60Hz
	200 ft (61 m)	2048x1536 at 60Hz

Remote Unit (Receiver)

Video Output

Female 15-pin HD connector.
Resolutions:
- ST-C5V(2A)-R-1000SP: Supports resolutions up to 2048x1536
- ST-C5V(A)-R-600: Supports resolutions up to 1920x1440
- Refer to the resolution charts below for resolutions at different lengths.
Output impedance: 75 Ohms.
Maximum output level for video: 1.45Vp-p.
Video quality adjustment:
- ST-C5V(2A)-R-1000SP: Automatically adjusts the video quality and color skew to compensate for varying lengths of CATx cable.
- ST-C5V(A)-R-600: Video quality adjustment for different lengths of CATx cable is done manually for the video-only remote, and automatically for audio/video remote.

Optional Audio

3.5mm stereo audio jack.
- Note: the extra 3.5mm port on ST-C5V2A-R-1000SP for microphone is not supported by the VOPEX-C5VA-xC1000.
Frequency response: 20 Hz to 20 kHz, ±1dB.
Signal-to-Noise Ratio (SNR): 76 dBA.
Total Harmonic Distortion and Noise (THD+N): 0.017%.
Stereo crosstalk: -70 dB.
Line level output; supports multimedia speakers.
- CD quality audio output.
Maximum output levels: 3.1Vp-p (line level).

Power

110 to 220 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)

Dimensions

ST-C5V2A-R-1000SP WxDxH (in): 5.03x3.06x1.08
ST-C5VA-R-600 WxDxH (in): 3.47x3.05x1.04

Environmental

Operating temperature: 32 to 100°F (0 to 38°C)
Storage temperature: -22 to 140°F (-30 to 60°C)
Operating and storage relative humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

CE, RoHS

Warranty

Two years

Remote Units to 600 ft
Distances and Resolutions for CAT5/CAT5e
and CAT6 Cables
Cable	Distance	Maximum Resolution
CAT5/5e Solid UTP	600 ft (183 m)	1024x768 at 60Hz
	400 ft (122 m)	1280x1024 at 60Hz
	300 ft (91 m)	1600x1200 at 60Hz
	100 ft (30 m)	1920x1440 at 60Hz
CAT5/5e Solid STP, CAT6/6a Solid UTP	300 ft (91 m)	1024x768 at 60Hz
	200 ft (61 m)	1280x1024 at 60Hz
	100 ft (30 m)	1920x1440 at 60Hz

Application Drawings

How to Drive Up to 8 Monitors and Speakers 1,000 feet away From One Computer

Downloads

Data Sheet:

VOPEX-C5VA-4C1000 Data Sheet 331 KB

User Manual:

VOPEX-C5VA-xC1000 - Installation and Operation Manual 564 KB

Test Pattern:

(0)VGA Video/Audio Splitter/Extender via CAT5 to 1,000 Feet

NTI Part #	Number of Ports	Qty
VOPEX-C5VA-4C1000	4
VOPEX-C5VA-8C1000	8

(0)Receivers to 1,000 Feet

NTI Part #	Supported Features	Qty
ST-C5V-R-1000SP	VGA Video
ST-C5V2A-R-1000SP	VGA Video, Two-way Audio

(0)Other

NTI Part #	Qty
ST-C5V-R-600
ST-C5VA-R-600
