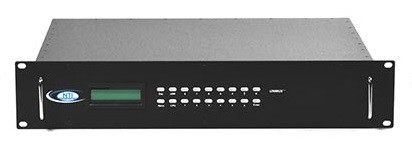

VGA USB KVM Matrix Switch

NTI Part #: UNIMUX-2X8-U-Group

UNIMUX-2X8-U

Additional Images/Videos

NTI Part #: UNIMUX-2X8-U-Group

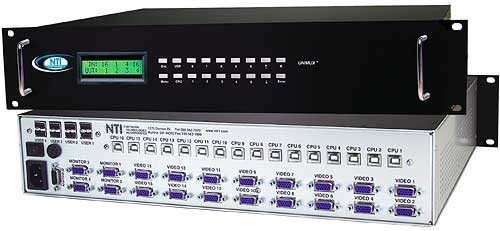

The UNIMUX™ VGA USB Matrix KVM switch allows up to eight users to individually command or simultaneously share up to 32 USB computers.

Also known as: Industrial USB KVM Matrix Switch, multiple users control many USB PC SUN MAC Computers, rackmount USB KVM matrix switch.

Product Highlights

Up to 8 users control 32 USB-enabled PC, SUN and MAC computers

Designed and Manufactured in the U.S.A.
ROHS Compliant VGA USB KVM Matrix Switch
CE Compliant VGA USB KVM Matrix Switch

Scroll Down to Get Quote

Overview

The UNIMUX™ USB KVM Matrix switch allows up to eight users to individually command or simultaneously share up to 32 USB computers. Access USB-enabled PC, SUN, and MAC computers using USB keyboards and mice, and VGA multiscan monitors.

USB host computers and USB devices can be hot-plugged or removed at any time. Allows any USB device (keyboard and/or mouse) to control any attached USB host computer. International keyboard layouts are supported in auto-detection mode, or can be manually selected via the On Screen Display (OSD) menu.

Equipped with OSD, Liquid Crystal Display, and RS232.
Rackmount is standard on all UNIMUX-nXm-U models. The smaller models are also available in a desktop case.
Dedicated microprocessors prevent computers from locking up, ensuring reliable control.
Fully compliant with USB standards (1.0, 1.1).
The advanced OSD user interface with password security makes the UNIMUX USB KVM Matrix Switch simple and reliable to use in Enterprise data centers.
Computers can be shared or used exclusively.
Crestron® compatible.
Optional stereo audio support using an Audio Matrix Add-On Switch (not included).
- Supported USB KVM Matrix Switches (UNIMUX-nXm-UA) feature a male DB9 connector for connecting the Audio Matrix Add-On Switch.

Specifications

2x8

Hosts

Eight female 15-pin HD and eight female USB Type B connectors.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Supports PCs with USB-enabled OS (Windows 98/ME/2000/XP, Windows Server 2003, Linux) and USB ports.
Supports PCs with USB-enabled BIOS (legacy USB support) and USB ports.
Supports SUN Blade 100, SUN Blade 1000, SUN Fire™ 240 and SUN Ray.
Supports MAC G4, G5 and Xserve.
Supports MAC soft (keyboard) power-on.
Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R adapter.

Monitor

Crisp and clear 1920x1200 resolution.
Two Female 15-pin HD connectors.
A multiscan VGA monitor is required to display the different video outputs from different platforms.
Bandwidth is 150 MHz.

Cables

Interface cables between your computers and the switch are required for proper operation. Use USBVEXT-xx-MM and standard interface cables to connect switches to computers.
Cables not included.

Environmental

Operating temperature: 32°F to 100°F (0°C to 38°C)
Storage temperature: -20°F to 140°F (-30°C to 60°C)
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Devices

Two sets of female USB Type A connectors for keyboards and mice.
Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse®, Logitech Cordless Elite Duo keyboard and mouse, Gyration keyboard/mouse, Crystal Vision keyboard with touchpad, and iKey DI-5K USB.
Keyboard and mouse are hot-pluggable.
USB MAC and SUN startup keys are supported on all platforms of input devices.
Keystrokes are translated across platforms.

Power

110 or 220 VAC at 50 or 60 Hz via AC adapter.
Power consumption: 10W
Use the PWR-48V-5V2A DC-DC power converter to install the UNIMUX-2X8-U in a Telecom environment.

MTBF

58,644 hrs

Regulatory Approvals

CE, RoHS
TAA compliant

Warranty

Two years

Compatible NTI Products

Combine NTI emulators and switches for complex applications.
- VGA EDID Emulator (VGA-EDID-EMLTR2)

4x16

Hosts

Sixteen female 15-pin HD and sixteen female USB Type B connectors.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Supports PCs with USB-enabled OS (Windows 98/ME/2000/XP, Windows Server 2003, Linux) and USB ports.
Supports PCs with USB-enabled BIOS (legacy USB support) and USB ports.
Supports SUN Blade 100, SUN Blade 1000, SUN Fire™ 240 and SUN Ray.
Supports MAC G4, G5 and Xserve.
Supports MAC soft (keyboard) power-on.
Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R adapter.

Monitor

Crisp and clear 1920x1200 resolution.
Four Female 15-pin HD connectors.
A multiscan VGA monitor is required to display the different video outputs from different platforms.
Bandwidth is 150 MHz.

Cables

Interface cables between your computers and the switch are required for proper operation. Use USBVEXT-xx-MM and standard interface cables to connect switches to computers.
Cables not included.

Environmental

Operating temperature: 32°F to 100°F (0°C to 38°C)
Storage temperature: -20°F to 140°F (-30°C to 60°C)
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Devices

Four sets of female USB Type A connectors for keyboards and mice.
Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse®, Logitech Cordless Elite Duo keyboard and mouse, Gyration keyboard/mouse, Crystal Vision keyboard with touchpad, and iKey DI-5K USB.
Keyboard and mouse are hot-pluggable.
USB MAC and SUN startup keys are supported on all platforms of input devices.
Keystrokes are translated across platforms.

Power

110 or 220 VAC at 50 or 60 Hz
Power consumption: 25W
Add -48V5V10A, optional internal DC-DC converter to install the UNIMUX-4X16-U in a Telecom environment.

MTBF

50,289 hrs

Regulatory Approvals

CE, RoHS
TAA compliant

Warranty

Two years

Compatible NTI Products

Combine NTI emulators and switches for complex applications.
- VGA EDID Emulator (VGA-EDID-EMLTR2)

8x8

Hosts

Eight female 15-pin HD and eight female USB Type B connectors.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Supports PCs with USB-enabled OS (Windows 98/ME/2000/XP, Windows Server 2003, Linux) and USB ports.
Supports PCs with USB-enabled BIOS (legacy USB support) and USB ports.
Supports SUN Blade 100, SUN Blade 1000, SUN Fire™ 240 and SUN Ray.
Supports MAC G4, G5 and Xserve.
Supports MAC soft (keyboard) power-on.
Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R adapter.

Monitor

Crisp and clear 1920x1200 resolution.
Eight Female 15-pin HD connectors.
A multiscan VGA monitor is required to display the different video outputs from different platforms.
Bandwidth is 150 MHz.

Cables

Interface cables between your computers and the switch are required for proper operation. Use USBVEXT-xx-MM and standard interface cables to connect switches to computers.
Cables not included.

Environmental

Operating temperature: 32°F to 100°F (0°C to 38°C)
Storage temperature: -20°F to 140°F (-30°C to 60°C)
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Devices

Eight sets of female USB Type A connectors for keyboards and mice.
Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse®, Logitech Cordless Elite Duo keyboard and mouse, Gyration keyboard/mouse, Crystal Vision keyboard with touchpad, and iKey DI-5K USB.
Keyboard and mouse are hot-pluggable.
USB MAC and SUN startup keys are supported on all platforms of input devices.
Keystrokes are translated across platforms.

Power

110 or 220 VAC at 50 or 60 Hz
Power consumption: 25W
Add -48V5V10A, optional internal DC-DC converter to install the UNIMUX-8x8-U in a Telecom environment.

MTBF

41,112 hrs

Regulatory Approvals

CE, RoHS
TAA compliant

Warranty

Two years

Compatible NTI Products

Combine NTI emulators and switches for complex applications.
- VGA EDID Emulator (VGA-EDID-EMLTR2)

Control Methods

Keyboard

Type <Ctrl> + <`> to go into Command Mode.
Press <ESC> to leave Command Mode and return to Normal Mode.
Use the keyboard to command the switchbox to select ports or configure the Scan, Sharing and Broadcast Modes.
- Normal Operating Mode allows the user to directly operate the selected computer with a transparent presence of the NTI switch.
- Sharing Mode allows users to share the same computer.
- Command Mode allows the user to give instructions to the switch through their keyboard. Keystrokes are not passed to the computer.
- Scan Mode feature causes the switch to automatically and sequentially display the video from each selected powered on computer for a duration of 2-255 seconds (programmable by the user).
- Broadcast Mode allows the user's keystrokes to be sent to all selected powered on computers.

RS232 Control

Standard feature on the rackmount units.
Control
- Female DB9 connector.
- Baud rate 300 through 9600, DIP switch selectable.
- Use DIP switches to address up to 15 units, all of which can be daisy-chained and controlled by one serial port.
- Seven segment displays show what input is connected to each output.
Commands
- RS – causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2.
- CS – causes one INx/OUTx connection to occur.
- CA – causes all inputs to connect to specified output.
- RO – reads what input is connected to specified output.
- RU – reads size of matrix, reports number of inputs and number of outputs on specified switch.

Front Panel Interface

Locally change ports with front panel buttons.
Use front panel buttons to move through LCD screens and execute actions.
LCD indicates currently selected port for each user.
Use buttons to configure RS232 control.
- Change baud rates for RS232.

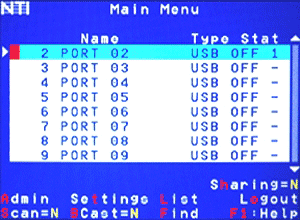

On Screen Display (OSD)

Standard feature on the rackmount units.
Use keyboard or mouse to operate the switch from menus superimposed onto your monitor.
Type <CONTROL> + <`> to activate OSD.
Control, Scan, & Broadcast functions.
View vital port information.
Search for ports by name.
Search Mode lets the user type in the first few letters of the computer's name and the OSD will locate it.
Names can be up to 12 characters long.
Shows names of computers on cascaded switches up to 128 ports.
Displays the computer's platform next to its name.
Modify the size and position of the OSD.
Help Screens assist users with the OSD.
OS- and software-independent.
Our OSD comes built into your switch, so you do not have to install additional hardware or software.

Security Features built into OSD
- Advanced security included with switch.
- Each user password & name can be up to 15 characters long, and each switch can store up to 63 users.
- Administrator can enable or disable all security features and select which computers each user can access.
- Once security is enabled, a user or administrator must "login" in order to access any of the computers connected to the switch.

Download Matrix Switcher Control Program

Installation instructions - switch-control-program-install.txt (1.0 KB)
Release notes - switch-control-program-rls (1.0 KB)
Download switch control program installation - setup.zip (1.3 MB)

Application Drawings

KVM Matrix Switch

How to let up to eight users control 32 USB-enabled PC, SUN and MAC computers

Application Notes

Multiple Users Can Control Multiple USB Computers Located 1,000 Feet Away Using CAT5 UTP Cable.

Interconnect the UNIMUX™ USB KVM Matrix Switch, UNIMUX-nXm-U, with XTENDEX® USB KVM Extenders via CAT5, ST-C5USBV, to allow up to eight users to individually command or simultaneously share up to 32 USB computers located up to 1,000 feet away using CAT5 UTP cable.
Switch Audio and Video Between Multiple Users and USB Computers

The Audio Matrix Add-On Switch (UNIMUX-SA-8X8 or UNIMUX-SA-16X16) enables switching of audio and video between multiple users and USB computers when used with compatible KVM Matrix Switches. Audio switching is controlled by the main KVM switch.
Compatible KVM Matrix Switches:
» UNIMUX-SA-8X8 compatible with UNIMUX-2X8-UA, UNIMUX-4X8-UA, UNIMUX-8X8-UA
» UNIMUX-SA-16X16 compatible with UNIMUX-2X16-UA, UNIMUX-4X16-UA, UNIMUX-8X16-UA

CAD Drawings

USB KVM Matrix Switch (UNIMUX-2X8-U)
USB KVM Matrix Switch (UNIMUX-2X16-U)
USB KVM Matrix Switch (UNIMUX-2X32-U)
USB KVM Matrix Switch (UNIMUX-4X8-U)
USB KVM Matrix Switch (UNIMUX-4X16-U)
USB KVM Matrix Switch (UNIMUX-4X32-U)
USB KVM Matrix Switch (UNIMUX-8X8-U)
USB KVM Matrix Switch (UNIMUX-8X16-U)
USB KVM Matrix Switch (UNIMUX-8X24-U)
USB KVM Matrix Switch (UNIMUX-8X32-U)

Optional

Audio Matrix Add-On Switch

Controlled through USB KVM Matrix Switch operations.
3.5mm female stereo audio jacks for inputs and outputs.
One female DB9 connector for connecting to the compatible USB KVM Matrix Switch (UNIMUX-nXm-UA).
Supported USB KVM Matrix Switches feature a male DB9 connector for connecting the Audio Matrix Add-On Switch.
- UNIMUX-SA-8X8 compatible with UNIMUX-2X8-UA, UNIMUX-4X8-UA, UNIMUX-8X8-UA
- UNIMUX-SA-16X16 compatible with UNIMUX-2X16-UA, UNIMUX-4X16-UA, UNIMUX-8X16-UA
Input impedance: 10k Ohms.
Signal-to-Noise Ratio (SNR): 87 dBA
Frequency Response: 20 Hz to 20 kHz, ±0.5 dB.
Total Harmonic Distortion + Noise: 0.02% at 1kHz.
Requires powered speakers or headphones.
Powered by the USB KVM Matrix Switch.

Downloads

Data Sheet:

USB KVM Matrix Switch 512 KB

User Manual:

Installation and Operation Manual: For units with firmware version 2.1 and later. 1.4 MB
Note: The version number can be found in the splash screen viewed when the UNIMUX switch is first powered ON. If no version is shown, it is an earlier model.
Installation and Operation Manual: For units with earlier firmware versions. 705 KB
Note: The version number can be found in the splash screen viewed when the UNIMUX switch is first powered ON. If no version is shown, it is an earlier model

Firmware:

NTI Switch Control Program: Download NTI Switch Control Program

Knowledge Base:

VGA USB KVM Matrix Switch

"Paragon Technology Group is a residential systems integration company. We recently had an application that required us to control 3 computers from various locations in a home, being able to view the computer's displays on televisions. Our design consisted of RF keyboard/mouse combinations and NTI's UNIMUX-2X8-U, with the switching driven by a Crestron® control processor.

We were quite pleased to find that the setup worked flawlessly right out of the box. The Crestron control module we downloaded from the NTI website did not require any modification from our Crestron programmer. The setup works exactly as we expected it to, and we did not have to spend a lot of time debugging the gear to get it operational.

We will definitely use the UNIMUX® USB Matrix KVM Switch in future installations!"

Dutch Holland

Paragon Technology Group

Basalt, CO

(0)Rackmount USB KVM Matrix Switches

NTI Part #	Number of Users	Number of Ports	Rack Units	Rack Size WxDxH (in.)
UNIMUX-2X8-U	2	8	1RU	19x10x1.75
UNIMUX-4X16-U	4	16	2RU	19x12x3.5
UNIMUX-8X8-U	8	8	3RU	19x12x5.25

Collapse all Expand all Related Items :

(0)USB KVM Matrix Switch Compatible with Audio Matrix Add-On

NTI Part #	Number of Users	Number of Ports	Rack Units	Rack Size WxDxH (in.)
UNIMUX-2X8-UA	2	8	1RU	19x10x1.75
UNIMUX-2X16-UA	2	16	2RU	19x12x3.5
UNIMUX-4X8-UA	4	1	2RU	19x10x1.75
UNIMUX-4X16-UA	4	16	2RU	19x12x3.5
UNIMUX-8X8-UA	8	8	3RU	19x12x5.25
UNIMUX-8X16-UA	8	16	3RU	19x12x5.25

(0)VGA + USB Interface Cable - Male to Male

NTI Part #	Length	Qty
USBVEXT-6-MM	6 feet

Top Please enter a quantity of at least one product
