XTENDEX® ST-C6USBHE-HDBT (Remote and Local Unit)

HDMI USB KVM Extender over HDBaseT

NTI Part #: ST-C6USBH-HDBT-Group

Also known as: HDBaseT extender, HDMI USB KVM extender, extend keyboard monitor mouse, high definition 1080p IR extender, HDMI IR RS232 transmitter/receiver, remote HDMI USB touch screen monitor, HDTV video USB keyboard mouse Ethernet balun

Product Highlights

Extend 1080p video, USB, IR and RS232 to 328 ft via one CATx cable.
USB connector for USB touch screen monitor, CAC card reader, or interactive whiteboard.
Optional Ethernet port for network device.
Only one power supply required.

Designed and Manufactured in the U.S.A.
ROHS Compliant HDMI USB KVM Extender over HDBaseT
HDMI USB KVM Extender over HDBaseTDigital Signage Product
CE Compliant HDMI USB KVM Extender over HDBaseT

Scroll Down to Get Quote

Overview

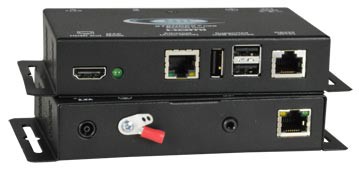

The XTENDEX® HDMI USB KVM Extender over HDBaseT provides remote KVM (USB keyboard, USB mouse and HDMI monitor) access to a USB computer up to 328 feet away over a single CAT5e/6/7 cable using HDBaseT technology. Each video extender consists of a local unit that connects to a computer, and a remote unit that connects to a keyboard, monitor and mouse.

Transmits an uncompressed high speed HDMI signal over one CAT5e/6/7 cable.
Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
Only one power supply is necessary to power both the local and remote units.
HDMI features supported:
- x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
- Bandwidth up to 154 MHz (3.76 Gbps)
- Support for CEC (consumer electronic control) compatible devices.
- Lip Sync
HDCP compliant.
Supports the DDC2B protocol.
Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control.
USB ports for keyboard and mouse.
- Keyboard and mouse are hot-pluggable.
- Keep-alive keyboard/mouse emulation for flawless operation.
Features an additional USB port on the remote unit for a touch screen monitor, interactive whiteboard, or CAC card reader.
Bi-directional RS232 interface.
Optional Ethernet port on the transmitter and receiver for connecting network devices such as 100Base-T routers, hubs, smart TVs or smart Blu-Ray players.
Integrated mounting brackets for easy surface/wall mounting.
High quality, rugged steel construction with durable powder coat finish.

Specifications

Local Unit

Compatible with a USB computer (PC, SUN, MAC) or HDTV video source with HDMI output.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
One female HDMI connector.
One female USB Type B connector.
IR extension support: one female 3.5 mm port for IR emitter (included).
RS232 support – one female RJ45 port.
Optional female RJ45 100BaseT Ethernet port for connecting standard network device such as a 100Base-T router or hub.
One female RJ45 port for sending/receiving high definition video, audio, IR, USB, RS232 and DDC signals.

Dimensions

WxDxH (in): 4.96x3.03x1.06 (126x77x27 mm).

Power

Powered from a single power supply attached to either the local or remote unit.
Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)

MTBF

ST-C6USBH-HDBT: 227,958 hours

Environmental

Operating temperature: 32 to 122°F (0 to 50°C).
Storage temperature: -22 to 140°F (-30 to 60°C).
Operating/storage relative humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

CE, RoHS
TAA complaint

Warranty

Two years

Remote Unit

Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
One female HDMI connector.
IR extension support: one female 3.5 mm port for IR receiver (included).
Two female USB Type A connectors.
- Compatible with most USB keyboards and mice, including Logitech M570 wireless mouse and Logitech K400 wireless keyboard.
Additional female USB Type A connector for a USB 2.0 (low/full speed) device - USB touch screen monitor, CAC card reader, interactive whiteboard, or barcode scanner.
- USB maximum data rate: 12 Mbps.
- Supported touch screen monitors: Microtouch 3M, ELO 1529L 3000 Series, ELO 3202L, Dell S2240T, Smart Podium ID422w, Hope Industrial HIS-RL17, NEC MultiSync E222W, Industrial Electronic Devices Inc IWS-240t-G3, Zytronics CML-170, Pulse IR TSV4001/DT40 and HP Compaq.
- Supported interactive whiteboards: SMART Board™ SB640
- Supported card readers: Athena, Cherry, Gemalto, Generic USB, and Dell smart card/keyboard combo.
RS232 support – one female RJ45 port.
Optional female RJ45 100BaseT Ethernet port for connecting standard network device such as a 100Base-T router or hub.
One female RJ45 port for sending/receiving high definition video, audio, IR, USB, RS232 and DDC signals.

Max Distance

328 feet (100 meters) over CAT5e/6/7 cable.

Application Drawings

How to extend HD1080p, Multi-channel Audio, USB keyboard/mouse, IR, RS232 and optional Ethernet up to 328 feet over HDBase-T technology
