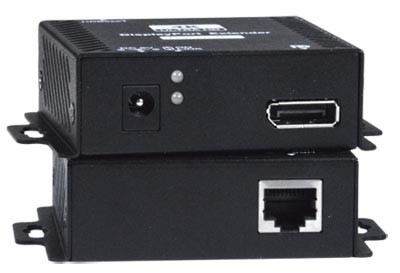

XTENDEX® ST-C6DP4K-131 (Remote & Local Unit)
XTENDEX® ST-C6DP4K-131 (Remote & Local Unit)

4K 9Gbps DisplayPort HDBase-T Extender via One CAT6a/7

NTI Part #: ST-C6DP4K-131
Extend an Ultra-HD 4Kx2K 30Hz 4:4:4 DisplayPort display up to 131 ft (40 meters)

Overview

The XTENDEX® 4K DisplayPort HDBase-T Extender transmits uncompressed digital Ultra-HD 4Kx2K 30Hz 4:4:4 DisplayPort video and audio signals up to 131 feet over a single CAT6a/7 solid cable using HDBase-T technology. Each video extender consists of a local unit that connects to a DisplayPort source and a remote unit that connects to a DisplayPort display.

The XTENDEX® 4K DisplayPort HDBase-T Extender transmits uncompressed digital Ultra-HD 4Kx2K 30Hz 4:4:4 DisplayPort video and audio signals up to 131 feet over a single CAT6a/7 solid cable using HDBase-T technology. Each video extender consists of a local unit that connects to a DisplayPort source and a remote unit that connects to a DisplayPort display.

  • Transmits an uncompressed DisplayPort signal over a single CATx cable.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30Hz 4:4:4, and HDTV resolutions to 1080p @60Hz.
    • Refer to the resolution chart in the specifications section for resolutions using different CATx cable types and lengths.
  • Compliant with DisplayPort v1.2a specifications.
  • Video bandwidth up to 9Gbps.
  • HDCP compliant.
  • Integrated mounting brackets for easy surface/wall mounting.
