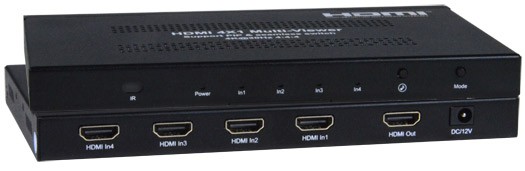

Low-Cost 4K 6.75Gbps HDMI Quad Screen Splitter/Multiviewer

The SPLITMUX® Low-Cost 4K HDMI Quad Screen Multiviewer allows Ultra-HD 4Kx2K 30Hz video from four different sources to be simultaneously displayed on a single HDMI monitor in real time. It is capable of displaying the video signals in quad, dual, PiP, or full screen mode.

• Quad, Dual, Picture in Picture, and Full Screen display modes.
• Supports Ultra-HD resolutions up to 3840x2160 @30Hz YUV 4:4:4, and HDTV resolutions to 1080p @60Hz.
• HDMI features supported:
  • HDMI 1.4
  • Up to 36-bit Deep Color
  • RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Dolby, LPCM, DTS
  • Bandwidth up to 6.75 Gbps
• Accepts HDCP 1.4/2.2 signals.
• Seamlessly switch between the four sources.
• Switch audio independently of video from active HDMI video sources (video sources turned on and being displayed).
  • E.g. source 3 and source 4 video are active while only source 3 audio is active).
• Control the multiviewer through front panel buttons or IR remote.
• Mounting brackets included for easy surface/wall mounting.
