VGA video + audio matrix switch, 8 in 4 out, Ethernet/RS232 control, rackmounted
VGA video + audio matrix switch, 8 in 4 out, Ethernet/RS232 control, rackmounted

VGA video + audio matrix switch, 8 in 4 out, Ethernet/RS232 control, rackmounted

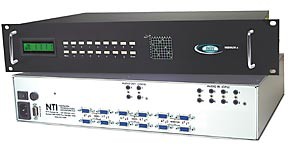

NTI Part #: SM-8X4-AV-LCD
Audio/Video Matrix Switch, 8 input and 4 output

Overview

Audio/Video Matrix Switch, 8 input and 4 output

Specifications

Video Input
  • Eight Female 15-pin HD connectors.
  • Impedance: 75 Ohms.
Video Output
  • Four Female 15-pin HD connectors.
  • 1920x1200 video resolution with no degradation.
  • Impedance: 75 Ohms.
  • Bandwidth: 200 Mhz, fully loaded.
Audio Input
  • Eight 3.5 mm stereo audio jacks.
  • Impedance: 10k Ohm.
  • Maximum Input Level: 1 Vrms or 2.5Vp-p.
Audio Output
  • Four 3.5 mm stereo audio jacks.
  • Drives 8-Ohm speakers.
  • Unbalanced Gain: user defined.
  • Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB.
  • Total Harmonic Distortion + Noise: 0.01% at 1 kHz.
  • Gain Adjustment: -20 dB to +10 dB in 2 dB steps.
  • 200 mW RMS of continuous power per output.
  • When switching ports, audio mutes until video has been synchronized.
Power
MTBF
  • 59,106 hrs.
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -20 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
Cables
  • Interface cables between the computers and the switch are required for proper operation.
  • Recommended NTI video cables:
    • VGA interface cable (VEXT-xx-MM).
    • VGA to BNC cable (VINT-5B-6).
  • Recommended NTI audio cables:
    • SA-xx-MM.
  • Cables not included.
Warranty
  • Two years
