Rackmount Console Terminal Drawer
with SSH Secure Console Switch

Securely control up to 32 RS232 serial devices from 1RU of rack space.

Also known as: rackmount console terminal, TELNET integrated rackmount console terminal and SSH serial console switch,
RS232 terminal, terminal LCD monitor keyboard drawer with built-in secure console switch, telnet terminal emulation,
rack mount console drawer.
RoHS Compliant Rackmount Console Terminal Drawer

Designed and Manufactured in the U.S.A.		 Console Terminal Drawer Switch
zoom Click here to zoom in on image

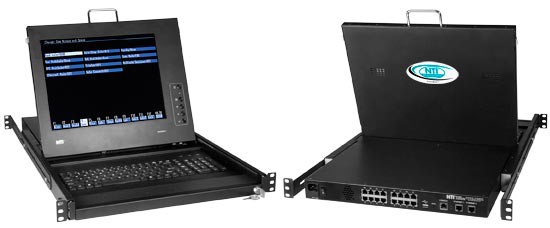

RACKMUX-T15-N-S16 (Front & Back)

Additional Product Information

Keyboard Layouts Keyboard Layouts:
RACKMUX-T15-N-Sx

Features & Applications

The RACKMUX® Terminal Drawer with Secure SSH Console Switch combines a Terminal Drawer and an integrated SSH Console Switch delivering secure management of up to 32 serial devices via the Internet, TCP/IP network, or dial-up modem connections in only 1RU of space.
  • Available with built-in 4, 8, 16, 24, or 32-port Secure SSH Console Switch.
  • Forward-folding 15" LCD with 800x600 resolution.
  • Torque-friction hinges—monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with large padded wrist-rest and 17-key numeric keypad.
  • Front panel security lock.
  • Emulates many terminal types.
  • Select from 16 foreground and 16 background colors.
  • Available with optional anti-glare protective glass for the LCD.
  • Available with optional mounting bracket for two-post style telco rack.

Specifications

Compatibility
  • Compatible with any SUN, HP or PC-based headless server.
  • Supports most devices with an RS232 serial port such as routers, bridges, firewalls, and hubs.
Keyboard
  • Available in multiple languages: English (US), English (UK), French, German, Italian, Spanish, Turkish.
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
Environmental
  • Operating temperature: 32°F to 104°F (0°C to 40°C).
  • Storage temperature: -4°F to 140°F (-20°C to 60°C).
  • Operating and Storage Relative Humidity: 5 to 95% non-condensing RH.
Dimensions
  • WxDxH (mm): 483x556x44.
  • Weight: 11.8 kg.
  • Drawer is adjustable to various rack depths from 558mm deep to 990mm deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years
Rackmount Console Terminal Drawer Specifications
SSH Secure Console Switch Specifications
Serial Port to SERIMUX Adapter
DB9F-RJ45F

Modem to SERIMUX Adapter
DB25M-RJ45F-C

Rackmount Console Terminal Drawer
with SSH Secure Console Switch

NTI Part # # of Ports
RACKMUX-T15-N-S4Terminal drawer with 4-port SSH console serial switch
RACKMUX-T15-N-S8Terminal drawer with 8-port SSH console serial switch
RACKMUX-T15-N-S16Terminal drawer with 16-port SSH console serial switch
RACKMUX-T15-N-S24Terminal drawer with 24-port SSH console serial switch
RACKMUX-T15-N-S32Terminal drawer with 32-port SSH console serial switch
RL-T15-TELMounting bracket for two-post style telco rack

Compatible Adapters

NTI Part #Description
DB25M-RJ45F-CAdapt a modem to the SERIMUX
DB9F-RJ45FAdapt DB-9M serial ports to the SERIMUX
DB25M-RJ45F-TAdapt DB-25F serial ports to the SERIMUX
DB25F-RJ45FAdapt DB-25M serial ports to the SERIMUX
