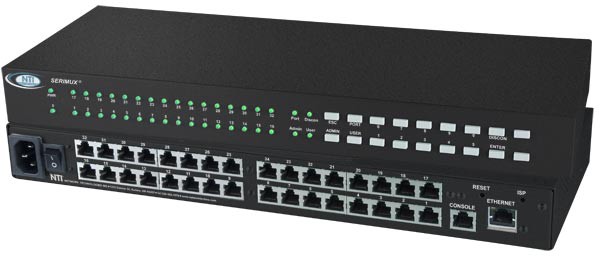

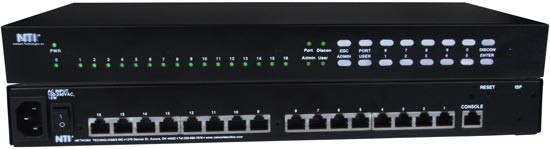

SERIMUX-CS-32E (Front & Back)

Additional Images

NTI Part #: SERIMUX-CS-4-Group
The SERIMUX® Console Switch gives IT managers the ability to cost effectively manage serial devices, including servers, switches, routers, and telecom gear. The switch is controlled via an ASCII terminal with menu-driven integrated software or the front panel keypad.
Also known as: console switch, serial port switches, RS232 switch, serial switch box, UNIX SUN workstation switch, sun switch, console switcher, serial port sharing switch, network server management solution.
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant Console Serial Port Switch with Ethernet Control Option
  • CE Compliant Console Serial Port Switch with Ethernet Control Option
Scroll Down to Get Quote
The SERIMUX ® Console Switch gives IT managers the ability to cost effectively manage serial devices, including servers, switches, routers, and telecom gear. The switch can be controlled via an ASCII terminal with menu-driven integrated software, the front panel keypad, or optional Ethernet interface.
  • Eliminates the need to connect each device to an ASCII terminal or PC.
  • Connect up to 32 devices with different baud rates, parity, and character length. Each switch also has one RJ45 connector for a local terminal.
  • Provides out-of-band access to network devices (servers, routers, network switches, and any other network devices allowing console operation using RS232).
  • Power cycle without halting SUN host computer.
    • No inadvertent "break" signals are generated to cause unintentional rebooting of SUN computers.
  • Dual power option creates a redundant power system protecting the console switch from any power failure issues.
  • High quality, rugged steel construction with durable powder coat finish.
  • Command Line Interface via Telnet for advanced management functions.
  • Connects to console serial ports using standard CAT5/5e/6 cables and cable adapters.
    • Maximum cable length is 100 feet (30 meters).
  • Two operator levels (administrator and user).
  • Switching is simplified with programmable device names and menu-driven device selection.
    • All configuration parameters are stored in non-volatile EEPROM.
  • Built-in data buffers save the most recent RS232 console output from each connected device, which simplifies troubleshooting failures.
  • Local commands can be directed via VT52, VT100, ANSI serial console, a PC with a terminal emulation program, or any compliant terminal.
  • Gain access to servers without interrupting service to end-users; maintain optimal up-time.
  • Manage server farms or data centers via serial ports and standard external modems or through optional Ethernet interface using Telnet or Web interface.
  • 1RU rackmount case is standard.
Compatibility
  • Supports most devices with an RS232 serial port.
Serial Interface
  • 4, 8, 16, 24 or 32 RJ45 EIA-232 serial port connectors.
  • One RJ45 EIA-232 console port connector.
  • Flow control: Hardware (RTS/CTS), Software (XON, XOFF), both or none.
  • Signals: TXD, RXD, DSR, DTR, CTS, RTS, DCD
  • Data transfer rate: up to 115.2K baud between two ports.
    • Two ports can be at different baud rates.
Network Interface (Optional)
  • 10/100 BaseT Ethernet port with RJ45 connector.
  • Supports static and dynamic IP addresses.
Power
  • Input Voltage: AC 100 - 240V, 50 - 60 Hz
  • Optional dual power available on all models.
Power Consumption
Model Power (W) Model Power (W)
4-port 5 24-port 10
8-port 5 32-port 10
16-port 10
MTBF
MTBF
NTI Part # MTBF (hrs) NTI Part # MTBF (hrs)
SERIMUX-CS-4 57,847 SERIMUX-CS-4E 50,793
SERIMUX-CS-4DP 57,695 SERIMUX-CS-4EDP 50,661
SERIMUX-CS-8 54,652 SERIMUX-CS-8E 48,506
SERIMUX-CS-8DP 54,526 SERIMUX-CS-8EDP 48,406
SERIMUX-CS-16 53,238 SERIMUX-CS-16E 47,383
SERIMUX-CS-16DP 53,107 SERIMUX-CS-16EDP 47,280
SERIMUX-CS-24 50,304 SERIMUX-CS-24E 45,045
SERIMUX-CS-24DP 50,198 SERIMUX-CS-24EDP 44,959
SERIMUX-CS-32 48,240 SERIMUX-CS-32E 43,383
SERIMUX-CS-32DP 48,143 SERIMUX-CS-32EDP 43,304
Adapters
  • Four cable adapters are included with the SERIMUX.
    • DB-25F to RJ45 console adapter.
    • DB-9F to RJ45 console adapter.
    • DB-25M to RJ45 console adapter.
    • DB-25M to RJ45 modem adapter.
  • Additonal adapters available.
  • Pinout Diagrams are on individual adapter pages.
Protocols (For Optional Ethernet Control)
  • HTTP, HTTPS, ICMP, DHCP.
  • TCP/IP, SSL, Telnet.
Environmental
  • Operating temperature: 32 - 100°F (0 - 38°C).
  • Storage temperature: -20 - 140°F (-30 - 60°C).
  • Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years
  • Front panel keypad.
    • Secured by a user-defined numeric password.
  • Menu-driven integrated software via serial terminal console.
  • Optional Ethernet Control.
    • Configuration and control can be done over the Internet via Web Interface or Telnet ( view product demo ).
      • To connect to the SERIMUX ports via the web interface, install any version of Java 7. Note: this feature is not compatible with Java 8.
Command Line Interface
  • Remote administration and maintenance of the SERIMUX Console Serial Port Switch.
  • Execute frequently performed configuration tasks through script files.
  • Save the configuration of the switch, and perform configuration restoration if needed.
  • Restore default configuration parameters to specific parts of the switch, while leaving other custom configuration parameters intact.
Administrative Controls
  • View and/or modify port parameters.
  • View and/or modify user passwords and parameters.
  • Restore default configuration parameters.
  • Connect or disconnect port connections.
  • Change/disconnect users, administrators, passwords, etc.
  • Initiate modem connection to local ports.
  • Inspect buffered data.
  • View/delete port-buffer (data-log) contents.
  • User passwords become "invisible" while viewing the buffers.

Application Drawings

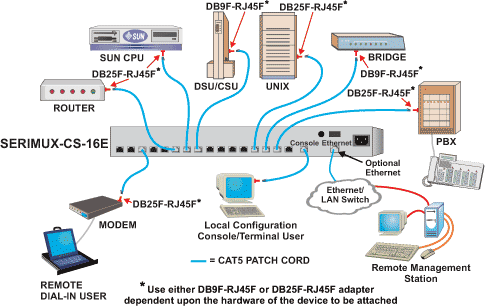

  • SERIMUX Console Serial Port Switch Application Drawing
    SERIMUX Console Serial Port Switch Application Drawing

Application Notes

  • Dual Redundant Secure Access to Serial Ports
    Loading image...
    To gain dual redundant secure access to the serial ports of servers, begin by connecting a server to the console port of the SERIMUX-CS-xx. Then, configure a serial port on the SERIMUX-CS-xx to a user port and connect an additional server to that port. Use Secure Shell to access one of the servers connected to the internet. Then, using a terminal program such as minicom, tip or cu, access the SERIMUX-CS-xx Console Switch. Log in to the SERIMUX-CS-xx Console Switch to access any of the serial management ports of the servers as shown below.
  • Connecting RJ45 Port on a NTI Console Serial Switch to RJ45 Port on Digi PortServer II
    Loading image...
    Connect a RJ45 port on a NTI Console Serial Switch (SERIMUX-CS-x or SERIMUX-S-x) to a RJ45 port on the Digi PortServer II to replace terminals. Using CAT5/5e/6 cable, arrange the wires in a RJ45 plug on each end to match the pinout for the corresponding port it will be connected to.
    Signal Flow Diagram
    From Digi PortServer RJ-45 Signal Direction Signal To NTI Console Switch RJ-45
    1 DSR ← DTR 7
    2 RTS → CTS 1
    3 Shield Do Not Connect
    4 TxD → RxD 3
    5 RxD ← TxD 6
    6 GND ↔ GND 4
    7 CTS ← RTS 8
    8 DTR → DSR 2
    Do Not Connect DCD 5
Data Sheet:
User Manual:
Product Perspective:
Firmware:
Installation Guide:
Knowledge Base:
