Rackmount KVM Drawer with HDMI Multiviewer & USB KVM Switch

NTI Part #: RACKMUX-D17HR-N-SUSBHD4-Group

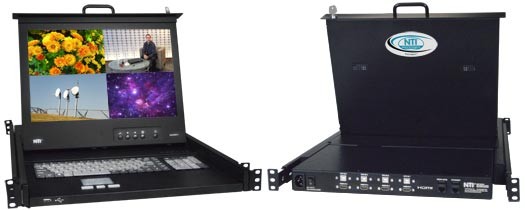

RACKMUX-D17HR-N-SUSBHD4 (Front & Back)
RACKMUX-D17HR-N-SUSBHD4 (Front & Back)
NTI Part #: RACKMUX-D17HR-N-SUSBHD4-Group
The RACKMUX® KVM Drawer with Built-in Quad Screen Multiviewer & USB KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a quad screen multiviewer with USB KVM switch in a space-saving 1RU industrial strength drawer. Simultaneously display video from four different computers on the KVM drawer's LCD display.
Also known as: rackmount kvm drawer with built-in HDMI multiviewer and USB KVM switch, rackmount DVI USB keyboard monitor drawer, 1RU LCD console drawer, 4-port USB HDMI KVM switch quad splitter
Product Highlights
  • Hi-Res 1920x1200 17.1" LCD
  • Built-in Multiviewer & USB KVM Switch
  • Quad, Picture in Picture, Full Screen, and Custom Display Modes
  • Single-Person Installation
  • Designed and Manufactured in the U.S.A.
Scroll Down to Get Quote

Description

The RACKMUX® KVM Drawer with Built-in quad screen multiviewer & USB KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a Quad Screen Multiviewer with USB KVM switch in a space-saving 1RU industrial strength drawer.

  • Available with forward-folding 17.1" Active Matrix LCD DVI flat panel monitor.
  • Video Resolution: 1920x1200.
  • Integrated HDMI multiviewer and USB KVM switch.
    • Simultaneously display video from four different computers on the KVM drawer's LCD display.
    • Quad, Picture in Picture, Full Screen, and Custom display modes.
  • Control up to 4 USB enabled computers with HDMI/DVI outputs.
  • Any DVI source or display can be connected by using DVI-HD-xx-MM cable (not included).
    • Use DVIA-HD-CNVTR-LC or DVI-HD-CNVTR DVI + Audio to HDMI Converters to pass and independently switch audio signals to the drawer.
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector
Dimensions
  • WxDxH: 19x21.9x1.75 Inches. (483x556x44 millimeters)
  • Drawer mounting is adjustable to various rack depths from 22" (559 mm) deep to 39" (991 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Warranty
  • Two years
Package Includes
  • KVM Drawer
  • IEC Power Cord, country-specific
  • DB9 female to RJ45 female adapter
  • 5-ft CAT5 patch cable
  • CD with manual and drawer installation manual
  • Single-person installation mounting kit

Rackmount DVI KVM Drawer Specifications
SPLITMUX Quad Screen Multiviewer with Built-In USB KVM Switch

Application Drawings

  • Rackmount KVM Drawer with HDMI Multiviewer & USB KVM Switch
    Rackmount KVM Drawer with HDMI Multiviewer & USB KVM Switch

(0)Rackmount KVM Drawer with HDMI Multiviewer and USB KVM Switch

NTI Part # Screen Size Number of Ports Video Resolution Qty
RACKMUX-D17HR-N-SUSBHD4 17.1" 4 1920x1200

Collapse all Expand all Related Items :

(0)HDMI Male-Male Cables

NTI Part # Length Qty
HD-3-MM 3 feet
HD-6-MM 6 feet
HD-10-MM 10 feet
HD-15-MM 15 feet
HD-20-MM 20 feet
HD-30-MM 30 feet
HD-50-MM 50 feet
HD-75-MM 75 feet
HD-100-MM 100 feet

(0)DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Qty
DVI-HD-1M-MM 1 meter
DVI-HD-2M-MM 2 meters
DVI-HD-3M-MM 3 meters
DVI-HD-5M-MM 5 meters

(0)USB 2.0 A-B Cables

NTI Part # Length Qty
USB2-AB-05M-5T 0.5 meters
USB2-AB-3-5T 3 feet
USB2-AB-6-5T 6 feet
USB2-AB-15-5T 15 feet
USB2-AB-10-5T 10 feet
