Extend an HDMI display up to 394 feet away from the source using gigabit Ethernet. Use with cascaded network switches to extend the length long distances.

Low-Cost HDMI Over Gigabit IP Extender with IR and Power over Ethernet (POE) (Next Generation Model)

NTI Part #: ST-IPHD-POELC-V4-Group

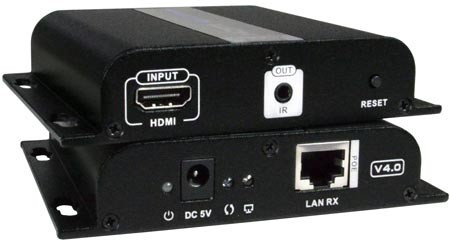

XTENDEX® ST-IPHD-POELC-V4 (Local & Remote Unit)
XTENDEX® ST-IPHD-POELC-V4 (Local & Remote Unit)
NTI Part #: ST-IPHD-POELC-V4-Group

The XTENDEX® Low-Cost HDMI Over Gigabit IP Extender with IR and POE multicasts digital video and audio signals to one or more receivers up to 394 feet away over a 1000 Base-T Gigabit Network connected with CAT6/6a/7 cable.Each Low-Cost HDMI Over Gigabit


IP Extender with IR and POE consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.


NOTE: ST-IPHD-POELC-V4 models are NOT compatible with ST-IPHD-POELC(-CLR) models due to different chipsets being used.
  • Extend HD 1080p Video up to 394 Feet via One CATx Cable
  • Use with Cascaded Network Switches to Extend to 1,575 Feet
  • Supports Point-to-Point, Point-to-Many, & Many-to-Many connections
  • Power over Ethernet (POE) – No Power Supply Required
  • ROHS Compliant Low-Cost HDMI Over Gigabit IP Extender with IR and Power over Ethernet (POE) (Next Generation Model)
  • CE Compliant Low-Cost HDMI Over Gigabit IP Extender with IR and Power over Ethernet (POE) (Next Generation Model)
  • FCC Compliant Low-Cost HDMI Over Gigabit IP Extender with IR and Power over Ethernet (POE) (Next Generation Model)
Scroll Down to Get Quote

Overview

The XTENDEX® Low-Cost HDMI Over Gigabit IP Extender with IR and POE multicasts digital video and audio signals to one or more receivers up to 394 feet away over a 1000 Base-T Gigabit Network connected with CAT6/6a/7 cable.

Each Low-Cost HDMI Over Gigabit IP Extender with IR and POE consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.

  • Supports HDTV resolutions to 1080p.
    • Extend up to 394 feet (120 meters) with CAT6/6a/7 cable.
    • Extend up to 328 feet (100 meters) with CAT5e cable.
  • Cascade network switches to extend the length long distances.
    • Up to three switches can be cascaded.
    • The max cable length between the first switch/transmitter and the last switch/receiver is 1,575 feet (480 meters) for CAT6/6a/7 or 1,312 feet (400 meters) for CAT5e cables.
    • The max cable lengths between switches is switch dependent, but 394 feet (120 meters) is typical with CAT6/6a/7 cable.
  • Power over Ethernet (PoE) – power supply not required at the local or remote unit.
  • Ideal solution for digital signage applications.
  • Broadcast real-time HDMI video and audio signals to multiple display locations with a managed or unmanaged (also known as non-managed) network switch.
  • Transmits an HDMI signal over one CATx cable.
  • Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control.
  • Plug-and-Play installation allows receivers to find the transmitters automatically on the same subnet. (Network configuration may be required for managed network switch.)
  • Easily expandable. Add remote units as you add monitors.
  • Inexpensive CATx cable replaces bulky video cables.
  • Supports 1000 Base-T Ethernet connection.
  • Built in default EDID table.
  • HDMI 1.4 and HDCP 1.4 compliant.
  • Support for multiple transmitters requires a managed network switch with VLAN support. Standard LAN switches can only support one transmitter.
    • The managed switch must support port-based IEEE 802.1Q VLAN.
    • Each VLAN acts as a separate HDMI Over IP Channel on the network.
      • Each VLAN channel supports one transmitter.
    • Number of local and remote units that can be used is dependent on the backplane bandwidth of the switch.
  • For a point-to-many connection, a standalone network with an unmanaged network switch, hub, or router can be used instead of a managed network switch.
    • Up to 253 receivers supported.
    • It is not recommended to use any other network devices on this standalone network as it may cause a degradation in performance.
  • Local and remote units must be in the same LAN. The units do not support WAN connections.

NOTE: ST-IPHD-POELC-V4 models are NOT compatible with ST-IPHD-POELC(-CLR) models due to different chipsets being used.

Specifications

Local Unit
  • One female HDMI-A port for source connection.
  • One female 1000Mbps RJ45 port for sending high definition video/audio signals.
  • One female 3.5mm port for IR emitter (included).
    • IR frequency range: 20 to 60 Khz.
  • Supported input resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
  • Encoding delay: 80 ms latency
  • Supports HDCP 1.4
Remote Unit
  • One female HDMI-A port for HDTV or computer display.
  • One female 1000Mbps RJ45 port for receiving high definition video/audio signals.
  • One female 3.5mm port for IR receiver (included).
    • IR frequency range: 20 to 60 Khz.
  • Supported output resolutions: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080p@50/60Hz
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
  • Supports HDCP 1.4
Power
  • Power over Ethernet: With a switch that supports Power over Ethernet, a power supply is not required at the local or remote unit.
    • Compliant with IEEE 802.3af, class 0 standards.
  • Local and remote unit:
    • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (not included).
      • Country-specific AC adapter sold separately
        (PWR-SPLY-IPHDPOELCV4).
    • Output: 5VDC, 3.0A
  • Power consumption:
    • Local: 4.5W
    • Remote: 3.5W
Max Distance
  • 394 feet (120 meters) over CAT6/6a/7 cable.
  • 328 feet (100 meters) over CAT5e cable.
Cables
  • Use HD-xx-MM cable to connect an HDMI source or display up to 50 feet.
  • Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet.
  • Use DP-HD-xx-MM cables to connect a DisplayPort source up to 15 feet away from the transmitter.
  • Use DVI-HD-xx-MM cable to connect a DVI source up to 5 meters.
  • Use CATx solid or stranded straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors.
    • Extend to 394 feet (120 meters) over CAT6/6a/7 cable.
    • Extend to 328 feet (100 meters) over CAT5e cable.
  • Cables not included.
Environmental
  • Operating temperature: 32 to 140°F (0 to 60°C).
  • Storage temperature: -4 to 158°F (-20 to 70°C).
  • Operating and storage relative humidity: 0 to 95% non-condensing RH.
Dimensions
  • WxDxH: 4.44x3.71x0.94 in (113x94x24 mm)
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years.

(0)Low-Cost HDMI Over Gigabit IP Extender with IR and Power Over Ethernet
(POE)

NTI Part # Description Qty
ST-IPHD-POELC-V4 Low-Cost HDMI Over Gigabit IP Extender with IR and POE – Local and Remote Unit
ST-IPHD-R-POELC-V4 Remote Unit with Power over Ethernet
PWR-SPLY-IPHDPOELCV4 5V 3A Power Supply. Compatible with ST-IPHD-POELC-V4
