Low-Cost HDMI Dual Screen Splitter/Multiviewer with IR & RS232

NTI Part #: SPLITMUX-HD-2RSLC

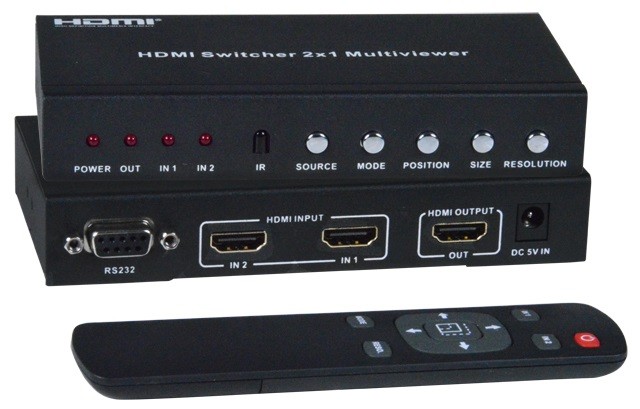

SPLITMUX-HD-2RSLC - Low-Cost HDMI Dual Screen Splitter/Multiviewer with IR & RS232, HDCP compliant
SPLITMUX-HD-2RSLC - Low-Cost HDMI Dual Screen Splitter/Multiviewer with IR & RS232, HDCP compliant
NTI Part #: SPLITMUX-HD-2RSLC
Display real-time 1080p video from two HDMI/DVI sources simultaneously on a single display.
Watch 2 Football Games on a Single TV Screen.

Description

The SPLITMUX® Low-Cost HDMI Dual Screen Splitter/Multiviewer allows you to simultaneously display real-time HDMI/DVI video from two different sources on a single monitor. It is capable of displaying the video sources in dual, PiP or full screen mode.

  • Dual, Picture in Picture, and Full Screen display modes.
  • Supported resolutions:
    • Inputs: HDTV resolutions to 1080p.
    • Output: 1080p, 1080i, 720p, 1024x768, 1360x768.
  • Independent video in to video out resolution.
  • HDMI features supported:
    • Inputs: 24-, 30-, and 36-bit xvYCC, sRGB, and YCbCr.
    • Outputs: 24- and 30-bit sRGB.
    • Audio inputs: two-channel non-mixing stereo with PCM2, 5.1, 7.1 channels, Dolby 5.1, and DTS 5.1 audio.
    • Audio output: two-channel non-mixing stereo with PCM2
    • Bandwidth up to 225 MHz (6.75 Gbps).
      • Inputs: 2.25 Gbps
      • Output: 2.0625 Gbps
  • HDCP compliant (SPLITMUX-HD-2RSLC only).
  • Fluid real-time video performance with 60 frames per second (fps).
    • Accepts video sources with different frame rates, and will display the images correctly.
  • Switch audio independently of video from connected HDMI sources in Dual mode.
  • Any DVI source or display can be connected by using the DVI-HD-xx-MM cable (not included).
    • Use DVIA-HD-CNVTR-LC or DVI-HD-CNVTR DVI + Audio to HDMI Converters to pass and independently switch audio signals to the multiviewer.
  • Use the front panel buttons to locally change ports, select a display mode, or change resolutions.
  • Available with IR and RS232 control (SPLITMUX-HD-2RSLC only).
  • Built-in default EDID table.
