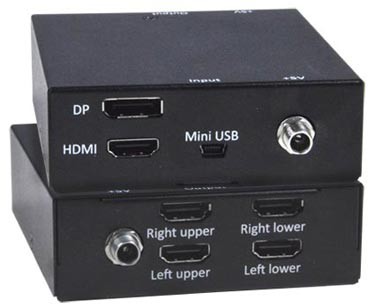

SPLITMUX-VWC-HDDPI-4HDO (Front & Back)
SPLITMUX-VWC-HDDPI-4HDO (Front & Back)

2x2 1080p Video Wall Processor – HDMI/DisplayPort Input & HDMI Outputs

NTI Part #: SPLITMUX-VWC-HDDPI-4HDO-Group
The SPLITMUX® HDMI/DisplayPort Video Wall Processor displays video from one HDMI or DisplayPort video source across four 1080p HDMI monitors to form one large screen – 2x2 video wall.
Also known as: 2x2 video wall processor, HDMI video wall controller, digital signage monitor walls, one DisplayPort video source played on four 1080p displays, 4 displays tiled together form one large screen
  • 2x2 1080p Video Wall Processor – HDMI/DisplayPort Input & HDMI OutputsDigital Signage Product
Scroll Down to Get Quote

Overview

The SPLITMUX® HDMI/DisplayPort Video Wall Processor displays video from one HDMI or DisplayPort video source across four 1080p HDMI monitors to form one large screen – 2x2 video wall.

  • Use to create a 2x2 video wall – 4 monitors tiled together to form one large screen.
  • Supports 1920x1080 and 1920x1200 (WUXGA) input resolutions, and 1920x1080 output resolution (fixed for each port).
  • Cascade processors to create large video walls – 4x4, 8x8, 16x16, 32x32, etc.
  • Compliant with HDMI 1.4 and DisplayPort 1.2a specifications.
  • Fluid, real-time video performance with 60 frames per second (fps).
  • Each monitor simultaneously plays the audio.
    • Supported audio formats: LPCM 2/5.1/7.1, Dolby, DTS.
  • Any DVI source or display can be connected by using the DVI-HD-xx-MM cable (not included).
  • Quick and easy plug-and-play installation - no drivers or software.
  • Ideal for a wide range of digital signage applications, including: retail stores, restaurants, corporate lobbies, entertainment venues, trade shows, airports, and more.

NOTE: Does NOT support HDCP.

Specifications

Inputs
  • One female HDMI connector.
  • One female DisplayPort connector.
  • Compatible with computers and HDTV video sources (satellite receivers, DVD players, etc) with HDMI or DisplayPort video.
  • Supported video input resolutions:
    • HDTV 1080p (1920x1080 @ 60Hz)
    • 1920x1200 @ 60Hz ((WUXGA)
  • One female Mini USB connector – reserved for future use.
  • Does NOT support HDCP.
Outputs
  • Four female HDMI connectors.
  • Supported video output resolutions: HDTV 1080p (1920x1080 @ 60Hz)
    • Fixed for each port.
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
  • Does NOT support HDCP.
Power
  • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (AC adapter included.)
  • Output: 5 VDC, 4A
Dimensions
  • WxDxH (in): 3.62x4.78x1.23 (92x122x31 mm)
Cables
  • Interface cables between the video source/displays and the video wall processor are required for proper operation.
  • Use HD-xx-MM cable to connect an HDMI source or displays.
  • Use DP-xx-MM cable to connect a DisplayPort source.
  • Use DVI-HD-xx-MM cable to connect a DVI source or displays.
  • Cables not included.
Environmental
  • Operating temperature: 32 to 95°F (0 to 35°C).
  • Storage temperature: -4 to 158°F (-20 to 70°C).
  • Operating/storage relative humidity: 5 to 90% non-condensing RH.
Warranty
  • Two years

Application Drawings

  • 2x2 1080p Video Wall Processor – HDMI/DisplayPort Input & HDMI Outputs
    2x2 1080p Video Wall Processor – HDMI/DisplayPort Input & HDMI Outputs

(0)2x2 1080p Video Wall Processor – HDMI/DisplayPort Input & HDMI Outputs

NTI Part # Description Qty
SPLITMUX-VWC-HDDPI-4HDO 2x2 1080p Video Wall Processor – HDMI/DisplayPort Input & HDMI Outputs
