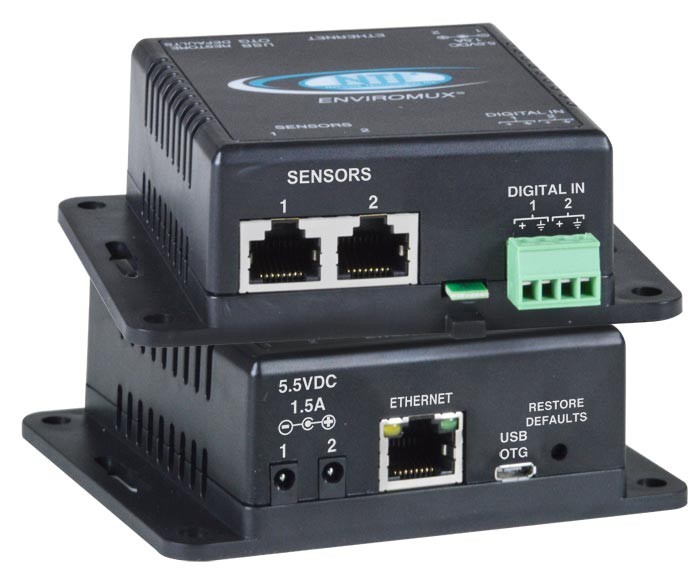

ENVIROMUX-MICRO-T
ENVIROMUX-MICRO-T

Micro Environment Monitoring System / Remote Temperature/Humidity Sensor over IP

NTI Part #: ENVIROMUX-MICRO-Group
The ENVIROMUX-MICRO-T features an integrated temperature sensor, 2 RJ45 temperature/humidity sensor ports & 2 dry contact inputs. The ENVIROMUX-MICRO-TRHP features an integrated temperature/humidity sensor, 2 RJ45 temperature/humidity sensor ports, 2 dry contact inputs & built-in Power over Ethernet (PoE). Use independently or as an IP-connected remote sensor for the ENVIROMUX-2D/5D/16D.
Also known as: Remote Environment Monitoring System, monitor networking closets, server room alert, IP temperature sensor, humidity sensor, computer room humidity probe.
Product Highlight
  • Integrated temp-only or temp/humidity sensor, 2 temp/humidity ports, 2 digital inputs
  • USB port for 3G modem
  • Power over Ethernet option
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant Micro Environment Monitoring System / Remote Temperature/Humidity Sensor over IP
  • CE Compliant Micro Environment Monitoring System / Remote Temperature/Humidity Sensor over IP
Scroll Down to Get Quote

The ENVIROMUX® Micro Environment Monitoring System (EMS) monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP), and/or SMS messages (via external USB 3G modem).


The system functions independently or as an IP-connected remote sensor for the ENVIROMUX-2D/5D/16D. The ENVIROMUX-MICRO-T features an integrated temperature sensor, two RJ45 sensor ports for external temperature/humidity sensors, and two dry contact inputs. The ENVIROMUX-MICRO-TRHP features an integrated temperature/humidity sensor, two RJ45 sensor ports for external temperature/humidity sensors, two dry contact inputs and built-in Power over Ethernet (PoE).

  • ENVIROMUX-MICRO-T
    • 1 integrated temperature sensor
    • 2 RJ45 ports for external temperature/humidity sensors
    • 2 digital inputs sensitive to contact closure
    • Dual DC power provides dual redundancy.
  • ENVIROMUX-MICRO-TRHP
    • 1 integrated temperature/humidity combination sensor
    • 2 RJ45 ports for external temperature/humidity sensors
    • 2 digital inputs sensitive to contact closure
    • Built-in Power over Ethernet and dual DC power provides triple redundancy.
  • Sensors are hot pluggable.
  • Monitor (ping) up to 4 IP network devices – alerts are sent if devices are not responding.
  • Create multiple alerts for any installed sensor.
  • Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert.
    • Configure up to 32 alerts, and one Smart Alert.
  • Alerts are posted in message log, which is accessible through Web user interface.
  • Supports 4 IP network video cameras for live view of any facility.
  • Integrates with various Open Source SNMP monitoring packages -Nagios and MRTG.
    • The unit can be polled via SNMP.
  • USB port for connecting USB modem.
  • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors.
  • Security: HTTPS, TLS v1.2, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
  • Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.
RJ45 Sensor Ports
  • Two RJ45 modular jacks for connecting temperature sensors or combined temperature/humidity sensors.
    • Three levels of user-defined alerts – normal, warning, critical.
Dry Contact Closures
  • Two screw terminal pairs for connecting dry contact devices and the liquid detection sensor.
USB Port
  • One female Micro USB connector for connecting a USB Modem.
Ethernet Port
  • One female RJ45 connector.
  • 10/100 Base-T Ethernet interface.
Protocols
  • HTTP/HTTPS, SNMP V1/V2c, SMTP, TCP/IP, Syslog, SNTP, DHCP, TLS v1.2, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour.
  • Compatible with any SNMP management software.
    • The unit can be polled via SNMP.
  • Operates and configures via HTTP/HTTPS web page.
  • An IP address can be assigned to the ENVIROMUX-MICRO automatically by a DHCP server.
  • Generates SNMP traps, email alerts, syslog messages, and SMS messages (via USB 3G modem).
    • Alerts are posted in event log, which is accessible through Web user interface.
    • Email alerts can be sent to 9 addresses.
      • Users can configure the schedule for when they will be alerted.
      • Email alerts are not compatible with TLS.
    • SMS alerts can be sent to 9 numbers.
Integrated Temperature Sensor
Integrated Humidity Sensor
(ENVIROMUX-MICRO-TRHP only)
  • Applications from 0 to 90% relative humidity at temperatures between -4 to 167°F (-20 to 75°C).
  • Accuracy:
    • 0 to 80% relative humidity, ±3%
    • 80 to 90% relative humidity, ±4%
Dimensions
  • WxDxH in (all options): 4x3.44x1.37 (102x87x35 mm).
  • Includes mounting holes to match rack hole spacing.
Power
  • ENVIROMUX-MICRO-T:
    • Dual DC power provides dual redundancy.
      • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
      • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
        • If both sources have exactly the same voltage, it will draw in part from each of them.
    • 110 to 240 VAC at 50 or 60 Hz via AC adapter.
      • Includes one country-specific AC adapter. The second AC adapter is sold separately (PWR-SPLY-ELC).
    • Input voltage: 5.5VDC ±5%
    • Power consumption: 4W max.
  • ENVIROMUX-MICRO-TRHP:
    • Built-in Power over Ethernet and dual DC power provides triple redundancy.
      • Power over Ethernet standards supported: IEEE 802.3af, 802.3at.
        • Proprietary schemes such as Cisco Discovery Protocol are not supported.
          • Similar legacy switches and routers will have to use PWR-SPLY-ELC.
    • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
    • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
      • If two or more sources have exactly the same voltage, it will draw in part from each of them.
    • 110 to 240 VAC at 50 or 60 Hz via AC adapter (not included).
      • Country-specific AC adapters sold separately (PWR-SPLY-ELC).
    • Input voltage: 5.5VDC ±5%
    • Power consumption: 4W max.
MTBF
  • ENVIROMUX-MICRO-T: 648,857 hours.
  • ENVIROMUX-MICRO-TRHP: 628,394 hours.
Environmental
  • Operating & Storage Temperature: -4 to 167°F (-20 to 75°C).
  • Operating & Storage Relative Humidity: 0 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS.
Warranty
  • Two years

Control Methods

Web Interface (view product demo)
  • Configuration can be done over the Internet/LAN via Web page.
    • When connected as an IP remote sensor for an ENVIROMUX-2D/5D/16D unit, the ENVIROMUX-MICRO is configured via the ENVIROMUX-xD web interface.
  • Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC.
  • Configure sensor thresholds, alarm methods, formats of alerts, and system data log.
  • View/edit sensors' current values, thresholds and alert statuses.
    • All sensors connected to the ENVIROMUX-MICRO can be viewed on one summary page.
    • User configurable settings allow sensors to return to normal status when alert condition clears, without manually acknowledging/dismissing the alert.
  • View/edit entries stored in the system logs.
  • Event log records system alerts.
    • Stores up to 200 entries.
  • Data log records samples of sensor readings per minute.
    • Stores up to 43,000 entries per sensor.
  • The data log can be downloaded as a comma-separated plain text file.
  • Configure IP information (address, subnet mask, default gateway, DNS, etc.), user administrative settings, and data logging settings.
  • Up to 9 users can access the web page at one time.
  • Permissions, schedule and alert methods are configurable for each user.
  • Configure up to 32 sensor conditions (alerts).
  • Configure 1 Smart Alert to use different alert combinations to send alert messages.
Telnet
  • Monitor over the text-based menu system accessible via Telnet.
  • Access is controlled via username/password.
  • System stores encrypted login information.
  • Two user levels: user and administrator.
Network Operation
  • SNMP support, allowing integration into network management platforms.
  • Updating the system firmware.
Open Source Monitoring Integration
Optional Management Software
  • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors.
  • Push configuration changes to multiple connected units in a group at once.
    • E.g. new users, mail server, network settings, security settings, system settings, etc.
  • Choose between Enterprise Management Software or Low-Cost Management Software.
Optional Android App for Tablet/Phone
  • Optional Android App provides an easy-to-use interface for monitoring sensor statuses and acknowledging/dismissing sensor alerts from many ENVIROMUX-MICRO units.

Application Drawings

  • How to Monitor and manage server room environmental and security conditions over IP.
    How to Monitor and manage server room environmental and security conditions over IP.

Application Notes

  • How to Connect Remote Temperature/Humidity Sensors over IP to the ENVIROMUX-2D/5D/16D
    Loading image...
    The ENVIROMUX-MICRO-T(RHP) Remote Temperature/Humidity Sensors over IP can function as an IP-connected remote sensor for the ENVIROMUX-5D. To add a remote IP sensor, access the web interface and select Monitoring > IP Sensors. Click on the "Add New IP Sensor" link on the bottom and key in the description and IP address of the ENVIROMUX-MICRO-T(RHP) to connect it to the ENVIROMUX-5D. Up to eight remote IP sensors can be connected. All sensors connected, including the Remote Temperature/Humidity Sensors over IP, to the ENVIROMUX-5D can be viewed on one summary page.
  • Connect up to 4 Liquid Detection Sensors to a Single Terminal Pair on the ENVIROMUX-MICRO
    Loading image...
    Each screw terminal pair on the ENVIROMUX-MICRO-T(RHP) Environment Monitoring System (EMS) will support up to four rope-style liquid detection sensors.

CAD Drawings

  • ENVIROMUX-MICRO-T(RHP)
    Loading image...

Testimonials

  • "We like that the ENVIROMUX-MICRO-T Environment Monitoring System is very simple to integrate. We also like the fact that we will be able to expand the number of sensors if needed in the future by using the optional management software."

    Michael Traficante
    Target Freight Management Inc
    Pittsburgh, PA

(0)Temperature/Humidity Sensors

NTI Part # Description Qty
ENVIROMUX-MICRO-T Micro Environment Monitoring System, Integrated Temperature Sensor
ENVIROMUX-MICRO-TRHP Micro Environment Monitoring System, Integrated Temp/Humidity Sensor, POE
