Low-Cost Environment Monitoring System – Supports up to 24 Temperature Sensors

NTI Part #: E-1W-Group

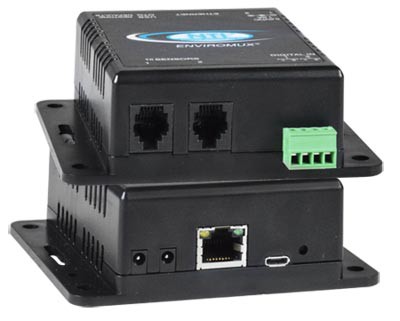

The ENVIROMUX® Environment Monitoring System (EMS) with 1-Wire Sensor Interface monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP), and/or SMS messages (via email-to-SMS).

The IoT system supports 24 single reading 1-wire sensors in any combination – temperature, humidity, dew point, thermocouple or digital inputs – and 2 separate digital inputs. It functions independently or as an IP-connected remote sensor for the E-2D/5D/16D.
Also known as: Remote IoT 1-wire environment monitoring system, EMS, monitor networking closets, server room alert, IP temperature humidity sensor, web enabled thermostat, Internet of Things thermometer alarm logger.
  • 2 RJ11 connectors for daisy-chaining up to 24 single-reading 1-wire sensors
  • 2 digital inputs for contact closure
  • Power over Ethernet option
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant Low-Cost Environment Monitoring System – Supports up to 24 Temperature Sensors
  • CE Compliant Low-Cost Environment Monitoring System – Supports up to 24 Temperature Sensors
Scroll Down to Get Quote

Overview

The ENVIROMUX® Environment Monitoring System (EMS) with 1-Wire Sensor Interface monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP), and/or SMS messages (via email-to-SMS).


The IoT system supports 24 single reading 1-wire sensors in any combination – temperature, humidity, dew point, thermocouple or digital inputs – and 2 separate digital inputs. It functions independently or as an IP-connected remote sensor for the E-2D/5D/16D.


  • Monitor and manage environmental and security conditions over IP.
  • Sensors supported:
    • 2 digital inputs sensitive to contact closure.
    • 2 RJ11 6P4C connectors for daisy-chaining 1-wire temperature/humidity/dew point, thermocouple, or digital input expanders in any combination.
      • Up to 24 temperature, thermocouple, or any single reading 1-wire sensor can be connected between both RJ11 connectors.
      • Up to 8 temperature/humidity/dew point combination 1-wire sensors can be connected between both RJ11 connectors. Each temperature/humidity/dew point sensor is equivalent to 3 single reading sensors.
      • Up to 12 E-DI2-1W digital input expanders can be connected between both RJ11 connectors to allow a maximum of 24 additional digital inputs. Each E-DI2-1W is equivalent to 2 single reading sensors.
      • Maximum cable length supported on each connector is up to 600ft (183 m) depending on the configuration and number of connected sensors.
      • Use RJ11 splitters (RJ11-3JCK) to daisy-chain 1-wire sensors (sold separately).
  • Sensors are hot pluggable.
    • The sensors will automatically be detected on power up or a Detect Devices button on the summary page can be selected when logged into the unit.
  • Monitors (ping) up to 4 IP network devices - alerts are sent if devices are not responding.
  • Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert.
  • Supports NTI's IP network video cameras for live view of any facility.
  • Create multiple alerts for any installed sensor.
  • Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert.
    • Configure up to 32 alerts, and one Smart Alert.
  • Dual redundant power supplies for connection to two separate power sources.
    • The second power supply is sold separately.
  • Available with optional Power over Ethernet (POE).
  • Integrates with various Open Source SNMP monitoring packages – Nagios
    • The unit can be polled via SNMP.
  • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors.
  • Security: HTTPS, SSLv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
  • Ideal for a wide range of applications including IT infrastructure monitoring, cold storage/freezer monitoring, or any unmanned area that needs to be monitored.
  • Use the E-1W(P) with a wireless router and Wi-Fi Range Extender to create a Wireless Environment Monitoring System.
    • Configure, monitor, and receive alerts without the use of a wired network connection.

Specifications

RJ11 Sensor Ports
  • Two RJ11 6P4C jacks for daisy-chaining 1-wire temperature/humidity/dew point, thermocouple, or digital input expanders in any combination.
    • Up to 24 temperature, thermocouple, or any single reading 1-wire sensor can be split between both RJ11 connectors.
    • Up to 8 temperature/humidity/dew point combination 1-wire sensors can be split between both RJ11 connectors. Each temperature/humidity/dew point sensor is equivalent to 3 single reading sensors
    • Up to 12 digital input expanders can be split between both RJ11 connectors to allow a maximum of 24 additional digital inputs. Each digital input expander is equivalent to 2 single reading sensors
    • Maximum cable length supported on each connector is up to 600ft (183 m) depending on the configuration and number of connected sensors.
      • This maximum includes the cable length of each sensor.
    • RJ11 splitters or t-tap boards (RJ11-3JCK) for daisy-chaining sensors are sold separately.
      • Sensors can be extended up to 7 feet from an RJ11-3JCK
Dry Contact Closures
  • Two screw terminal pairs for connecting dry contact devices and liquid detection sensors.
USB Port
  • One female Micro USB connector - reserved for future use.
Ethernet Port
  • One female RJ45 connector.
  • 10/100 Base-T Ethernet interface.
Protocols
  • HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, TLS v1.2, AES & DES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour
  • Compatible with any SNMP management software.
    • The unit can be polled via SNMP.
  • Operates and configures via HTTP/HTTPS web page.
    • Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC.
    • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • An IP address can be assigned to the E-1W automatically by a DHCP server.
  • Generates SNMP traps, email alerts, syslog messages, and SMS messages (via email-to-SMS).
    • Alerts are posted in event log, which is accessible through Web user interface.
    • Email alerts can be sent to 9 addresses.
      • Users can configure the schedule for when they will be alerted.
  • Supports HTTP REST API to poll sensor data with response in JSON format.
Dimensions
  • WxDxH in: 4x3.65x1.37 (102x93x35 mm).
Power
  • E-1W:
    • Dual DC power provides dual redundancy.
      • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
      • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
      • If both sources have exactly the same voltage, it will draw in part from each of them.
    • 110 to 240 VAC at 50 or 60 Hz via AC adapter.
      • Includes one country-specific AC adapter. The second AC adapter is sold separately (PWR-SPLY-ELC).
    • Input voltage: 5.5VDC ±5%
    • Power consumption: 5W max.
  • E-1WP:
    • Built-in Power over Ethernet and dual DC power provides triple redundancy.
      • Power over Ethernet standards supported: IEEE 802.3af, 802.3at.
        • Proprietary schemes such as Cisco Discovery Protocol are not supported.
          • Similar legacy switches and routers will have to use PWR-SPLY-ELC.
    • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
    • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
    • If two or more sources have exactly the same voltage, it will draw in part from each of them.
    • 110 to 240 VAC at 50 or 60 Hz via AC adapter (not included).
      • Country-specific AC adapters sold separately (PWR-SPLY-ELC).
    • Input voltage: 5.5VDC ±5%
    • Power consumption: 5W max.
  • Use the PWR-48V-5-5V4A DC-DC power converter to install the E-1W in a 48V or 24V Telecom environment.
MTBF
  • E-1W: 703,871 hours
Environmental
  • Operating & Storage Temperature: -4 to 167°F (-20 to 75°C).
  • Operating & Storage Relative Humidity: 0 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS.
Warranty
  • Two years.

Control Methods

Web Interface (view product demo)
  • Configuration can be done over the Internet/LAN via Web page.
    • When connected as an IP remote sensor for an E-2D/5D/16D unit, the E-1W is configured via the E-xD web interface.
  • Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC.
  • Configure sensor thresholds, alarm methods, formats of alerts, and system data log.
  • View/edit sensors' current values, thresholds and alert statuses.
    • All sensors connected to the E-1W can be viewed on one summary page.
    • User configurable settings allow sensors to return to normal status when alert condition clears, without manually acknowledging/dismissing the alert.
    • The sensors will automatically be detected on power up or a Detect Devices button on the summary page can be selected when logged into the unit.
  • View/edit entries stored in the system logs.
  • Event log records system alerts.
    • Stores up to 200 entries.
  • Data log records samples of sensor readings per minute.
    • Stores up to 43,000 entries per sensor.
  • The data log can be downloaded as a comma-separated plain text file.
  • Configure IP information (address, subnet mask, default gateway, DNS, etc.), user administrative settings, and data logging settings.
  • Up to 9 users can access the web page at one time.
  • Permissions, schedule and alert methods are configurable for each user.
  • Configure up to 32 sensor conditions (alerts).
  • Configure 1 Smart Alert to use different alert combinations to send alert messages.
Telnet
  • Monitor over the text-based menu system accessible via Telnet.
  • Access is controlled via username/password.
  • System stores encrypted login information.
  • Two user levels: user and administrator.
Network Operation
  • SNMP support, allowing integration into network management platforms.
  • Updating the system firmware.
Open Source Monitoring Integration
Optional Management Software
  • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors.
  • Push configuration changes to multiple connected units in a group at once.
    • E.g. new users, mail server, network settings, security settings, system settings, etc.
  • Choose between Enterprise Management Software or Low-Cost Management Software.

Application Drawings

  • How to monitor and manage environmental and security conditions over IP.
    How to monitor and manage environmental and security conditions over IP.
    Note: The maximum total cable length for attachment of sensors to the E-1W(P) is 600 feet using minimum 28AWG (4-conductor) cable. This total length includes the cable length of each sensor (maximum 7 feet each) as it extends from the trunk line.

Application Notes

  • Connect Remote 1-Wire Temperature/Humidity Sensors over IP to the E-2D/5D/16D
    Loading image...
    The E-1W(P) Remote 1-Wire Temperature/Humidity Sensors over IP can function as an IP-connected remote sensor for the E-2D/5D/16D. To add a remote IP sensor, access the E-xD web interface and select Monitoring > IP Sensors. Click on the "Add New IP Sensor" link on the bottom and key in the description and IP address of the E-1W(P). Next, select Sensor Type > E1W, then press the add button to connect it to the main ENVIROMUX unit. Up to four remote 1-wire IP sensors can be connected. All sensors connected to the E-xD, including the Remote 1-Wire Temperature/Humidity Sensors over IP, can be viewed on one summary page.
