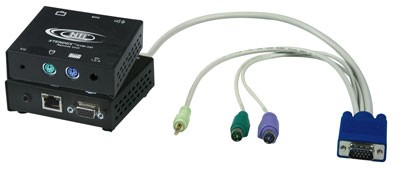

PS/2 KVM Extender via CAT5: Extend to 300 feet (91 meters)

NTI Part #: ST-C5KVM-300-Group

The XTENDEX® PS/2 KVM extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC up to 300 feet (91 meters) using CAT5/5e/6 UTP cable. The extender is available with optional stereo audio. Supports resolutions to 1920x1440.

Also known as: KVM extender, cat5 kvm extension, kvm balun, keyboard monitor mouse extend, remote kvm cat 5, kvm range extender.

Supported Features

KVM
Audio
Internal Power Supply

Designed and Manufactured in the U.S.A.
ROHS Compliant PS/2 KVM Extender via CAT5: Extend to 300 feet (91 meters)
CE Compliant PS/2 KVM Extender via CAT5: Extend to 300 feet (91 meters)

Scroll Down to Request a Quote

The XTENDEX® KVM extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC or NTI KVM switch up to 300 feet (91 meters) using CAT5/5e/6 UTP cable.

Sharpest and clearest VGA quality over CAT5 of any manufacturer.
Supports two users: one local and one remote.
Local unit provides local KVM access.
Supports resolutions to 1920x1440.
Allows local and remote access to network servers.
Built-in surge protection.
Optional external surge protection available.
Available with optional stereo audio.
Keep-alive keyboard/mouse emulation for flawless operation.
Use in-house CAT5 wiring to locate a keyboard, monitor and mouse remotely.
Available with optional internal power supply – eliminates dangling power adapter.
Optional VESA mounting bracket is available for mounting the local or remote unit to the back of a flat panel monitor.

Local Unit

Host Connection
- Supports a PC, SUN Fire™ V20z, or NTI Switch.
- Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Linux, and FreeBSD.
- Male 15-pin HD/male 6-pin miniDIN connectors for PC or NTI KVM switch.
- Optional stereo audio support — 3.5 mm stereo plug.
Local Access
- Crisp and clear 1920x1440 video resolution.
- Female 15-pin HD connector.
- Female 6-pin miniDIN connectors.
- Compatible with Japanese keyboard layout.
- Supports PS/2 mice including the IBM ScrollPoint mouse.
- NTI recommends using identical keyboards and mice at local and remote units.
- Optional stereo audio support — 3.5 mm stereo jack.

Remote Unit

Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
Female 15-pin HD connector.
Female 6-pin miniDIN connectors.
Compatible with Japanese keyboard layout.
Supports PS/2 mice including the IBM ScrollPoint mouse.
Optional 3.5 mm stereo audio connection.

Video Quality Adjustment

Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually.
Test Pattern for Cable Length

Environmental

Operating temperature: 32 to 100°F (0 to 38°C).
Storage temperature: -20 to 140°F (-30 to 60°C).
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Dimensions

ST-C5KVM(A)-300
- WxDxH: 3.5x3.1x1.2 in (89x79x30 mm)
- Weight: 1.2 lbs (0.54 kg)
ST-C5KVM-300I
- WxDxH: 5.9x3.1x1.2 in (150x79x30 mm)

Power

ST-C5KVM(A)-300
- Local and remote unit: 110 or 220 VAC at 50 or 60 Hz via AC adapter.
- Power Consumption: 10 W (each - local and remote unit).
ST-C5KVM-300I
- 110 or 220 VAC at 50 or 60 Hz via IEC connector.

MTBF

MTBF
NTI Part #	MTBF (hrs)	NTI Part #	MTBF (hrs)
ST-C5KVM-300 (local)	88,969	ST-C5KVM-300 (remote)	86,881
ST-C5KVMA-300 (local)	88,128	ST-C5KVMA-300 (remote)	85,768

Regulatory Approvals

CE, RoHS

Warranty

Two years

Cable Distances and Resolutions

ST-C5KVM-300 Distances and Resolutions for CAT5/CAT5e and CAT6 cables
Cable	Distance	Maximum Resolution
CAT5/ CAT5e (UTP)	300 feet (91 meters)	1280x1024 at 60 Hz
	150 feet (46 meters)	1600x1200 at 60 Hz
	100 feet (30 meters)	1920x1440 at 60 Hz
CAT5/ CAT5e (STP), CAT6 (UTP)	300 feet (91 meters)	1024x768 at 60 Hz
	150 feet (46 meters)	1280x1024 at 60 Hz
	100 feet (30 meters)	1600x1200 at 60 Hz

Application Notes

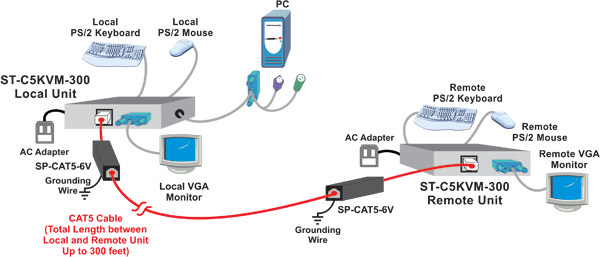

Surge Protection for CATx Cable

The XTENDEX-SP CATx Surge Protector protects equipment running on CATx unshielded twisted pair (UTP) cable against the effects of electrostatic discharge, faulty wiring and lightning. Use a protector on each end of the line to provide increased protection on each end against surges.

Diagrams

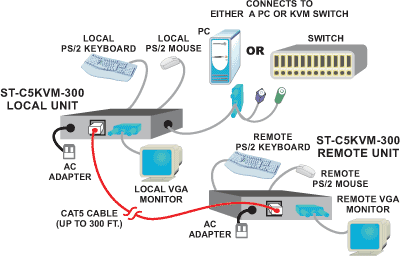

XTENDEX extends control up to 300 feet (91 meters) from PC or NTI switch with no loss of signal

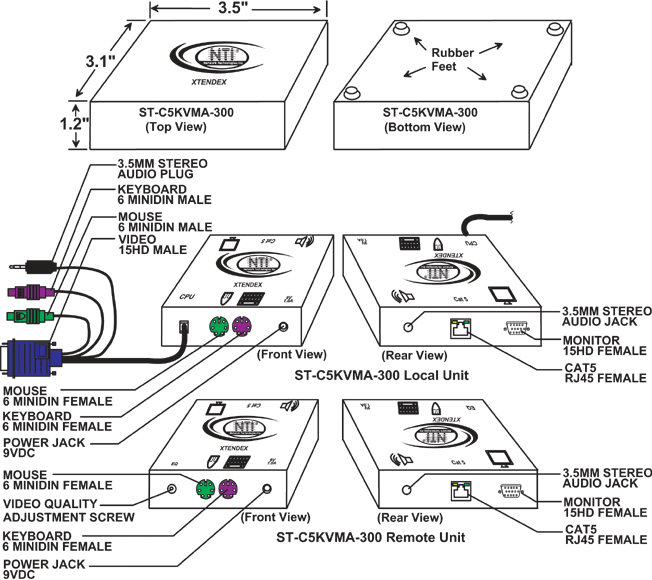

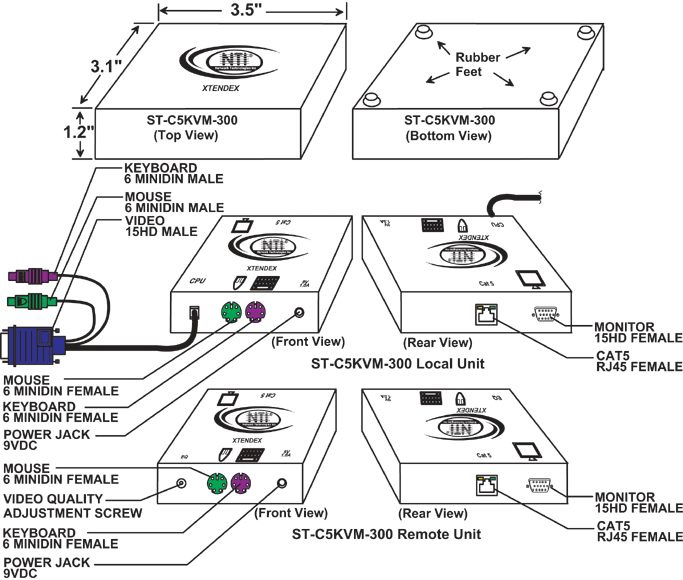

CAD Drawings

ST-C5KVM-300
ST-C5KVMA-300

Stereo Audio

Stereo audio can be heard both locally and remotely.
Frequency response: 20 Hz to 20 kHz, ±1 dB.
Signal-to-Noise Ratio (SNR): 76 dBA.
Total Harmonic Distortion and Noise (THD+N): 0.017%.
Stereo crosstalk: -70 dB.
Input impedance: 10k Ohms.
Line level output; supports multimedia speakers.
Maximum I/O levels: 3.1Vp-p (line level).
CD quality audio output.

User Manual:

Data Sheet:

CAT-5 300 240 KB

Knowledge Base:

KVM Extenders via CAT5
