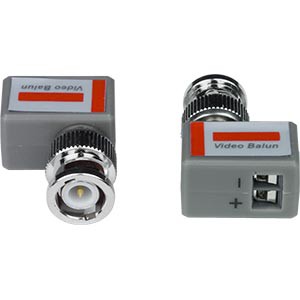

BALUN-STBNC-RA (front & back)
BALUN-STBNC-RA (front & back)

Angled Composite Video Balun/Extender via Single Twisted Pair CAT5

NTI Part #: BALUN-STBNC-RA
Transmits BNC composite video up to 2,000 feet in black/white, and 1,300 feet in color using a single twisted pair of CAT5 cable.

Overview

Transmits BNC composite video up to 2,000 feet in black/white, and 1,300 feet in color using a single twisted pair of CAT5 cable.

Specifications

  • Passively transmits real-time monochrome or color composite video over a single twisted pair of CAT5 UTP cable.
  • Supports CCTV Security Cameras and DVRs.
  • Connectors: 75 ohm male BNC Video, positive and negative screw terminal connectors.
  • Wire: 16-24 AWG Unshielded Twisted Pair
  • DC Loop Resistance: 52 ohms per 1,000 ft (18 ohms per 100m).
  • Bandwidth: 6MHz.
  • Dimensions WxDxH (in.): 0.6x1.3x0.6
  • Includes a pair of BALUN-STBNC-RA tranceivers.
