DB-9F serial adapter
DB-9F serial adapter

Adapter to Connect DB-9M Serial Ports to the SERIMUX

NTI Part #: DB9F-RJ45F
DB-9F serial adapter. Adapter to connect DB-9M serial ports to the SERIMUX.

Overview

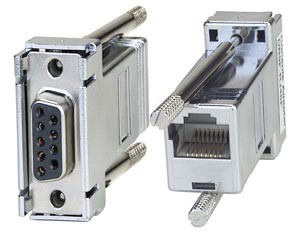

DB9F serial port adapter
  • Female DB9 to Female RJ45 adapter
  • Connect your serial device with a male DB9 connector to a SERIMUX console switch using CAT5/5e/6 cable.

Application Notes

  • Pinout Diagram for Female DB9 to Female RJ45 adapter
    Pinout Diagram for Female DB9 to Female RJ45 adapter
    DB9F-RJ45F
    • Female DB9 to Female RJ45 adapter.
    • Connect your serial device with a male DB25 connector to a SERIMUX console switch using CAT5 cable.
    Signal Flow Diagram
    From RJ-45 Signal Direction Signal To DB-25
    1 CTS RTS 7
    2 DSR Signal flow arrow double left DTR 4
    5 DCD
    3 RxD TxD 3
    4 Gnd SG 5
    6 TxD RxD 2
    8 RTS CTS 8
    7 DTR Signal flow arrow double right DSR 6
    DCD 1
