Adapter to Connect DB-25 Male Serial Ports via CAT5 to SERIMUX
Adapter to Connect DB-25 Male Serial Ports via CAT5 to SERIMUX

Adapter to Connect DB-25 Male Serial Ports via CAT5 to SERIMUX

NTI Part #: DB25F-RJ45F
DB-25F serial port adapter. Adapter to connect DB-25M serial ports to the SERIMUX.

Overview

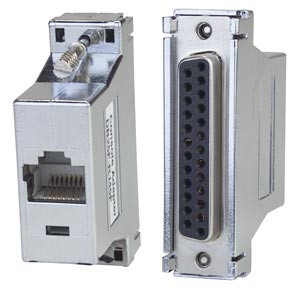

DB-25F serial port adapter
  • Female DB25 to Female RJ45 adapter
  • Connect your serial device with a male DB25 connector to a SERIMUX console switch using CAT5/5e/6 cable.

Application Notes

  • Pinout Diagram for Female DB25 to Female RJ45 adapter

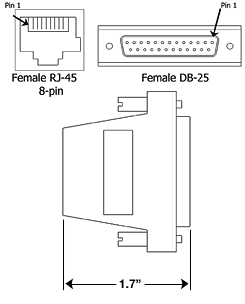

    Pinout Diagram for Female DB25 to Female RJ45 adapter
    DB25F-RJ45F
    • Female DB25 to Female RJ45 adapter.
    • Connect your serial device with a male DB25 connector to a SERIMUX console switch using CAT5 cable.
    Signal Flow Diagram
    From RJ-45 Signal Direction Signal To DB-25
    1 CTS RTS 4
    2 DSR Signal flow arrow double left DTR 20
    5 DCD
    3 RxD TxD 2
    4 Gnd SG 7
    6 TxD RxD 3
    8 RTS CTS 5
    7 DTR Signal flow arrow double right DSR 6
    DCD 8
