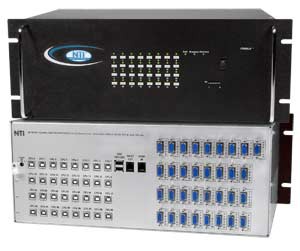

32 port USB KVM switch rackmounted OSD

Hosts

• Thirty-two female 15-pin HD and thiry-two female USB Type B connectors.
• Supports USB-enabled PC, SUN and MAC computers with VGA video.
• Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
• Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R adapter.

Monitor

• Crisp and clear resolution up to 2048x1536.
• Female 15 pin HD connectors.
• A multiscan VGA monitor is required to display the different video outputs from different platforms.
• Bandwidth is 150 MHz.

MTBF

• 39,250 hrs.

Regulatory Approvals

• CE, RoHS

Warranty

• Two years

Power

• 110 or 220 VAC at 50 or 60 Hz via AC adapter.
• Power consumption: 15 W
• Use the PWR-48V-5V4A DC-DC power converter to install the UNIMUX-USBV-32 in a Telecom environment.

Devices

• Female USB Type A connectors.
• Compatible with most USB keyboards and mice, including wireless.
• Keyboard and mouse are hot-pluggable.
• Supports two USB devices directly connected.
• Supports up to eight USB devices using USB hubs (not included).

Environmental

• Operating temperature: 32 to 100°F (0 to 38°C)
• Storage temperature: -20 to 140°F (-30 to 60°C)
• Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Optional Audio

• 3.5 mm stereo audio jacks for inputs and output.
• Maximum input/output levels: 4Vp-p (line level).
• Input impedance: 10k Ohms.
• Output impedance: 32 Ohms.
• Signal-to-Noise Ration (SNR): 87 dBA
• Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB.
• Total Harmonic Distortion + Noise: 0.02% at 1 kHz.
• Requires powered speakers or headphones.
• CD quality audio output.
