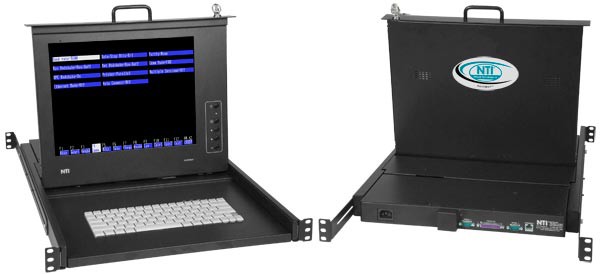

RACKMUX-T15 (Front and Back)
RACKMUX-T15 (Front and Back)
NTI Part #: RACKMUX-T15-Group
The RACKMUX® Terminal Drawer communicates with serial devices, such as routers, servers, bridges, firewall and hubs. It combines a rackmount 15" LCD monitor and keyboard in a space-saving 1RU industrial strength drawer.
Single-Person Installation
  • Designed and Manufactured in the U.S.A.
Scroll Down to Get Quote
The RACKMUX® Terminal Drawer is the ideal solution for communicating with serial devices, such as routers, servers, bridges, firewalls, and hubs. This flexible terminal is easy to install and configure for either RS232 or Telnet communication mode.
  • Forward-folding 15" (381 mm) LCD with 800x600 resolution.
    • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
  • Torque-friction hinges—monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with large padded wrist-rest.
    • Available with 17-key numeric keypad.
  • Designed to be a one-person job when installing the drawer.
  • Rugged steel construction with durable powder coat finish.
  • Supports RSC capabilities.
  • Serial and parallel slave-printer ports.
  • Front panel security lock.
  • Emulates many terminal types.
  • Select from 16 foreground and 16 background colors.
  • Entire unit is only 1RU (1.75" (44 mm)) high.
  • Available with optional mounting bracket for two-post style telco rack.
Compatibility
  • Compatible with any SUN, HP or PC-based headless server.
  • Communicates with serial devices, such as routers, bridges, firewalls and hubs.
Monitor
  • Active Matrix TFT color 15" (381 mm) LCD flat panel monitor.
  • Display resolution: 1024x768.
  • Tilt: up to 120°
  • Viewing angle:
    • Horizontal: 140°
    • Vertical: 125°
  • Video auto-adjust for optimum image.
  • OSD controls for brightness and contrast.
  • 250 nits brightness and 500:1 contrast ratio typical.
Keyboard
  • Keyboard available in: English (US).
    • RACKMUX-T15: 83-key keyboard with wrist-pad.
    • RACKMUX-T15-N: 100-key keyboard with numeric keypad and wrist-pad.
Communication
  • Serial port: One DB9M RS232 port.
    • Serial baud rates: 50 to 115,200bps.
    • Data format: 7 or 8 data bits with or without parity, 1 or 2 stop bits.
    • Serial handshake: XON/XOFF, XPC, and hardware DTR.
    • Communication options: Single RS232 server connection, or up to 12 Ethernet telnet sessions to predefined IP addresses.
  • Network port: One RJ45 10BaseT Ethernet port.
  • Local printer ports: One DB25F Parallel and one DB9M RS232 port.
Terminal Emulation
  • Multiple RS232 Emulations.
    • ADDS A2, PC TERM, PCG Alpha, Console ANSI, TVI910+, TV1925, VT52, VT100, VT220, WY-50+, WY-60, WY-100, WY-120, WY-325.
  • Character matrix: 7x12 dot matrix in 10x16 cell with 3 dot descenders.
  • Screen size: 80 characters wide by 25 lines.
  • Page length: 1, 2 or 4 screens (multiple screen page length reduces maximum number of possible telnet sessions).
  • Cursor: Blink or steady, block or underline.
  • Modes: Full duplex, half duplex, block, half block.
  • 16 foreground colors and 16 background colors.
Cables
  • 6-foot (1.8-meter) female DB9 to male DB25 modem cable included.
  • 6-foot (1.8-meter) power supply cable included.
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Power Consumption: 30 W
  • Maximum Inrush Current: 24A
MTBF
  • RACKMUX-T15: 36,627 hrs
  • RACKMUX-T15-N: 37,244 hrs
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Dimensions
  • WxDxH: 19x23.9x1.75 inches (483x607x44 millimeters).
  • Weight (without anti-glare protective glass): 26.3 lbs (12 kg).
  • Weight (with anti-glare protective glass): 30.8 lbs (14 kg).
  • Drawer is adjustable to various rack depths from 24 to 39 in (610 to 991 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years

Application Drawings

  • Rackmount Console Terminal Drawer
    Rackmount Console Terminal Drawer

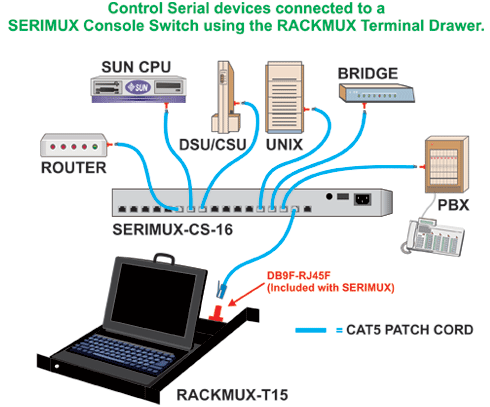

    Control Serial devices connected to a SERIMUX Console Switch using the RACKMUX Terminal Drawer

CAD Drawings

  • Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
    Loading image...

Keyboard Layouts

  • Rackmount KVM Drawer
    Loading image...
    RACKMUX-T15, RACKMUX-T15-G, RACKMUX-V15, RACKMUX-V17, RACKMUX-T15-CSx, RACKMUX-T15-G-CSx, RACKMUX-V17-MP-xUSBHD, RACKMUX-V17-MP-PRIMUX, RACKMUX-V17-MP-xUNV, RACKMUX-V17-MP-2X8U, RACKMUX-V17-MP-nXmUHD, RACKMUX-D17
  • Rackmount KVM Drawer with Numeric Keypad
    Loading image...
    RACKMUX-T15-N, RACKMUX-T15-NG, RACKMUX-T15-N-CSx, RACKMUX-T15-NG-CSx, RACKMUX-T15-N-Sx, RACKMUX-V17-MP-xUSBHD, RACKMUX-V15-N-xUNV, RACKMUX-V17-N-xUNV, RACKMUX-V15-N-PRIMUX, RACKMUX-V15-N-PRIMUX, RACKMUX-V15-N-nXmUHD, RACKMUX-V17-N-nXmUHD, RACKMUX-V15-N, RACKMUX-V17-N, RACKMUX-D17-N, RACKMUX-D15/17-N-xDVIHD
  • "The NTI solution for my client, Alcatel, was a great success. We provided them with the RACKMUX-T15 rack mount terminal drawers, which allowed them to manage their high-end terminal servers. We are grateful to NTI for their efforts in working with Alcatel to provide them the necessary certifications and after sales support, which they required.

    Our organization continues to work with NTI implementing the terminal KVM drawer and other RACKMUX products in customers' server rooms all over Canada."

    Ed Chaudhry
    Techorium Inc
    Totonto, Canada
