Rackmount DVI SUN USB KVM Drawer

Rackmount DVI SUN USB KVM Drawer

NTI Part #: RACKMUX-DS17-T-Group

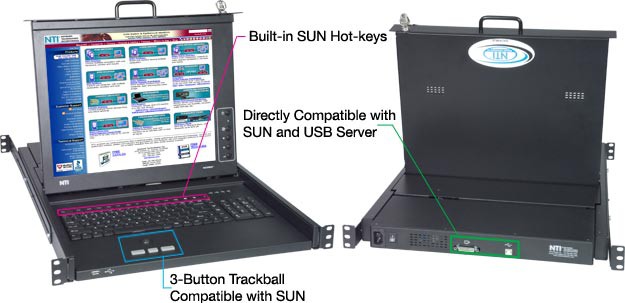

RACKMUX-DS17-NT (Front & Back)

Additional Images/Videos

NTI Part #: RACKMUX-DS17-T-Group

The RACKMUX® SUN USB KVM Drawer combines a rackmount LCD monitor, SUN USB keyboard and 3-button trackball mouse or touchpad in a space-saving 1RU industrial strength drawer. It is available with a forward-folding 17" (432 mm) Active Matrix LCD flat panel DVI monitor.

Also known as: Rackmount DVI SUN USB KVM Drawer, SUN console drawer, 1RU rack mount SUN USB keyboard monitor mouse shelf, 17" folding DVI-D LCD monitor

Single-Person Installation

Designed and Manufactured in the U.S.A.
ROHS Compliant Rackmount DVI SUN USB KVM Drawer
CE Compliant Rackmount DVI SUN USB KVM Drawer

Scroll Down to Get Quote

The RACKMUX® DVI SUN USB KVM Drawer combines a rackmount LCD monitor, SUN USB keyboard, and trackball or touchpad mouse in a space-saving 1RU industrial strength drawer.

Forward-folding 17" (432 mm) Active Matrix LCD flat panel DVI monitor.
Supports SUN-compatible 1152x900 resolution.
Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
Torque-friction hinges-monitor does not wobble, spring, or slam shut.
Compact, heavy-duty tactile keyboard.
- Available with 17-key numeric keypad or large wrist-rest.
Drawer locks into place when open to prevent it from sliding in and out of the rack.

Available with optional mounting bracket for two-post style telco rack.
Rugged steel construction with durable powder coat finish.
LCD auto-shutoff in closed position.
Internal cable arm provides proper cable management for sliding the drawer open and closed.
Equipped with On Screen Display (OSD).
Designed to be a one-person job when installing the drawer.
Front panel security lock.
Front panel USB port to connect an external USB device, such as a flash drive.
Available with Sunlight Readable monitor – call an NTI Product Consultant for more information.

Host Interface

Compatible with USB-enabled SUN, Windows, Linux, Apple, IBM, and HP computers with single link DVI-D video.
One female DVI-I and one female USB Type B connectors.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.

Monitor

Forward-folding 17" (432 mm) Active Matrix LCD flat panel DVI monitor.
1280x1024 video resolution.
- Supports SUN-compatible 1152x900 resolution.
Tilt: up to 120°.
Frequency:
- Horzontal: 31 to 80 KHz
- Vertical: 55 to 76 Hz.
OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
300 nits brightness and 500:1 contrast ratio typical.
Supports DDC1 and DDC2B protocols.

Devices

Keyboard available in: English(US).
- RACKMUX-DS17-T: 97-key SUN-compatible keyboard with wrist-pad.
- RACKMUX-DS17-NT: 114-key SUN compatible keyboard with numeric keypad.
Supports SUN keys including STOP, CUT, PASTE, COMPOSE, COPY, HELP, OPEN, UNDO, and PROPS.
Three button trackball mouse.
Front panel USB 1.1 port to connect external USB devices.
- Female USB Type A connector.

MTBF

RACKMUX-DS17-T: 40,530 hrs.

Cables

6.5-foot (2-meter) single link DVI-D male to male cable included.
6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
6-foot (1.8-meter) power supply cable included.

Power

110 or 220 VAC at 50 or 60 Hz via IEC connector.
Power Consumption: 30 W
Maximum Inrush Current: 30A

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

Dimensions

WxDxH: 19x23.9x1.75 Inches. (483x607x44 millimeters)
Weight: 26 lbs. (12 kg)
Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
Drawer locks into place when open to prevent it from sliding in and out of the rack.
Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

Regulatory Approvals

CE, RoHS

Warranty

Two years

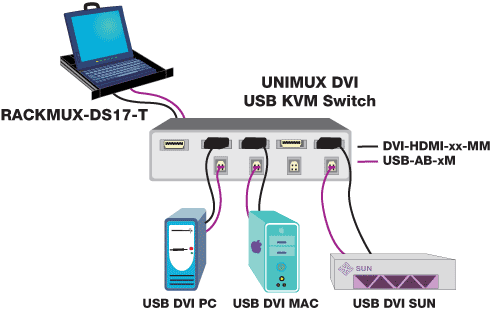

Application Drawings

Rackmount DVI SUN USB KVM Drawer

CAD Drawings

Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
Rackmount DVI SUN USB KVM Drawer with 17" Monitor (RACKMUX-DS17)

Keyboard Layouts

Rackmount SUN USB KVM Console Drawer

RACKMUX-VS17-T-8USBHD, RACKMUX-DS17-T, RACKMUX-VS17-T(S)
Rackmount SUN USB KVM Drawer with Numeric Keypad

RACKMUX-VS17-NT-8USBHD, RACKMUX-DS17-N(T)-xDVIHD, RACKMUX-DS17-NT, RACKMUX-VS17-NT(S)

Video:

RACKMUX NTI KVM Drawers: Single-Person Installation
Excluding 20" models

User Manual:

RACKMUX-VS17-T / RACKMUX-DS17-T 411 KB
Rackmount Drawer with SUN Keyboard, LCD Monitor and Trackball

(0)DVI SUN USB KVM Drawers

NTI Part #	Description	Screen Size	Qty
RACKMUX-DS17-T	DVI SUN USB KVM Drawer, Trackball mouse	17"
RACKMUX-DS17-NT	DVI SUN USB KVM Drawer, Trackball mouse, Numeric keypad	17"

Related Items :

(0)Mounting Bracket for Two-Post Style Telco Rack

NTI Part #	Description	Qty
RL-T15-TEL	Mounting Bracket for Two-Post Style Telco Rack
