Rackmount SUN USB KVM Drawer with High Density USB DVI KVM Switch

NTI Part #: RACKMUX-DS17-NT-4DVIHD-Group

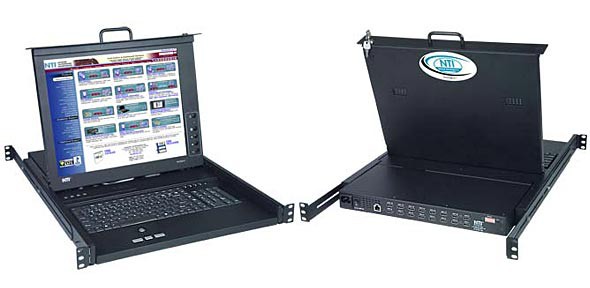

RACKMUX-DS17-NT-16DVIHD (Front and Back)
RACKMUX-DS17-NT-16DVIHD (Front and Back)
NTI Part #: RACKMUX-DS17-NT-4DVIHD-Group
The RACKMUX® DVI SUN USB KVM Drawer with Built-In High Density USB DVI KVM Switch combines a rackmount LCD monitor, SUN USB keyboard, trackball or touchpad mouse, and a USB DVI KVM switch in a space-saving 1RU industrial strength drawer. It is available with forward-folding 17" (432 mm) TFT/LCD DVI monitor.
Also known as: Rackmount SUN USB kvm drawer with USB DVI KVM Switch, rack mount keyboard drawer, console drawer, keyboard monitor drawer, KVM drawers, keyboard LCD drawer, rackmount keyboard drawer.
Control 16 DVI SUN Computers in 1RU
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant Rackmount SUN USB KVM Drawer with High Density USB DVI KVM Switch
  • CE Compliant Rackmount SUN USB KVM Drawer with High Density USB DVI KVM Switch
Scroll Down to Request a Quote
The RACKMUX® DVI SUN USB KVM Drawer with Built-In High Density USB DVI KVM Switch combines a rackmount LCD monitor, SUN USB keyboard, trackball or touchpad mouse, and a USB DVI KVM switch in a space-saving 1RU industrial strength drawer.
  • Available with forward-folding 17" (432 mm) TFT/LCD DVI monitor.
  • Available with a 4-, 8-, or 16-port USB DVI KVM switch.
    • Control up to 16 USB enabled computers with single link DVI outputs.
  • Crisp and clear 1280x1024 video resolution.
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • Keyboard available in: English(US).
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
Dimensions
  • WxDxH: 19x21.9x1.75 Inches. (483x556x44 millimeters)
  • Drawer is adjustable to various rack depths from 22" (559 mm) deep to 39" (991 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Warranty
  • Two years

Keyboard Layouts

  • Rackmount SUN USB KVM Drawer with Numeric Keypad
    Rackmount SUN USB KVM Drawer with Numeric Keypad
    RACKMUX-VS17-NT-8USBHD, RACKMUX-DS17-N(T)-xDVIHD, RACKMUX-DS17-NT, RACKMUX-VS17-NT(S)
User Manual:

(0)SUN USB KVM Drawer with USB DVI KVM Switch

NTI Part # Mouse Keyboard Features Number of Ports Qty
RACKMUX-DS17-NT-4DVIHD Trackball Numeric keypad 4
RACKMUX-DS17-NT-8DVIHD Trackball Numeric Keypad 8
RACKMUX-DS17-NT-16DVIHD Trackball Numeric Keypad 16
RACKMUX-DS17-N-4DVIHD Touchpad Numeric Keypad 4
RACKMUX-DS17-N-8DVIHD Touchpad Numeric Keypad 8
RACKMUX-DS17-N-16DVIHD Touchpad Numeric Keypad 16

Collapse all Expand all Related Items :

(0)Mounting Bracket

NTI Part # Description Qty
RL-T15-TEL Mounting bracket for two post style telco rack

(0)DVI-D Male + USB Type A Male to HDMI-A Male Interface Cable

NTI Part # Length Qty
USB-DHEXT-3-MM 3 feet
USB-DHEXT-6-MM 6 feet
USB-DHEXT-10-MM 10 feet
USB-DHEXT-15-MM 15 feet
