VGA SUN PC KVM Matrix Switch

Up to eight users can control 32 PC and SUN computers.

Also known as: KVM matrix switch, SUN PC matrix switch, SUN PC KVM Matrix Switches,
multiple platform cpu switch, multi-user multi-platform switch, kvm matrices, High Density KVM Switch.

Additional Product Information
View Data Sheet Data Sheet (PDF)
View CAD Drawings CAD Drawings:
ST-2X2-U
ST-2X2-UDT
ST-2X4-U
ST-2X4-UDT
ST-2X8-UDT
ST-2X8-UHD
ST-2X16-UHD
ST-2X32-U		 ST-4X8-UDT
ST-4X8-UHD
ST-4X16-UHD
ST-4X32-U
ST-8X8-U
ST-8X16-U
ST-8X24-U
ST-8X32-U

4 USERS and 16 COMPUTERS in 1RU

 RoHS Compliant SUN PC KVM Matrix Switch Designed and Manufactured in the U.S.A.
SUN PC KVM Matrix Switch, multi-user multi-platform kvm switch
zoomClick here to zoom in on image
NODEMUX® ST-4X16-UHD Matrix High Density KVM Switch (Front & Back)

Features & Applications

The SUN PC Multi-Platform KVM Matrix Switch enables up to eight users to individually command or simultaneously share up to 32 computers.

This low-cost switch accesses PC and SUN computers (and USB computers with NTI adapters). PC or SUN keyboards and mice can be connected by using adapter cables.

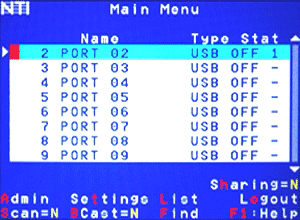

  • Equipped with On Screen Display (OSD), Liquid Crystal Display (LCD) and RS232 control.
  • Rackmount is standard on all NODEMUX ST-nXm-U models. The smaller models are also available in a desktop case (denoted by a "DT" in part number).
  • Users can power-down the switch without rebooting attached computers.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • The advanced OSD user interface with password security makes the NODEMUX Matrix switch simple and reliable to use in Enterprise data centers.
  • Use as a single or multi-platform switch.
  • Users can work individually or share one computer.
  • The High Density Switches save you rack space (look for "HD" at the end of the part number.) Cabling runs are simplified with NTI's high density KVM switch cables.
    • Includes cable management shelf.

Specifications

Hosts

  • Supports PS/2 platform computers, including laptops, HP 9000, Silicon Graphics and IBM RS6000.
  • Supports SUN, including ULTRAs, SUN Blade 100, SUN Blade 1000, SUN Fire™ 280R, SUN Fire V20z and SUN Ray™ (using NTI's USB-SUN adapter).

Connectors

  • ST-nXm-U: female 15-pin HD and female 8-pin miniDIN connectors.
  • ST-nXm-U-HD: female 26-pin SCSI II connectors.

Monitor

  • Crisp and clear 1920x1200 video resolution.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 Mhz.

Power

  • 110 or 220 VAC at 50 or 60 Hz.
  • The 2x2, 2x4, 2x8, and 4x8 units use AC adapters as their power source.
  • Power consumption: ST-2X2-U: 10W, ST-2X2-UDT: 10W, ST-2X4-U: 10W, ST-2X4-UDT: 10W, ST-2X8-U: 10W, ST-2X8-UDT: 10W, ST-2X16-U: 15W, ST-2X32-U: 25W, ST-4X8-U: 15W, ST-4X8-UDT: 15W, ST-4X16-U: 20W, ST-4X32-U: 25W, ST-8X8-U: 25W, ST-8X16-U: 25W, ST-8X24-U: 30W, ST-8X32-U: 35W, ST-2X8-UHD: 15W, ST-2X16-UHD: 20W, ST-4X8-UHD: 20W, ST-4X16-UHD: 25W.

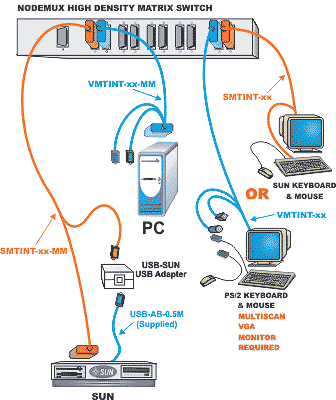

NODEMUX High Density KVM Switch

Keyboard

  • User devices can be PS/2 or SUN.
  • SUN startup keys are supported on all platforms of input devices.
  • Keystrokes are translated across platforms.
  • Keyboard is hot-pluggable.
  • Internet and Windows key supported.

Mouse

  • Smooth mouse movement.
  • Compatible with all standard 2-button PS/2 mice as well as the following:
    • Microsoft IntelliMouse®
    • Logitech (and other) 3-button mice.
    • Alps glidepoint touchpad (extended fucntions-i.e. tapping, etc.-are not supported).
    • Cirque Glidepoint touchapd.
    • IBM Scroll Point mouse (extended stick functions are not supported).
    • Kensington Orbit trackball.
    • Logitech 2-button wheel mouse.
    • Microsoft Ballpoint mouse.
  • SUN 3-button mice are supported.
    • Wheel button on IntelliMouse emulates SUN's third mouse button.

Environmental

  • Operating temperature: 0°C to 38°C (32°F to 100°F).
  • Storage temperature: -30°C to 60°C (-20°F to 140°F).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

  • CE (Not available on ST-2X2-UDT, ST-2X4-UDT, ST-2X8-UDT, or ST-4X8-UDT)
  • RoHS

Warranty

  • Two years

High Density KVM Matrix Switch with Cable Management Shelf
High Density KVM Matrix Switch
with Cable Management Shelf
(Standard feature for -UHD switches)

Control Methods

Standard in NODEMUX™ ST-nXm-U ONLY:

Optional

SUN PC KVM Matrix Switch Models

NTI
Part #		 # of Users # of CPUs Desktop Size
WxDxH (mm)		 Rack Units Rack Size
WxDxH (mm)		 Download a
PDF Manual
ST-2X2-U 2 2 N/A 1RU 482x254x44 Download PDF manual
ST-2X2-UDT 2 2 254x190x84 N/A N/A
ST-2X4-U 2 4 N/A 1RU 482x254x44
ST-2X4-UDT 2 4 254x190x84 N/A N/A
ST-2X8-UDT 2 8 254x190x84 N/A N/A
ST-2X32-U 2 32 N/A 3RU 482x305x133
ST-4X8-UDT 4 8 254x190x84 N/A N/A
ST-4X32-U 4 32 N/A 3RU 482x305x133
ST-8X8-U 8 8 N/A 3RU 482x305x133
ST-8X16-U 8 16 N/A 3RU 482x305x133
ST-8X24-U 8 24 N/A 3RU 482x305x133
ST-8X32-U 8 32 N/A 3RU 482x305x133
High Density SUN PC Matrix Switch Models
NTI Part # # of
Users (n)		 # of
CPUs (m)		 Desktop Size
WxDxH (mm)		 Rack
Units		 Rack Size
WxDxH (mm)		 Download a
PDF Manual
ST-2X8-UHD 2 8 NA 1RU 482x317x44 Download PDF manual
ST-2X16-UHD 2 16 NA 1RU 482x317x44
ST-4X8-UHD 4 8 NA 1RU 482x317x44
ST-4X16-UHD 4 16 NA 1RU 482x317x44
Compatible Cables for SUN PC KVM Matrix Switches
Cable/Length (Ft.) Description Type
VKTINIT-3/6/10/15/25/35/50-MM Connects PS/2 Computers to an NTI SUN PC Switch PS/2
SKTINIT-3/6/10/15/25/35/50-MM Connects SUN Computers to an NTI SUN PC Switch SUN
VEXT-3/6/10/15/25/35/50/75/100-MM Connects VGA & SVGA video port to an NTI SUN PC KVM swtich
Male-Male 15-pin HD, mutlicoax.
Resolution through 1920 x 1280		 PS/2
SUN
MAC
VKTINT-1 Connects PS/2 Keyboard & Mouse to an NTI SUN PC KVM Switch
(Female 6-pin miniDINs - Male 8-pin miniDIN)		 PS/2
13W3M-15HDF Adapts a 13W3 Sun video port to VGA video port on an NTI SUN PC KVM Switch SUN
15DM-15HDF Adapts a 13W3 Sun video port to VGA video port on an NTI SUN PC KVM Switch SUN
Compatible Cables for Hight Density SUN PC KVM Matrix Switches
Cable/Length (Ft.) Description Type
VMTINT-3/6/10/15/25-MM Connects an NTI High Density Switch to a PS/2 CPU PS/2
SMTINT-3/6/10/15/25-MM Connects an NTI High Density Switch to a SUN CPU SUN
SMTINT-3/6/10/15/25 Connects VGA monitor, SUN keyboard to an NTI High Density Switch SUN
VMTINT-3/6/10/15/25 Connects VGA monitor, PS/2 keyboard to an NTI High Density Switch PS/2
