Rackmount KVM Drawer Integrated SUN PC Switch

KVM Console Drawer, Rack Mount Keyboard Monitor drawer.

 Return home

Rackmount VGA KVM Drawer with VGA SUN PC KVM Switch

Control up to 8 computers from 1RU of rack space.

Also known as: rackmount kvm drawer with SUN PC KVM switch, rack mount keyboard drawer, rack mount kvm drawer
with SUN PC switch, console drawer, keyboard monitor drawer, KVM drawers, keyboard LCD drawer, rackmount keyboard drawer.


RoHS Compliant Rackmount USB + PS/2 KVM Drawer

Designed and Manufactured in the U.S.A.		 RACKMUX-V17-8UNV
zoom Click here to zoom in on image
RACKMUX-V17-N-8UNV (Front & Back)

Additional Product Information

View CAD Drawing CAD Drawings:
RACKMUX-V17-N-4UNV
RACKMUX-V17-N-8UNV
View Keyboard Layouts Keyboard Layouts:
RACKMUX-V17-xUNV
RACKMUX-V17-N-xUNV

Features & Applications

The KVM Drawer with Integrated SUN PC KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a 4- or 8-port SUN PC KVM switch in a space-saving 1RU industrial strength drawer.
  • Available with forward-folding 17" TFT/LCD VGA monitor.
    • 1280x1024 video resolution for 17" monitor.
  • Control up to eight PC or SUN computers.
  • Torque-friction hinges — monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad available.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.

Specifications

KVM Drawer with Universal Switch

Power

  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.

MTBF

MTBF
NTI Part # MTBF (hrs)
RACKMUX-V17-4UNV 32,682
RACKMUX-V17-8UNV 31,467
RACKMUX-V17-N-4UNV 32,976
RACKMUX-V17-N-8UNV 31,739

Dimensions

  • WxDxH (mm): 283x556x44.
  • Drawer is adjustable to various rack depths from 558mm deep to 990mm deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

Keyboard

  • Keyboard available in multiple languages: English (US), English (UK), French, German, Italian, Spanish, Turkish.
    • RACKMUX-V17-xUNV: 83-key (US) or 84-key (UK, French, German, Italian, Spanish) keyboard with wrist-pad.
    • RACKMUX-V17-N-xUNV: 100-key (US) or 101-key (UK, French, German, Italian, Spanish, Turkish) keyboard with numeric keypad.

Regulatory Approvals

  • CE, RoHS

Environmental

  • Operating temperature: 0°C to 40°C (32°F to 104°F).
  • Storage temperature: -20°C to 60°C (-4°F to 140°F).
  • Operating and Storage Relative Humidity: 5 to 95% non-condensing RH.

Warranty

  • Two years

Rackmount USB + PS2 KVM Drawer Specifications
NODEMUX® Universal KVM Switch Specifications

KVM Drawer with SUN PC KVM Switch

NTI Part # Screen
Size		 Keyboard Features # of
CPUs		 Keyboard
Language		 Download
a Manual
RACKMUX-V17-4UNV 17 Wrist-rest 4 English (US) Download pdf manual
RACKMUX-V17-N-4UNV 17 Numeric keypad 4 English (US)
RACKMUX-V17-8UNV 17 Wrist-rest 8 English (US)
RACKMUX-V17-N-8UNV 17 Numeric keypad 8 English (US)
RL-T15-TEL Mounting bracket for two-post style telco rack

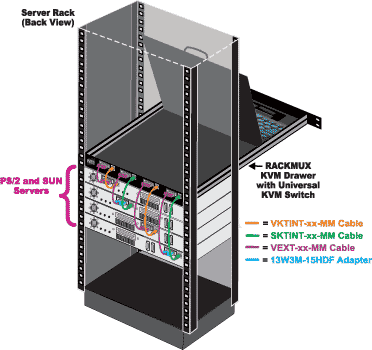

Compatible Cables

Cable/Length (feet) DescriptionType
VKTINT-3/6/10/15/25/35/50-MM Connects PS/2 Computers to an NTI SUN PC Switch (Male to Male) PS/2
SKTINT-3/6/10/15/25/35/50-MM Connects SUN Computers to an NTI SUN PC Switch (Male to Male) SUN
VEXT-3/6/10/15/25/35/50/75/100-MM Connects VGA & SVGA video port to an NTI Universal KVM Switch
Male to Male 15-pin HD, multicoax. Resolution through 1900x1200		 PS/2, SUN,
MAC
13W3M-15HDF Adapts a 13W3 SUN video port to VGA port on an NTI Universal KVM switch SUN
