Rackmount VGA KVM Drawer with VGA KVM Switch via CAT5

Control up to 64 servers from 1RU of rack space.

Also known as: integrated KVM drawer and CAT5 KVM switch, KVM console drawer with built-in switch,
KVM switch in rack mount KVM drawer, 1RU rackmount LCD monitor shelf with KVM switch.
RoHS Compliant Rackmount KVM Drawer with KVM Switch via CAT5

Designed and Manufactured in the U.S.A.		 RACKMUX-V17-N-PRIMUX KVM Drawer via CAT5
zoom Click here to zoom in on image
RACKMUX-V17-N-PRIMUX (Front & Back)

Additional Product Information

View Keyboard Layout Keyboard Layout:
RACKMUX-V15/V17-N-PRIMUX

Features & Applications

The KVM Drawer with Integrated KVM Switch via CAT5 combines a rackmount LCD monitor, keyboard, touchpad mouse and Zero-U KVM Switch via CAT5 into a space-saving 1RU industrial strength drawer.
  • Available with forward-folding 15" or 17" TFT/LCD VGA monitor.
    • 1024x768 video resolution for 15" monitor.
    • 1280x1024 video resolution for 17" monitor.
  • Control up to 64 servers from 305 meters away through one built-in user console.
    • One platform-specific (PS2, SUN or USB) HA-x host adapter is required for each computer.
  • Provides a simple daisy-chained wiring configuration.
  • Interconnect multiple servers at different locations throughout a building. Servers can be of the same or differing platforms (PS/2, SUN or USB).
  • Torque-friction hinges — monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.

Specifications

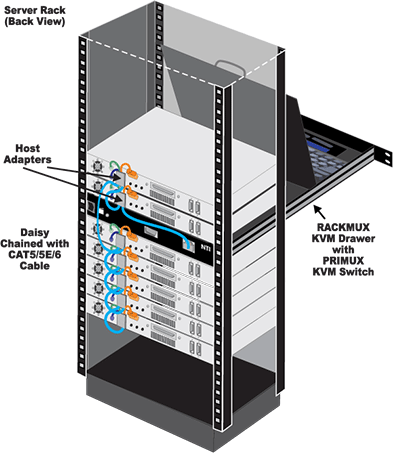

KVM Drawer with Built-in CAT5 KVM Switch Example
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
Dimensions
  • WxDxH (mm): 483x556x44.
  • Drawer is adjustable to various rack depths from 558mm deep to 990mm deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Keyboard
  • Keyboard available in multiple languages: English (US), English (UK), French, German, Italian, Spanish, Turkish.
Regulatory Approvals
  • CE, RoHS
Environmental
  • Operating temperature: 0°C to 40°C (32°F to 104°F).
  • Storage temperature: -20°C to 60°C (-4°F to 140°F).
  • Operating and Storage Relative Humidity: 5 to 95% non-condensing RH.
Warranty
  • Two years

KVM Drawers with Integrated PRIMUX Switch

NTI Part # Screen
Size		 Keyboard Features Keyboard Language
RACKMUX-V15-N-PRIMUX 15" Numeric keypad English (US)
RACKMUX-V17-N-PRIMUX 17" Numeric keypad English (US)
RL-T15-TEL Mounting bracket for two-post style telco rack

Host Adapters

Function NTI Part # Platform Size (mm)
WxDxH
Host Adapter HA-PS2 PS/2 53x94x25
HA-USB USB 53x94x25
HA-SUN SUN 53x94x25
