Rackmount KVM Drawer with Real Mouse and High Density USB VGA KVM Switch

NTI Part #: RACKMUX-V17-MP-4USBHD-Group

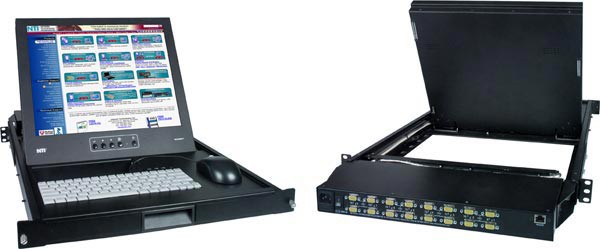

RACKMUX-V17-MP-16USBHD (Front and Back)

NTI Part #: RACKMUX-V17-MP-4USBHD-Group

The RACKMUX® KVM Drawer with Real Mouse with Built-In High Density USB KVM Switch combines a LCD monitor, keyboard, real mouse with mouse pocket, and a 4-, 8-, or 16-port USB switch in a space-saving 1RU industrial strength drawer. It is available with a 17" (432 mm) Active Matrix LCD flat panel monitor.

Also known as: Rackmount kvm drawer with high density USB KVM switch, rack mount keyboard drawer, rack mount kvm drawer with high density USB switch, console drawer, keyboard monitor drawer, KVM drawers, keyboard LCD drawer, rackmount keyboard drawer.

Designed and Manufactured in the U.S.A.
ROHS Compliant Rackmount KVM Drawer with Real Mouse and High Density USB VGA KVM Switch
CE Compliant Rackmount KVM Drawer with Real Mouse and High Density USB VGA KVM Switch

Scroll Down to Request a Quote

The RACKMUX® KVM Drawer with Real Mouse and High Density USB VGA KVM Switch combines a LCD monitor, keyboard, real mouse with mouse pocket, and a 4-, 8-, or 16-port High Density USB switch in a space-saving 1RU industrial strength drawer.

Available with backward-folding 17" (432 mm) TFT panel active matrix LCD display monitor.
- 1280x1024 video resolution for 17" (432 mm) monitor.
Control 4, 8, or 16 USB-enabled PC, SUN and MAC computers with VGA video.
Torque-friction hinges-monitor does not wobble, spring, or slam shut.

High density KVM drawer – fits in 24” in rack.
Compact, heavy-duty tactile keyboard.
LCD auto-shutoff in closed position.
Drawer locks into place when open to prevent it from sliding out of the rack.
Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
Keyboard available in: English(US).
- 83-key keyboard.
Cabling runs are simplified with NTI's high density KVM switch cables.

Power

110 or 220 VAC at 50 or 60 Hz via IEC connector.

Dimensions

WxDxH: 19x36.6x1.75 Inches. (483x930x44 millimeters)
Weight: 37.4 lbs. (17 kg)
Drawer is adjustable to various rack depths from 36.6" (930 mm) deep to 43" (1,092 mm) deep.

Regulatory Approvals

CE, RoHS

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

Warranty

Two years

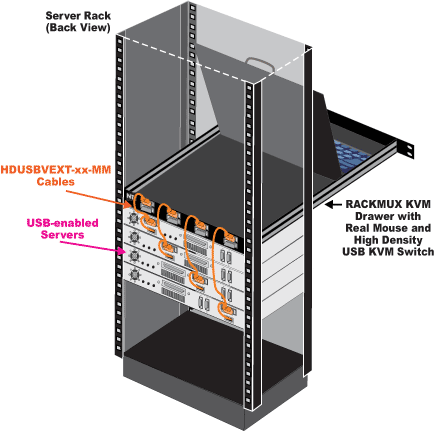

Application Drawings

Rackmount KVM Drawer with Real Mouse and High Density USB VGA KVM Switch

Keyboard Layouts

Rackmount KVM Drawer

RACKMUX-T15, RACKMUX-T15-G, RACKMUX-V15, RACKMUX-V17, RACKMUX-T15-CSx, RACKMUX-T15-G-CSx, RACKMUX-V17-MP-xUSBHD, RACKMUX-V17-MP-PRIMUX, RACKMUX-V17-MP-xUNV, RACKMUX-V17-MP-2X8U, RACKMUX-V17-MP-nXmUHD, RACKMUX-D17

Firmware:

Touchscreen and CAC Reader Compatible USB KVM Switch

(0)KVM Drawers with High Density USB KVM Switch

NTI Part #	Screen Size	Number of Ports
RACKMUX-V17-MP-4USBHD	17"	4
RACKMUX-V17-MP-8USBHD	17"	8
RACKMUX-V17-MP-16USBHD	17"	16

Related Items :

(0)Male 15-pin HD to Male 15-pin HD + Male USB Type A Interface Cable

NTI Part #	Length	Qty
HDUSBVEXT-3-MM	3 feet
HDUSBVEXT-6-MM	6 feet
HDUSBVEXT-10-MM	10 feet
HDUSBVEXT-15-MM	15 feet
