Rackmount VGA KVM Drawer with
Real Mouse and VGA SUN PC KVM Switch

Control up to 8 USB computers from 1RU of rack space.

Also known as: rackmount kvm drawer with multi-platform KVM switch, rack mount keyboard drawer, rack mount kvm drawer with
SUN PC switch, console drawer, keyboard monitor drawer, KVM drawers, keyboard LCD drawer, rackmount keyboard drawer.

ROHS compliant KVM drawer SUN PC switch

Designed and Manufactured in the U.S.A.

Additional Product Information
View keyboard layout Keyboard Layouts:
RACKMUX-V17-MP
 Rackmount KVM Drawer with SUN PC Switch
zoomClick here to zoom in on image
RACKMUX-V17-MP-8UNV (Front and Back)

Features & Applications

The RACKMUX® KVM Drawer with Real Mouse with Built-In SUN PC KVM Switch combines a LCD monitor, keyboard, real mouse with mouse pocket, and a 4 or 8-port SUN PC switch in a space-saving 1RU industrial strength drawer.
  • Available with backward-folding 17" TFT panel active matrix LCD display monitor.
    • 1280x1024 video resolution for 17" monitor.
  • Control up to eight legacy PC or SUN computers.
  • Connect a USB PC or SUN using a USB-PS2 or USB-SUN adapter.
  • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
  • High density KVM drawer – fits in 610mm rack.
  • Compact, heavy-duty tactile keyboard.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • Keyboard available in multiple languages: English(US), English(UK), German, Italian, French, and Spanish.

Specifications

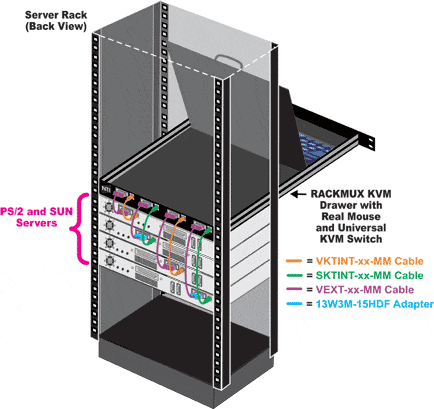

Rackmount KVM Drawer with Real Mouse and SUN PC KVM Switch Example Application

Power

  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.

Dimensions

  • WxDxH (mm): 483x901.7x44
  • Weight: 17 kg.
  • Drawer is adjustable to various rack depths from 901.7mm deep to 1092.2mm deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

Regulatory Approvals

  • CE, RoHS

Environmental

  • Operating temperature: 0°C to 40°C (32°F to 104°F).
  • Storage temperature: -20°C to 60°C (-4°F to 140°F).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

Warranty

  • Two years

Rackmount USB + PS2 KVM Drawer with Real Mouse Specifications
NODEMUX SUN PC KVM Switch Specifications

KVM Drawers with Real Mouse and SUN PC KVM Switch

NTI Part # Screen Size # of CPUs
RACKMUX-V17-MP-4UNV 17" 4
RACKMUX-V17-MP-8UNV 17" 8

Compatible Cables

Connects PS/2 Computers to an
NTI SUN PC Switch (Male to Male)
NTI Part # Length(m)
VKTINT-3-MM 0.9
VKTINT-6-MM 1.8
VKTINT-10-MM 3
VKTINT-15-MM 4.6
VKTINT-25-MM 7.6
VKTINT-35-MM 10.6
VKTINT-50-MM 15.2
Connects SUN Computers to an
NTI SUN PC Switch (Male to Male)
NTI Part # Length(m)
SKTINT-3-MM 0.9
SKTINT-6-MM 1.8
SKTINT-10-MM 3
SKTINT-15-MM 4.6
SKTINT-25-MM 7.6
SKTINT-35-MM 10.6
SKTINT-50-MM 15.2
Connects VGA & SVGA video port to an NTI SUN PC Switch (Male to Male)
NTI Part # Length(m)
VEXT-3-MM 0.9
VEXT-6-MM 1.8
VEXT-10-MM 3
VEXT-15-MM 4.6
VEXT-25-MM 7.6
VEXT-35-MM 10.6
VEXT-50-MM 15.2
VEXT-75-MM 22.8
VEXT-100-MM 30.4
Connects PS/2 Keyboard & Mouse
to an NTI SUN PC Switch
(Female 6-pin miniDINs - Male 8-pin miniDIN)
NTI Part # Length(m)
VKTINT-1 0.3
Adapts an old SUN monitor
to a VGA monitor
NTI Part #
13W3M-15HDF
