Also known as: HDTV extender, cat5 YPbPr component video digital S/PDIF audio extender, remote monitor, extend video.
|

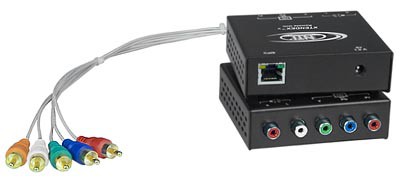

The HDTV Extender broadcasts YPbPr component video and analog or digital audio locally and remotely up to 83 meters away from a component video device (DVD, CD, satellite receiver, etc) using CAT5/5e/6 cable. Each video extender consists of a local unit that connects to a component video device and also supplies audio/video to a local display and speakers, and a remote unit that connects to a TV or monitor and speakers.
- Easily transmit a high-definition component video signal to a projector in the ceiling by using compact CAT5 cable instead of bulky cable bundles.
|
- Send high quality video signals from the DVD player in your basement to the great room upstairs.
- Supports local and remote TVs/monitors/projectors and speakers.
- Supports 480i (interlaced), 480p (progressive), 720i, 720p, 1080i, and 1080p formats.
- Audio can be Left and Right stereo or digital S/PDIF.
- ST-C5HDA-600 supports coax S/PDIF, DTS Digital Surround™, and Dolby Digital™ 5.1 digital signals.
- ST-C5HDTV-600 supports analog stereo audio.
- Built-in surge protection.
|
|
Local Unit
- Host Connection
- ST-C5HDA-600: three RCA plugs for YPbPr component video and one RCA plug for digital audio.
- ST-C5HDTV-600: three RCA plugs for YPbPr component video and two RCA plugs for analog stereo audio.
- Local Access
- ST-C5HDA-600: three RCA jacks for YPbPr component video and one RCA jack for digital audio.
- ST-C5HDTV-600: three RCA jacks for YPbPr component video and two RCA jacks for analog stereo audio.
Remote Unit
- ST-C5HDA-600: three RCA jacks for YPbPr component video and one RCA jack for digital audio.
- ST-C5HDTV-600: three RCA jacks for YPbPr component video and two RCA jacks for analog stereo audio.
Video
- Signal type: HDTV YPbPr component
- Maximum input/output levels: 1.45Vp-p.
- Input/output impedance: 75 Ohms
- Bandwidth: 90Mhz at 30 meters, 50Mhz at 183 meters.
- Resolutions: HDTV 480i, 480p, 720i, 720p, 1080i, and 1080p.
Video Quality Adjustment
- Automatically adjusts the video quality to compensate for varying lengths of CAT5 cable.
|
Audio
- Audio can be Left and Right stereo or digital S/PDIF.
- Audio can be heard both locally and remotely.
- Digital Audio (ST-C5HDA-600)
- Signal type: S/PDIF, DTS Digital Surround™, Dolby Digital™ 5.1
- Input/output levels: 0.5Vp-p.
- Input/output impedance: 75 Ohms
- Stereo Audio (ST-C5HDTV-600)
- Signal type: stereo audio, analog, left/right
- Maximum input/output levels: 3.1Vp-p.
- Input impedance: 10K Ohms
- Output impedance: 50 ohms
- Frequency Response: +/-0.01 dB, 20 Hz to 20 kHz.
- Total Harmonic Distortion + Noise (THD+N): 0.017%
- Signal-to-Noise Ratio (SNR): 76 dBA
- Stereo crosstalk: -70 dB
Environmental
- Operating temperature: 0°C to 38°C (32°F to 100°F).
- Storage temperature: -30°C to 60°C (-20°F to 140°F).
- Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Power
- Local and remote units: 110 VAC at 60 Hz via AC adapter (included).
Dimensions
Regulatory Approvals
Warranty |
HDTV Extenders |
| Supported Features |
NTI Part # |
Download a PDF Manual |
| HDTV component video + digital audio |
ST-C5HDA-600 |
 |
| HDTV component video + stereo audio |
ST-C5HDTV-600 |
