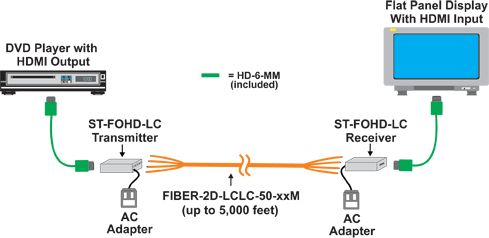

The XTENDEX® ST-FOHDMI-LC HDMI Extender via Fiber Optic Cable locates a digital HDMI display up to 5,000 feet (1,524 meters) away from a video source using fiber optic cable. Each extender consists of a transmitter that connects to a video source and a receiver that connects to a display.
- Signal transmission via four strand multimode LC fiber optic cable — no RF interference.
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
- HDCP compliant.
- Compact and durable design — allowing for easy connection and placement.
- Cables can be installed in conduit prior to extender installation.
- No software to install.
- RGB and Clock signals are transmitted separately by multimode optical fiber, no separate copper connection required.
|
The HDMI Optical Extender is the ideal solution for a wide range of applications.
Examples include:
- Remote HDMI display for home theater, medical, military, aerospace, industrial and traffic control applications.
- Digital Flat Panel Displays (FPD), Plasma Display Panels (PDP), Video Wall Systems and projectors in conference rooms and auditoriums.
- Kiosks with digital FPDs.
- Color LED signboards, FPDs and PDPs for information display at stadiums.
|
- Connectors (for transmitter and receiver): One female HDMI single link connector and two duplex LC connectors.
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
- Optical source: 850nm VCSEL.
- Compliant with DDWG DVI standard.
- Built-in Auto EDID management function.
- Data rate: 2.25 Gbps.
Environmental
- Operating Temperature: 14°F to 122°F (-10°C to 50°C).
- Storage Temperature: -22°F to 140°F (-30°C to 60°C).
Regulatory Approvals
|
Dimensions
- WxDxH (mm): 109.2x78.7x25.4
Cables
- Use a FIBER-2D-LCLC-50-xxM (2 duplex LC 50-micron) multimode fiber optic cable to extend the receiver for the transmitter up to 1,524 meters (not included).
- Use HDMI-xx-MM cable to connect the HDMI devices to the transmitter and receiver.
Power
- 12V/3A via DC adapter.
- Power consumption:
- Transmitter: 1.65W
- Receiver: 2.48W
Warranty
|
