Multiple Extender Modules in a Rack: USB PS/2 VGA KVM

Mount up to 12 USB KVM extender modules into a single 2RU rack tray

Also known as: Multiple KVM extender, USB KVM extender, kvm extension, pc extender,
Rackmount KVM Extender, Rack mount USB KVM Extension, CAT5 KVM Extender Shelf.




RoHS Compliant Extender Module Tray

Designed and Manufactured in the U.S.A.

Additional Product Information
View Data Sheet Data Sheet (PDF)

Mount up to 12 USB KVM extender modules into a single 2RU rack tray
zoom Click here to zoom in on image

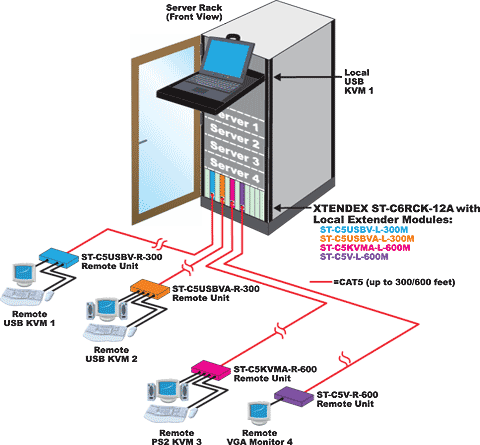

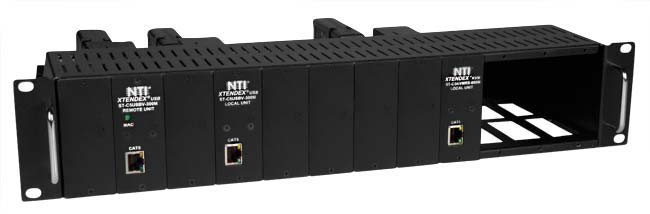

XTENDEX ST-C5RCK-12 with ST-C5USBVA-300M Extender Modules

Features & Applications
The XTENDEX® Rackmount Extender Module Tray allows you to mount up to 12 extender modules in a space-saving 2RU shelf. The local and remote extender modules are interconnected via CAT5/5e/6 cable.
  • Designed for use with NTI's rackmount transmitter / receiver modules.
    • Rackmount local module compatible with rackmount remote module or desktop remote unit.
  • Mount up to 12 modules in a single 2RU tray.
  • Cable/power supply management shelf included.
  • Ideal solution for fast-growing installations.
  • Includes eleven blank front panel covers.
    • Hides open slots on the tray.
    • Prevents change in airflow through rack cabinets.
  • Available extender modules:
    • USB KVM extender to 91 meters with optional audio.
    • PS2 KVM extender to 183 meters with optional audio or RS232.
    • VGA extender to 183 meters with optional audio or RS232.
  • High quality, rugged steel construction with durable powder coat finish.

Specifications
Rackmount Extender Module Tray

Dimensions

  • Rack shelf WxDxH (mm): 482x368x89
  • Blank panel cover WxH (mm): 36x89

Warranty

  • Two years.


Mount up to 12 USB KVM extender modules into a single 2RU rack tray
2RU Rackmount Extender Module Tray w/Cable/Power Supply Management Shelf (Standard Feature)
Rackmount Extender Modules
USB KVM Extender to 91 meters
PS2 KVM Extender to 183 meters
VGA Extender to 183 meters
Connectors
  • Local unit:
    • One female 26-pin SCSI II connector for computer connection.
    • One female 26-pin SCSI II connector for local KVM access (for KVM models) or local display (for video-only models).
    • One female RJ45 connector for CAT5/5e/6 cable to remote unit.
  • Remote unit:
    • One female 26-pin SCSI II connector for remote KVM access (for KVM models) or remote display (for video-only models).
    • One female RJ45 connector for CAT5/5e/6 cable from local unit.
Dimensions
  • WxDxH (mm): 36x173x89
Environmental
  • Operating temperature: 0°C to 38°C (32°F to 100°F).
  • Storage temperature: -30°C to 60°C (-20°F to 140°F).
  • Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

USB KVM Extender Module
ST-C5USBV-L-300M (Front & Back)
Mount up to 12 extender modules in a space-saving 2RU shelf

Cables
  • NTI High Density cables between user devices and the XTENDEX Extender Modules are required for proper operation.
  • NTI High Density cables between the CPUs and the XTENDEX Extender Modules are required for proper operation.
  • Use CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors between the local and remote units.
  • Cables not included.
Resolutions for ST-C5USBV-300
Cable Distance
(meters)		 Maximum Resolution
CAT5/CAT5e/
CAT6 (UTP)		 91 1024x768 at 60Hz
46 1600x1200 at 60Hz
30 1920x1440 at 60Hz
CAT5/5e (STP) 91 1024x768 at 60Hz
46 1280x1024 at 60Hz
30 1600x1200 at 60Hz
Resolutions for ST-C5KVM-600 and ST-C5V-600
Cable Distance
(meters)		 Maximum Resolution
CAT5/CAT5e (UTP) 183 1024x768 at 60Hz
122 1280x1024 at 60Hz
91 1600x1200 at 60Hz
30 1920x1440 at 60Hz
CAT5/CAT5e(STP),
CAT6 (UTP)		 91 1024x768 at 60Hz
61 1280x1024 at 60Hz
30 1920x1440 at 60Hz

Optional Power Distribution Module
  • Power up to 12 Rackmount Extender Modules.
  • Outputs +9VDC.


Power Distribution Module
2RU Rackmount Extender Module Tray
with Optional Power Distribution Module
(Back)

2RU Rackmount Extender Module Tray
NTI Part # Description
ST-C5RCK-12 2RU Rackmount Extender Module Tray
ST-C5PWR-RCK12 Power Distribution Module


USB KVM Extender Modules to 91 Meters
Supported Features Local or Remote Rackmount Module or Desktop Unit NTI Part # Dimensions (mm) Download a PDF Manual
USB KVM Local Rackmount module ST-C5USBV-L-300M 36x173x89 Download PDF manual
USB KVM Remote Rackmount module ST-C5USBV-R-300M 36x173x89
USB KVM Remote Desktop unit ST-C5USBV-R-300 89x79x31


Cables to KVM from Local or Remote Rackmount Module
(male 26-PIN SCSI II to female 15-pin HD,
two female USB Type A)

Cables to Computer from Local Rackmount Module
(male 26-PIN SCSI II to male 15-pin HD,
male USB Type A)
Part # Length (m) Part # Length (m)
UMTINT-3 0.9 UMTINT-3-MM 0.9
UMTINT-6 1.8 UMTINT-6-MM 1.8
UMTINT-10 3 UMTINT-10-MM 3
UMTINT-15-MM 4.5
Cables to Computer from Local Rackmount Module (male 26-PIN SCSI II to male 15-pin HD, male USB Type A)

USB KVM + Audio Extender Modules to 91 Meters

Supported Features Local or Remote Rackmount Module or Desktop Unit NTI Part # Dimensions (mm) Download a PDF Manual
USB KVM + Audio Local Rackmount module ST-C5USBVA-L-300M 36x173x89 Download PDF manual
USB KVM + Audio Remote Rackmount module ST-C5USBVA-R-300M 36x173x89
USB KVM + Audio Remote Desktop unit ST-C5USBVA-R-300 89x79x31

Cables to KVM & Speakers from Local or Remote Rackmount Module
(male 26-PIN SCSI II to female 15-pin HD, two female USB Type A, female 3.5mm)

Cables to Computer w/Audio from Local Rackmount Module
(male 26-PIN SCSI II to male 15-pin HD, male USB Type A, male 3.5mm)
Part # Length (m) Part # Length (m)
UMATINT-3 0.9 UMATINT-3-MM 0.9
UMATINT-6 1.8 UMATINT-6-MM 1.8
UMATINT-10 3 UMATINT-10-MM 3
UMATINT-15-MM 4.5
Cables to Computer w/Audio from Local Rackmount Module (male 26-PIN SCSI II to male 15-pin HD, male USB Type A, male 3.5mm)

PS2 KVM Extender Modules to 183 Meters
Supported Features Local or Remote Rackmount Module or Desktop Unit NTI Part # Dimensions (mm)
PS2 KVM Local Rackmount module ST-C5KVM-L-600M 36x173x89
PS2 KVM Remote Rackmount module ST-C5KVM-R-600M 36x173x89
PS2 KVM Remote Desktop unit ST-C5KVM-R-600 89x79x31

Cables to KVM from Local or Remote Rackmount Module
(male 26-PIN SCSI II to female 15-pin HD, two female 6-pin miniDIN)

Cables to Computer from Local Rackmount Module
(male 26-PIN SCSI II to male 15-pin HD, male 6-pin miniDIN)
Part # Length (m) Part # Length (m)
VMCTINT-3 0.9 VMCTINT-3-MM 0.9
VMCTINT-6 1.8 VMCTINT-6-MM 1.8
VMCTINT-10 3 VMCTINT-10-MM 3
VMCTINT-15 4.5 VMCTINT-15-MM 4.5
VMCTINT-25 7.6 VMCTINT-25-MM 7.6

PS2 KVM + Audio Extender Modules to 183 Meters

Supported Features Local or Remote Rackmount Module or Desktop Unit NTI Part # Dimensions (mm)
PS2 KVM + Audio Local Rackmount module ST-C5KVMA-L-600M 36x173x89
PS2 KVM + Audio Remote Rackmount module ST-C5KVMA-R-600M 36x173x89
PS2 KVM + Audio Remote Desktop unit ST-C5KVMA-R-600 89x79x31

Cables to KVM from Local or Remote Rackmount Module
(male 26-PIN SCSI II to female 15-pin HD, two female 6-pin miniDIN, female 3.5mm)

Cables to Computer from Local Rackmount Module
(male 26-PIN SCSI II to male 15-pin HD, two male 6-pin miniDIN, male 3.5mm)
Part # Length (m) Part # Length (m)
VMATINT-3 0.9 VMATINT-3-MM 0.9
VMATINT-6 1.8 VMATINT-6-MM 1.8
VMATINT-10 3 VMATINT-10-MM 3
VMATINT-15 4.5 VMATINT-15-MM 4.5
VMATINT-25 7.6 VMATINT-25-MM 7.6

PS2 KVM + RS232 Extender Modules to 183 Meters
Supported Features Local or Remote Rackmount Module or Desktop Unit NTI Part # Dimensions (mm)
PS2 KVM + RS232 Local Rackmount module ST-C5KVMRS-L-600M 36x173x89
PS2 KVM + RS232 Remote Rackmount module ST-C5KVMRS-R-600M 36x173x89
PS2 KVM + RS232 Remote Desktop unit ST-C5KVMRS-R-600 89x79x31

Cables to KVM from Local or Remote Rackmount Module
(male 26-PIN SCSI II to female 15-pin HD, two female 6-pin miniDIN, female 9-pin miniDIN)

Cables to Computer from Local Rackmount Module
(male 26-PIN SCSI II to male 15-pin HD, two male 6-pin miniDIN, male 9-pin miniDIN)
Part # Length (m) Part # Length (m)
VMRSTINT-3 0.9 VMRSTINT-3-MM 0.9
VMRSTINT-6 1.8 VMRSTINT-6-MM 1.8
VMRSTINT-10 3 VMRSTINT-10-MM 3
VMRSTINT-15 4.5 VMRSTINT-15-MM 4.5
VMRSTINT-25 7.6 VMRSTINT-25-MM 7.6

VGA Extender Modules to 183 Meters
Supported Features Local or Remote Rackmount Module or Desktop Unit NTI Part # Dimensions (mm)
VGA Local Rackmount module ST-C5V-L-600M 36x173x89
VGA Remote Rackmount module ST-C5V-R-600M 36x173x89
VGA Remote Desktop unit ST-C5V-R-600 89x79x31

Cables to Monitor from Local or Remote Rackmount Module
(male 26-PIN SCSI II to female 15-pin HD)

 Cables to Computer from Local Rackmount Module
(male 26-PIN SCSI II to male 15-pin HD)
Part # Length (m) Part # Length (m)
VTINT-3 0.9 VTINT-3-MM 0.9
VTINT-6 1.8 VTINT-6-MM 1.8
VTINT-10 3 VTINT-10-MM 3
VTINT-15 4.5 VTINT-15-MM 4.5
VTINT-25 7.6 VTINT-25-MM 7.6

VGA + Audio Extender Modules to 183 Meters
Supported Features Local or Remote Rackmount Module or Desktop Unit NTI Part # Dimensions (mm)
VGA + Audio Local Rackmount module ST-C5VA-L-600M 36x173x89
VGA + Audio Remote Rackmount module ST-C5VA-R-600M 36x173x89
VGA + Audio Remote Desktop unit ST-C5VA-R-600 89x79x31

Cables to Monitor from Local or Remote Rackmount Module
(male 26-PIN SCSI II to female 15-pin HD, female 3.5mm)

Cables to Computer from Local Rackmount Module
(male 26-PIN SCSI II to male 15-pin HD, male 3.5mm)
Part # Length (m) Part # Length (m)
VATINT-3 0.9 VATINT-3-MM 0.9
VATINT-6 1.8 VATINT-6-MM 1.8
VATINT-10 3 VATINT-10-MM 3
VATINT-15 4.5 VATINT-15-MM 4.5
VATINT-25 7.6 VATINT-25-MM 7.6

VGA + RS232 Extender Modules to 183 Meters
Supported Features Local or Remote Rackmount Module or Desktop Unit NTI Part # Dimensions (mm)
VGA + RS232 Local Rackmount module ST-C5VRS-L-600M 36x173x89
VGA + RS232 Remote Rackmount module ST-C5VRS-R-600M 36x173x89
VGA + RS232 Remote Desktop unit ST-C5VRS-R-600 89x79x31

Cables to Monitor from Local or Remote Rackmount Module (male 26-PIN SCSI II to female 15-pin HD, female 9-pin miniDIN)

Cables to Computer from Local Rackmount Module (male 26-PIN SCSI II to male 15-pin HD, male 9-pin miniDIN)
Part # Length (m) Part # Length (m)
VRSTINT-3 0.9 VRSTINT-3-MM 0.9
VRSTINT-6 1.8 VRSTINT-6-MM 1.8
VRSTINT-10 3 VRSTINT-10-MM 3
VRSTINT-15 4.5 VRSTINT-15-MM 4.5
VRSTINT-25 7.6 VRSTINT-25-MM 7.6
