Multiple HDMI Extender Modules in a Rack

NTI Part #: ST-C6RCK-12A-HDMI-Group

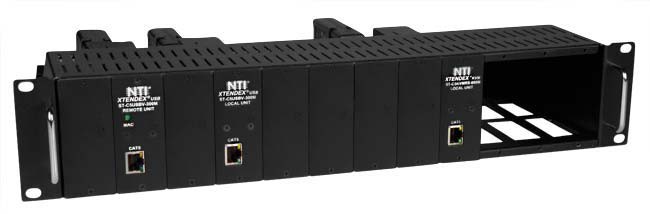

XTENDEX® ST-C6RCK-12A with ST-C6HDMI-LA-2L-300M Extender Modules (Front)
XTENDEX® ST-C6RCK-12A with ST-C6HDMI-LA-2L-300M Extender Modules (Front)

Additional Images

NTI Part #: ST-C6RCK-12A-HDMI-Group
The XTENDEX® Rackmount Extender Module Tray allows you to mount up to 12 HDMI extender modules in a space-saving 2RU shelf to extend up to 24 HDMI signals up to 300 feet away.
Also known as: Multiple HDMI extender, HDMI Audio Video extender, HDMI extension, Rackmount HDMI Extender, Rack mount HDMI Extension, CAT5 HDMI Extender Shelf, balun, HDMI range extender
Product Highlights
  • Extend 2 HDMI signals with 1 local module — connect up to 24 sources in 2RU tray
  • Local Access
  • IR Control
  • Designed and Manufactured in the U.S.A.
  • Multiple HDMI Extender Modules in a RackDigital Signage Product
Scroll Down to Request a Quote
The XTENDEX® Rackmount Extender Module Tray allows you to mount up to 12 extender modules in a space-saving 2RU shelf. The local extender modules and remote desktop units are interconnected via one CAT5e/6/7 cable.
  • Designed for use with NTI's HDMI rackmount transmitter modules.
  • Mount up to 12 modules in a single 2RU tray.
    • Up to 24 HDMI signals can be extended from one Rackmount Module Tray using 12 Dual HDMI Transmitter Modules.
    • Decreased downtime due to easy replacement of extender modules.
    • Single point of failure does not require sending all units back with the ST-C6RCK-12A Rackmount Module Tray.
    • Separate single unit (local and remote) pricing allows for affordable replacements to be kept on site in case of failure.
  • Local access — supports local and remote HDMI displays.
  • Optional Dual HDMI Transmitter Modules house two local units in a single case.
  • Extend each remote unit up to 300 feet (91 meters) over a single CAT5e/6/7 cable.
  • Cable/power supply management shelf included.
  • Ideal solution for fast-growing installations.
  • Includes eleven blank front panel covers.
    • Hides open slots on the tray.
    • Prevents change in airflow through rack cabinets.
  • Available extender modules (all models support IR control):
    • HDMI with local access to 1 HDMI source.
    • HDMI with local CEC support and local access to 1 HDMI source.
    • Dual HDMI with local access to 2 HDMI sources.
    • Dual HDMI with local CEC support and local access to 2 HDMI sources.
    • HDMI desktop remote unit with CEC support.
  • High quality, rugged steel construction with durable powder coat finish.
  • Only one power supply is necessary per local rackmount module to power both the local module and remote unit(s).

HDMI Extender Modules

  • Transmits a single HDMI signal over one CAT5e/6/7 cable.
  • Dual HDMI option includes two local units housed in a single case.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
  • HDMI features supported:
    • 12-bit Deep Color
    • x.v.Color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
    • Bandwidth up to 225 MHz (6.75 Gbps)
    • Optional CEC (Consumer Electronic Control) for local display
    • Standard CEC support for remote display
    • Lip Sync
  • HDCP compliant.
  • Supports Infrared Remote (IR) control.
    • Full IR control of HDMI source from remote HDTV using existing source remote control.
  • Additional HDMI Extender to 300 Feet (91 meters) Specifications
Cables
  • Use HDMI-xx-MM cable to connect an HDMI source or display.
  • Use DVI-HDMI-xx-MM cable to connect a DVI source or display.
  • Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
  • Cables not included.
Dimensions
  • WxDxH: 1.38x3.51x3.5 in (35x89x89 mm)
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
Regulatory Approvals
  • RoHS
Warranty
  • Two years

Rackmount Extender Module Tray

Dimensions
  • Rack shelf WxDxH: 19x14.71x3.5 in (483x374x89 mm)
  • Blank panel cover WxH (in): 1.38x3.5
Warranty
  • Two years.

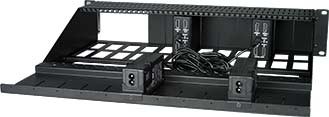

2RU Rackmount Extender Module Tray with Included Cable/Power Supply Management Shelf (Back)Optional Power Distribution Module

  • Power up to 12 Rackmount Extender Modules.
  • Outputs +24VDC.
Rackmount Extender Module Tray
  • Dimensions
    • Rack shelf WxDxH: 19x14.71x3.5 in (483x374x89 mm)
    • Blank panel cover WxH (in): 1.38x3.5
  • Warranty
    • Two years.
    2RU Rackmount Extender Module Tray with Included Cable/Power Supply Management Shelf (Back)
Optional Power Distribution Module
  • Power up to 12 Rackmount Extender Modules.
  • Outputs +24VDC.
Connectors
  • Local unit:
    • ST-C6HDMI-LA-L-300M, ST-C6HDMI-CLA-L-300M:
      • One female HDMI connector for source.
      • One female HDMI connector for local display access.
      • One female 3.5 mm port for IR emitter.
      • One female RJ45 port for sending/receiving high definition video/audio signals, IR signal, optional CEC signal, and DDC signal.
      • ST-C6HDMI-LA-2L-300M, ST-C6HDMI-CLA-2L-300M:
        • Two female HDMI connectors for two HDMI sources.
        • Two female HDMI connectors for two HDMI displays.
        • Two female 3.5 mm ports for IR emitter.
        • Two female RJ45 ports for sending/receiving high definition video/audio signals, IR signal, optional CEC signal, and DDC signal.
  • Remote unit:
    • ST-C6HDMI-IR-R-300:
      • One female HDMI connector for display.
      • One female 3.5 mm port for IR receiver.
      • One female RJ45 port for sending/receiving high definition video/audio signals, IR signal, CEC signal, and DDC signal.
    • Dual HDMI local units require two remote units.

Dual HDMI Transmitter Module ST-C5HDMI-LA-2L-300M (Front & Back)

Cable Distances and Resolutions
Cable Distances and Resolutions
Distances and Resolutions for CAT5e/CAT6 and CAT7 Cables
Cable Distance Maximum Standard Resolution
CAT5e Solid 100 feet (30 meters) 1080p/24Hz
1080i/60Hz/12-bit feet
720p/60Hz/12-bit feet
CAT5e Stranded UTP 100 feet (30 meters) 1080p/24Hz
1080i/60Hz/12-bit feet
720p/60Hz/12-bit feet
CAT6 Solid UTP 50 feet (15 meters) 1080p/60Hz/12-bit
1920x1200/60Hz/8-bit feet
75 feet (23 meters) 1080p/60Hz/10-bit
1080i/60Hz/12-bit feet
1920x1200/60Hz/8-bit feet
150 feet (46 meters) 1080p/60Hz/8-bit
1080i/60Hz/12-bit feet
200 feet (61 meters) 1080p/24Hz
1080i/60Hz/12-bit feet
720p/60Hz/12-bit feet
250 feet (76 meters) 1080p/24Hz
1080i/60Hz/8-bit feet
480p/60Hz/12-bit feet
300 feet (91 meters) 480p/60Hz/12-bit
800x600/75Hz/8-bit feet
CAT7 Solid STP 200 feet (61 meters) 1080p/60Hz/8-bit
1080i/60Hz/12-bit feet
279 feet (85 meters) 1080p/24Hz
1080i/60Hz/8-bit feet
480p/60Hz/12-bit feet

Diagrams

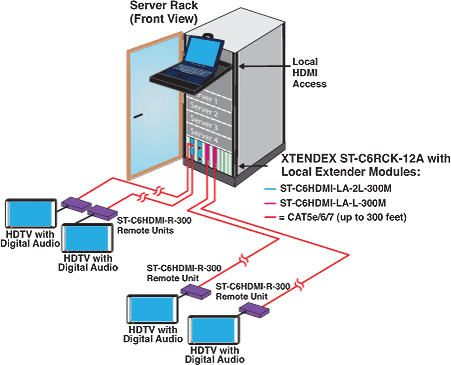

  • Mount up to 12 HDMI extender modules into a single 2RU rack tray
    Mount up to 12 HDMI extender modules into a single 2RU rack tray
Data Sheet:

(0)2RU Rackmount Extender Module Tray

NTI Part # Description Qty
ST-C6RCK-12A 2RU Rackmount Extender Module Tray
ST-C6PWR-RCK24 Power Distribution Module

(0)HDMI Extender Modules to 300 ft

NTI Part # Local or Remote Rackmount or Desktop Dimensions WxDxH (in.) Description Qty
ST-C6HDMI-LA-L-300M Local Rackmount Module 1.38x3.51x3.5 Local Access
ST-C6HDMI-CLA-L-300M Local Rackmount Module 1.38x3.51x3.5 CEC, Local Access
ST-C6HDMI-LA-2L-300M Local Rackmount Module 1.38x3.51x3.5 Local Access, Dual HDMI
ST-C6HDMI-CLA-2L-300M Local Rackmount Module 1.38x3.51x3.5 CEC, Local Access, Dual HDMI
ST-C6HDMI-IR-R-300 Remote Desktop Unit 2.54x3.09x1.08 Compatible with all local units
