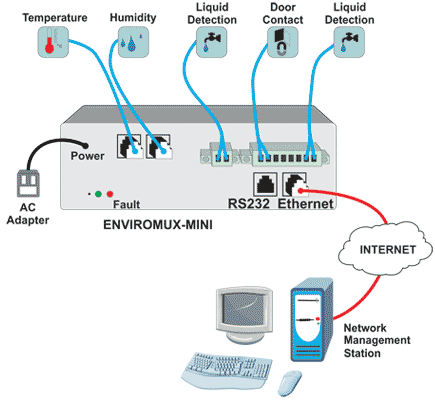

Temperature/Humidity Inputs

• Two female RJ45 connectors for connecting temperature sensors, humidity sensors and/or combined temperature/humidity sensors.

Water Detection Cable Input

• 1 screw terminal pair for connection liquid detection sensor.
• Output voltage: +5V DC.
• Current limited to 10mA
• Maximum contact resistance: 500K Ohm.

Dry Contact Closures

• Four screw terminal pairs for connecting dry contact devices.
• Potential-free.
• Output voltage: +5 V DC
• Current limited to 10 mA
• Maximum contact resistance: 10K Ohm

Ethernet Port

• One female RJ45 connector with LEDs.
• 10 BaseT Ethernet interface.

RS232 Port

• One female RJ45 connector.
• Supports 3-wire interface (Tx, Rx and GND)
• Used for flash upgrades (includes DB9F-RJ45F adapter).

Protocols

• HTTP, SNMP V1, SMTP, TCP/IP, UDP
• Operates and configures via SNMP or HTTP web page.
• Email alerts can be sent to three addresses.
• Generates SNMP, email log, and syslog messages.
• Four users can access the Web interface simultaneously.

Dimensions

• WxDxH (mm): 142x51x51

Environmental

• Operating temperature:
  • ENVIROMUX-MINI: 0°C to 38°C (32°F to 100°F).
  • ENVIROMUX-MINI-IND: 0°C to 75°C
    (32°F to 167°F).
• Storage temperature:
  • ENVIROMUX-MINI: -30°C to 60°C
    (-20°F to 140°F).
  • ENVIROMUX-MINI-IND: -30°C to 85°C
    (-20°F to 185°F).
• Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

• ENVIROMUX-MINI: CE, UL, RoHS
• ENVIROMUX-MINI-IND: CE, RoHS

Power

• 110 or 220 VAC at 50 or 60 Hz via AC adapter.
• Use the PWR-48V-5V1A DC-DC power converter to install the ENVIROMUX-MINI in a Telecom environment.

Warranty

• Two years

ENVIROMUX-MINI-D with optional DIN mounting

• Configuration can be done over the Internet/LAN via Web page.

Front Panel Interface

• LEDs indicate the following:
  • "Fault" (red) lights up if a sensor exceeds a configurable threshold
  • "Power" (green) lights up when the device is powered/all clear.

Web Interface (view product demo)

• Configure sensor's thresholds, alarm methods, formats of alerts, and system data log.
• View/edit sensors' current values, thresholds and alert statuses.
  • All sensors connected to the ENVIROMUX-MINI can be viewed on one summary page.
• View/edit entries stored in the system data log.
• The log can be downloaded as a tab-delimited plain text file.
• Configure IP information (address, subnet mask, default gateway, DNS, etc.), user administrative settings, and data logging settings.
• Up to four users can access the web page at one time.
