Wall Mount VGA+ Stereo Audio Extender

NTI Part #: ST-C5VA-WL500-Group

The XTENDEX® ST-C5VA-WL500 Wall Mount VGA Extender transmits VGA video and stereo audio up to 500 feet (152 meters) away from a computer using CAT5 cable. The local unit fits into a two-gang wall box, while the remote unit can be placed on a tabletop or mounted to a wall. Supports resolutions to 1920x1440.

Also known as: Wall mount VGA extender, cat5 monitor extender, remote VGA monitor, extend video 500 feet, balun, VGA CAT5 extender.

Designed and Manufactured in the U.S.A.
ROHS Compliant Wall Mount VGA+ Stereo Audio Extender
CE Compliant Wall Mount VGA+ Stereo Audio Extender

Scroll Down to Request a Quote

The XTENDEX™ ST-C5VA-WL500 Wall Mount VGA Extender transmits VGA video and stereo audio up to 500 feet (152 meters) away from a computer using CAT5 cable. Each video extender consists of a local unit that connects to a computer and also supplies video and audio to a local monitor and speakers, and a remote unit that connects to a monitor and speakers. The local unit fits into a two-gang wall box, while the remote unit can be placed on a tabletop or mounted to a wall.

Sharpest and clearest video quality over CAT5 of any manufacturer.
Supports local and remote VGA monitors and stereo audio speakers.
Mountable in walls, shelves, under a table or podium.
Saves power by switching to "sleep" mode when no video signal is available.
LED power indicator on front panel.
Built-in surge protection.
Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.

Local Unit

Host Connection
- Supports a PC, SUN, MAC with VGA video.
- Male 15-pin HD connector for computer connection.
- 3.5 mm stereo audio jack.
Local Access
- Crip and clear 1920x1440 video resolution.
- Female 15-pin HD connector for local VGA monitor.
- 3.5 mm stereo audio jack.

Remote Unit

Crisp and clear 1024x768 resolution at 500 feet (152 meters); higher resolution supported at shorter distances.
Female 15-pin HD connector.
3.5 mm stereo audio jack.
Flexible mounting; mounting tabs included.

Video Quality Adjustment

Video quality adjustment for different lengths of CAT5/5e/6 cable is done automatically.
Test Pattern for Cable Length

Power

Local unit: 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Remote unit: powered from the local unit.

Stereo Audio

Stereo audio can be heard both locally and remotely.
Line level output; supports multimedia speakers.
Frequency response: 20 Hz to 20 kHz, +/-1 dB.
Signal-to-Noise Ratio (SNR): 76 dBA.
Total Harmonic Distortion and Noise (THD+N): 0.017%.
Stereo crosstalk: -70dB.
Input impedance: 10k Ohms.

Regulatory Approvals

CE, RoHS

Dimensions

Local unit WxDxH: 4.5x1.4x4.5 in (114x36x114 mm)
- Standard two-gang wallplate.
Remote unit WxDxH: 3.5x3.1x1.2 in (89x79x30 mm)

Environmental

Operating temperature: 32 to 100°F (0 to 38°C).
Storage temperature: -20 to 140°F (-30 to 60°C).
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

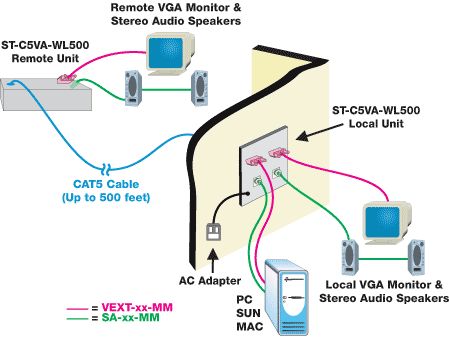

Application Drawings

Wall Mount VGA+ Stereo Audio Extender

User Manual:

ST-C5VA-WL500 Wall Mount VGA Video and Stereo Audio Extender 419 KB

Data Sheet:

Wall Mount VGA+ Stereo Audio Extender 248 KB

(0)Wall Mount VGA+ Stereo Audio Extender

NTI Part #	Supported Features	Qty
ST-C5VA-WL500	KVM, Audio
