S-Video Extender via CAT5

Extend a S-Video TV/Monitor up to 183 meters away from a S-Video device.

Also known as: S Video Extender, local s-video broadcaster, TV signal extender, monitor signal extender, audio/video extender,
A/V signal extension, TV/monitor extender, extend s-video signal over CAT5, local/remote video/audio signal extension.

Additional Product Information
View Data Sheet Data Sheet (PDF)
Extend S-Video signal

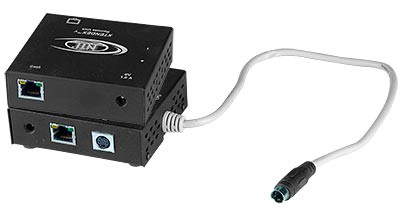

XTENDEX® ST-C5SV-600 (Remote and Local Units)		 Available option:
  • Audio

    RoHS Compliant S-Video Extender

    Designed and Manufactured in the U.S.A.
    		•

    Features & Applications

    The S-Video Extender transmits S-Video locally and remotely up to 183 meters away from a S-Video device using CAT5/5e/6 cable. Each video extender consists of a local unit connected to a S-Video device, and a remote unit connected to a monitor or TV.
    • Supports maximum 800x600 S-Video resolution.
    • Built-in suge protection.
    • Supports local and remote S-Video monitor/TV.
    • Available with optional stereo audio.
    • Use in-house CAT5/5e/6 phone wiring to locate a display remotely.

    Specifications

    Local Unit

    • Host Connection

      • Supports computers and video devices with S-Video output.
      • Male 4-pin miniDIN connector.
      • Optional stereo audio support - dual RCA audio plugs.

    • Local Access

      • Crisp and clear 800x600 video resolution.
      • Female 4-pin miniDIN connector for local monitor/TV.
      • Optional stereo audio support - 3.5mm stereo jack.

    Power

    • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
    • Power Consumption: 10W (each ­- local and remote unit)

    Cables

    • Use CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors.
    • Cables not included.

    Remote Unit

    • Crisp and clear 800x600 resolution at 163 meters.
    • Female 4-pin miniDIN connector.
    • Optional 3.5mm stereo audio connection.

    Video Quality Adjustment

    • Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender and automatically for the audio/video extender.
    • Push buttons on the side adjust video quality on the video-only units.
      • The setting is automatically saved to the unit. The next time the unit is powered the adjustment will be recalled.

    Environmental

    • Operating temperature: 0°C to 38°C (32°F to 100°F).
    • Storage temperature: -30°C to 60°C (-20°F to 140°F).
    • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

    Regulatory Approvals

    • CE, RoHS

    Warranty

    • Two years
    S-Video Extender Application Drawing

    Audio Option

    • Stereo audio can be heard both locally and remotely.
    • Frequency response: 20 Hz to 20 kHz, +/-1 dB.
    • Signal-to-Noise Ratio (SNR): 76 dBA.
    • Total Harmonic Distortion and Noise (THD+N): 0.017%.
    • Stereo crosstalk: -70 dB.
    • Input impedance: 10k Ohms.
    • Line level output; supports multimedia speakers.
    • Maximum I/O levels: 3.1Vp-p (line level).
    • Requires powered speakers.
    S-Video Extender with Audio Option
    Extender with audio option

    S-Video Extenders

    Supported
    Features    		 NTI Part # Local and Remote Unit
    Sizes WxDxH (mm)    		 Download a
    PDF Manual
    S-Video only ST-C5SV-600 89x79x30 Download the Manual
    S-Video + audio ST-C5SVA-600 89x79x30
