Audio/Video VGA Matrix Switch

Switch audio and video from many computers among multiple monitors and speakers.

Also known as: VEEMUX® audio / video matrix switch, video router, routing switcher,
video switcher, video port router, matrix switch, video matrices.

Additional Product Information

View Application Note Application Note: Display video from four computers simultaneously on multiple screens and switch the audio to different speakers.
Application Note Application Note: Local and Remote Audio/Video Presentation Display.
Application Note Application Note: Switch video from many DVD players and PCs among multiple VGA monitors
View Data Sheet Data Sheet (PDF)
View CAD Drawings CAD Drawings:
8X2 16X2 32X2
8X4 16X4 32X4
8X8 16X8 32X8
16X12 32X16
16X16

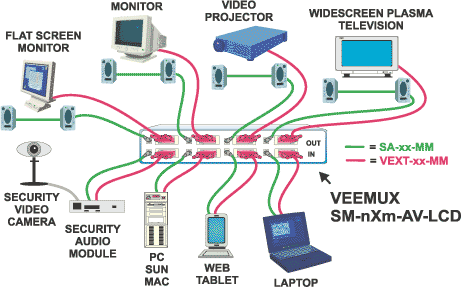

Switch audio and video from many computers among multiple monitors and speakers
zoom Click here to zoom in on image

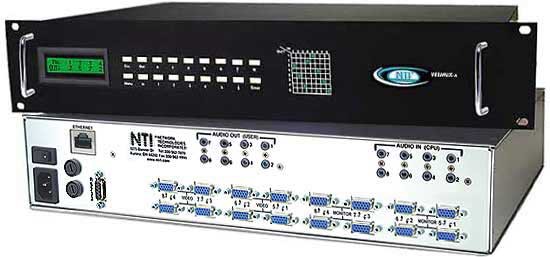

VEEMUX® SM-8X8-AV-LCD (Front & Back)

RoHS Compliant Audio/Video Matrix Switch

Designed and Manufactured in the U.S.A.

Features & Applications

The Audio/Video Matrix Switch routes audio and video input from many computers to multiple displays (projectors, monitors, etc.) and speakers. This switch can drive standard VGA cables, thus eliminating the need for external interfaces and coax cable connections via BNC connectors.

Signals from a range of input sources can be distributed to various output devices. A single computer video output can be routed to one or more monitors. Each video output is buffered from each input, ensuring signal integrity throughout the system. When switching ports, the audio automatically mutes until the video has been synchronized. The audio can also be muted on command.
  • Switch VGA video directly.
  • Each input can be independently connected to any or all outputs.
  • Video bandwidth is 200 MHz or greater.
  • Supports 1900x1200 video resolution at a refresh rate of 85 Hz.
  • Crestron® compatible.

The VEEMUX switch is the ideal solution for any application where information from many computers is being presented, such as:
  • Classrooms.
  • Boardrooms.
  • Trade shows.
  • Conference and entertainment facilities.
  • Courtrooms.
  • Command centers.
  • Control rooms.

Specifications

Video Input

  • Female 15-pin HD connector.
  • Impedance: 75 Ohms.

Video Output

  • Female 15-pin HD connector.
  • 1900x1200 video resolution with no degradation.
  • Impedance: 75 Ohms.
  • Bandwidth: 200 Mhz, fully loaded.

Audio Input

  • 3.5mm stereo audio jacks.
  • Impedance: 10k Ohm.
  • Maximum Input Level: 1 Vrms or 2.5Vp-p.

Audio Output

  • 3.5mm stereo audio jacks.
  • Drives 8-Ohm speakers.
  • Unbalanced Gain: user defined.
  • Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB.
  • Total Harmonic Distortion + Noise: 0.01% at 1kHz.
  • Gain Adjustment: -20 dB to +10 dB in 2 dB steps.
  • 200 mW RMS of continuous power per output.
  • When switching ports, audio mutes until video has been synchronized.

Cables

  • Interface cables between the computers and the switch are required for proper operation.
  • Recommended NTI video cables:
    • VGA interface cable (VEXT-xx-MM).
    • VGA to BNC cable (VINT-5B-6).
  • Recommended NTI audio cables:
    • SA-xx-MM.
  • Cables not included.

Power

  • 110 or 220 VAC at 50 or 60 Hz.
  • The smaller models use AC adapters as their power source.
  • Power consumption: 8x2: 10W, 8x4: 15W, 8x8: 20W, 16x2: 15W, 16x4: 15W, 16x8: 20W, 16x12: 25W, 16x16: 30W, 32x2: 20W, 32x4: 20W, 32x8: 25W, 32x16: 35W.

Environmental

  • Operating temperature: 0°C to 38°C (32°F to 100°F).
  • Storage temperature: -30°C to 60°C (-20°F to 140°F).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

  • CE, FCC, RoHS

Warranty

  • Two years
The SM-nXm-15V-LCD Video Matrix Switch allows you to connect multiple video sources (computers) to multiple destinations (projectors, monitors, etc.)

Control Methods

Front Panel Interface

  • Configuration and control can be done using the front panel buttons.
  • Keypad allows selection of the input source to be routed to the desired outputs.
  • LED Matrix Display visually shows which inputs are connected to which outputs. (Available on the 8x8, 16x8, 16x12, 16x16, 32x8 and 32x16 video matrix switches.)

RS232 Control

  • Configuration and control can be done through the serial port.
  • Baud rate: 1200 through 9600.
  • Address up to 15 units with one serial port.
  • Changes multiple input-to-output connections quickly and efficiently.

    Commands

    • CC - save connection configuration.
    • RC - recall connection configuration.
    • RV - read switch type and version.
    • CS - causes one INx/OUTx connection to occur.
    • CA - causes all inputs to connect to specified output.
    • RO - reads what input is connected to specified output.
    • RU - reads size of matrix, reports number of inputs and number of outputs on specified switch.
    • EA - set the IP address.
    • EM - set the IP mask.
    • EG - set the default gateway.
    • ET - set the webserver timeout.
    • GO - read the input connected to specified output (Not GUI compatible).
    • GM - read input connected to all outputs (Not GUI compatible).
    • SS - enables/disables port change auto status (Not GUI compatible).
Download Firmware

Ethernet

  • Female RJ45 connector.
  • 10/100 BaseT Ethernet interface.
  • Supported protocol: HTTP, HTTPS, Telnet.
  • Configuration and control can be done over the Internet via Web Server or Telnet.

    Web Server

    • Password (optional SSL encryption) and Administrator configurable timeout to ensure security.
    • Up to 25 users can be logged into the web page at one time.
    • Users and administrators can access the following pages:
      • Switch page - connect any input to any output, save and recall up to 10 connection configurations, force compensation on all ports. Ports can be listed in order by port name or port number.
      • Change Password page - administrator and users can change their password (passwords are between 5 and 16 characters long inclusive).
      • Help page - review documentation on the usage of the web interface.
      • Update Webserver page - restart the webserver to resynchronize all settings with the Veemux proper.
      • Logout page - view currently active users and logout of the web interface.
    • The Administrator can access the following Administrative only pages:
      • Web Setup page - configure IP address, subnet mask and timeout.
      • Serial Setup page - configure serial speed and serial settings.
      • Ports Settings page - change port names.
      • Update Firmware page - load firmware updates to the webmux product.

    Telnet

    • Security is ensured by the Administrative password.
    • Commands are similar to RS232 commands.

Audio/Video Matrix Switches

NTI Part # Audio/Video
Inputs		 Audio/Video
Outputs		 Rack
Units		 Rack Size
WxDxH (mm)		 Download a
PDF Manual
SM-8X2-AV-LCD822RU 482x254x89 Download the Manual
SM-8X4-AV-LCD842RU 482x254x89
SM-8X8-AV-LCD882RU 482x305x89
SM-16X2-AV-LCD1622RU 482x254x89
SM-16X4-AV-LCD1642RU 482x254x89
SM-16X8-AV-LCD1683RU 482x305x133
SM-16X12-AV-LCD16123RU 482x305x133
SM-16X16-AV-LCD16163RU 482x305x133
SM-32X2-AV-LCD3224RU 482x305x178
SM-32X4-AV-LCD3244RU 482x305x178
SM-32X8-AV-LCD284RU 482x305x178
SM-32X16-AV-LCD32164RU 482x305x178
Male VGA to BNC Video
Male VGA to BNC Video Male to Male VGA
Male to Male VGA Male to Male Stereo Audio
Male to Male Stereo Audio

Compatible Cables

Male to Male VGA

Part # Length
(m)		 Part # Length
(m)
VEXT-3-MM 0.9 VEXT-35-MM 10
VEXT-6-MM 1.8 VEXT-50-MM 15
VEXT-10-MM 3 VEXT-75-MM 23
VEXT-15-MM 4.5 VEXT-100-MM 30
VEXT-25-MM 7.6

Male to Male Stereo Audio

Part # Length
(m)		 Part # Length
(m)
SA-3-MM 0.9 SA-25-MM 7.6
SA-6-MM 1.8 SA-35-MM 10
SA-10-MM 3 SA-50-MM 15
SA-15-MM 4.5 SA-100-MM 30

Male to Female VGA

Part # Length
(m)		 Part # Length
(m)
VEXT-3 0.9 VEXT-35 10
VEXT-6 1.8 VEXT-50 15
VEXT-10 3 VEXT-75 23
VEXT-15 4.5 VEXT-100 30
VEXT-25 7.6

Male VGA to BNC Video
VINT-5B-66
